Climax Metal

B07DK749T2

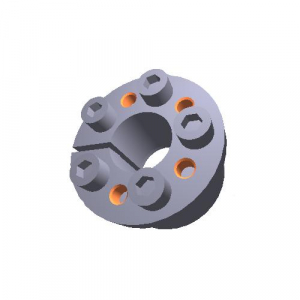

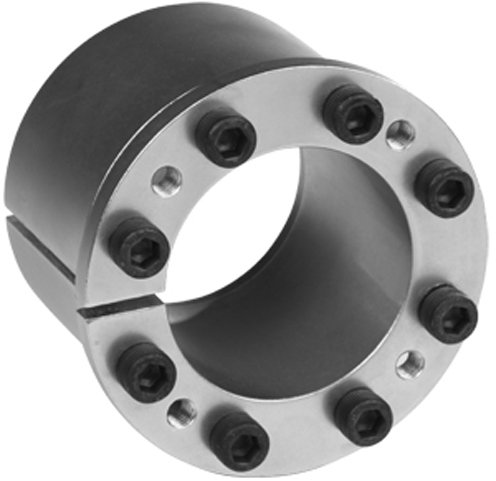

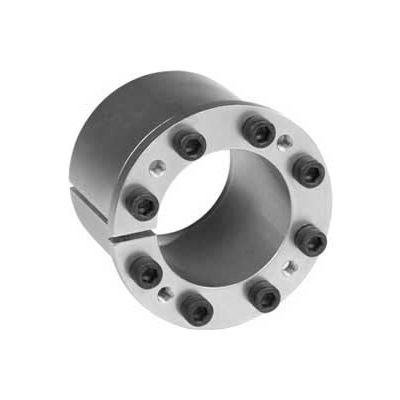

Climax Metal Products C192E-087 - Keyless Locking Assemblies - .8750 in Bore, 1.7500 in OD, 1.3460 in Length, Steel

Climax Metal Products C192E-087 - Keyless Locking Assemblies - .8750 in Bore, 1.7500 in OD, 1.3460 in Length, Steelzoom

Attributes

Key Value
Bolt SizeM6 x 20
BRANDClimax Metal
CONSTRUCTIONClimax Metal
D1.750 in
d0.875 in
D11.969 in
DIAGRAM DIMENSION d INC.0.875
DIMENSION D INCHES1.75
DIMENSION D1 INCHES1.969
DIMENSION L INCHES0.677
DIMENSION L1 INCHES0.875
DIMENSION L2 INCHES1.11
DIMENSION L3 INCHES1.346
DN2.168
FAX (LBS.F)6,839
For Bore Diameter7/8 in
For Shaft Dia. - Bushin.7/8 in
Hub Contact Pressure (P.9,489
Hub Machining Tolerance?.003 in
ItemKeyless Bushing
Keyless Bushing SeriesC192
Keyless Bushing TypeMulti-Screw Locking Ass.
L0.677 in
L10.875 in
L21.110 in
L31.346 in
Locking Bolt Quantity5
LOCKING SCREW SIZEM6 x 20
LOCKING SCREWS MA (FT-L.150
LOCKING SCREWS QUANTITY5
Locking Screws Quantity5
Locking Screws SizeM6 x 20
MANUFACTURERS PART NUMB.C192E-087
MaterialSteel
Material - BushingsSteel
MT (FT-LBS)3,204
Outside Dia.1.75 in
Outside Dia. (In.)1.75
Outside Dia. Tolerance+/-0.003
Outside Diameter1 3/4 in
Outside Diameter Tolera.+/-0.003
Overall Length1.346 in
Overall Length (In.)1.346
Overall Width1.346 in
PH (PSI)9,489
PS (PSI)17,714
Screw Thread SizeM6 x 20
SERIESC192
Shaft Dia. (In.)0.875
Shaft Dia. Tolerance+/-0.003
SHAFT LENGTH INCHES7/8
Shaft Machining Toleran.?.003 in
Shaft Size7/8 in
Transmissible Thrust (L.6,839
Transmissible Torque2,992 ft-lb
TypeFlanged, C192 Series
Weight0.44 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG688881357.9913Climax Metal Products0.557.99 @ 3
thumbzoomGlobal IndustrialWBB98475363.9513Climax Metal63.95 @ 3
thumbzoomsustainablesupply.comC164790674.0813Climax Metal Products0.574.08 @ 3
thumbzoomMRO Supply205740878.013Climax Metal78.0 @ 3
thumbzoomusmegastore.comC192E-08785.0413Climax Metal0.4485.04 @ 3
thumbzoomMegadepotC192E-08785.0413Climax Metal0.4485.04 @ 3
thumbzoomheavydutydepot.comC192E-08785.4323Climax Metal85.43 @ 3
thumbzoombscsource.comC192E08797.2913Climax Metal Products97.29 @ 3
thumbzoomRaptor SuppliesAC7FJR124.863862513CLIMAX METAL PRODUCTS124.8638625 @ 3
thumbzoomNational Supply Network77957686145.8113Climax Metal Products145.81 @ 3
motionindustries.com06707785187.713Climax Metal Products187.7 @ 3
thumbzoomMisumi USAC192E-087190.891317Climax Metal Products190.89 @ 3
