Climax Metal

B07DK6HM7Y

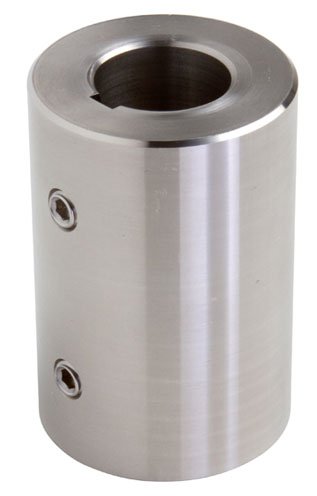

Climax Metal Products RC-037-S-KW - Set Screw Coupling w/Keyway RC-Series - Stainless Steel - ASTM A582, Plain, Bore - Side 1: .3750 in, Bore - Side 2 .3750 in.7500 in OD, Keyway - Side

Climax Metal Products RC-037-S-KW - Set Screw Coupling w/Keyway RC-Series - Stainless Steel - ASTM A582, Plain, Bore - Side 1: .3750 in, Bore - Side 2 .3750 in.7500 in OD, Keyway - Sidezoom

Attributes

Key Value
ApplicationFor Applications where .
Bore Dia.3/8 in
Clearance Dia.0.75 in
Clearance Dia. (In.)3/4
DesignLocks Securely to Shaft.
FinishPlain
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Keyway Width3/32 in
Keyway Width (In.)3/32
Machined FromBar Stock
MaterialStainless Steel
Material - CouplingsStainless Steel
Max. RPM3,500 RPM
Max. Torque103 in-lb
Max. Torque (In.-Lbs.)103
Outside Dia.3/4 in
Overall Length1 in
Screw Size1/4"-20
Screw Size (In.)1/4-20 x 3/16
Shaft Locking Type - Co.1 Piece Set Screw
System of MeasurementInch
TypeOne Piece Set Screw, wi.
With Keyway / Without K.With Keyway
