P30-8M-30-QT

B01E5TTN9K

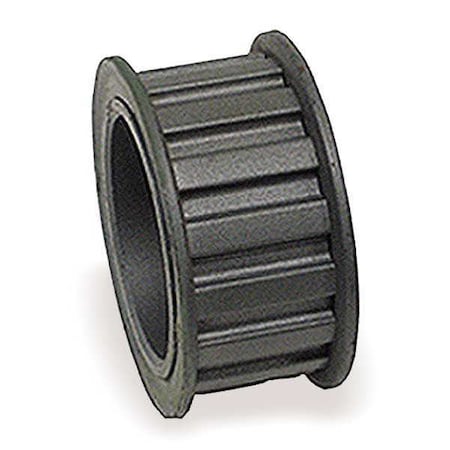

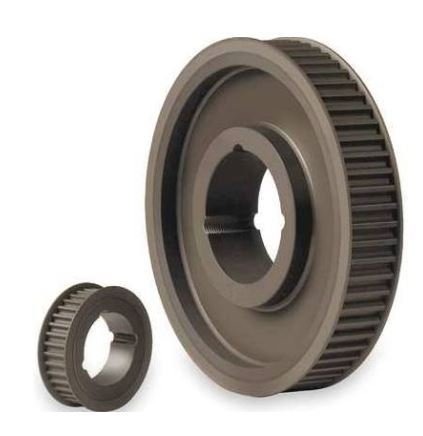

(1) Continental ContiTech P30-8M-30-QT SPROCKET UPC: 37256314186

(1) Continental ContiTech P30-8M-30-QT SPROCKET UPC: 37256314186zoom

Attributes

Key Value
Agency Compliance-
Application-
Bore Dia. (In.)1.5
Bore Dia. (mm)0.500
Bore TypeBushed
Bore Type - Timing Belt.Bushed
BrandContinental
Bushing RequiredQT or H
Bushing Required - Timi.H, QT
Construction-
Country of Origin (subj.United States
Current Stock3
Dimension F (In.)-
Dimension H (In.)-
Dimension L (In.)-
Dimension P (In.)-
FeaturesPositive Drive-Tooth
Flange Dia.85.09 mm
Flange Dia. (In.)3.350
Flange Dia. (mm)85.090
FlangedYes
For Belt SeriesHawk Pd
For Belt Width30 mm
For Bushing SizeH, QT
For Timing Belt Width30 mm
For Use With30mm Hawk/Dual Belt, 30.
Gearbelt Series - Timin.Hawk Pd
Includes-
International ShippingNo
ItemPulley
Item - Timing Belt Pull.Industrial Timing Belt .
Keyway-
MaterialCast Iron
Material - Timing Belt .Cast Iron
Material FabricationCast
Max. Bore (In.)38
Max. Bore (mm)12.7
Max. Bore Dia. - Timing.12.7 mm
Maximum Bore Diameter12.7 mm
MpnP30-8M-30-QT
Number of Grooves30
Number of Grooves - Tim.30
Number of Teeth30
Outside Dia. (In.)2.958
Outside Dia. (mm)75.130
Outside Dia. - Timing B.75.13 mm
Outside Diameter75.13 mm
Overall Width47.6 mm
Pitch8 mm
Pitch (In.)0.315
Pitch (mm)76.390
Pitch - Timing Belt Pul.8 mm
Pitch Dia. (In.)3.008
Pitch Dia. (mm)76.390
Pitch Dia. - Timing Bel.76.39 mm
Pitch Diameter76.39 mm
Setscrew-
SKUZO-G1291717
SubCategoryPower Transmission
TypeHawk Pd, Dual Hi-Perfor.
Weight1.7 lb
Width (In.)1.875
Width (mm)47.625
Width - Timing Belt Pul.47.6 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1291717103.131In StockContinental1.75103.13 @ 1
thumbzoomsimsupply.comZO-G1291717129.0913Continental129.09 @ 1
thumbzoomsustainablesupply.comC1674780135.171In StockContinental1.75135.17 @ 1
grainger.caWWG2UWN5158.066030681In StockCONTINENTAL CONTITECH1.75158.06603068 @ 1
