| ADA Approved | False |
| ANSI Function | F109 - Entry/Office |
| Backset | 2-3/4", 1-1/8" x 2-1/4", Square Corner |
| Base Material | Brass or Bronze |
| Bolt Protection | 1/2" |
| Bore Size | 2.1250 |
| Case Height | 10.5" |
| Case Length | 15.5" |
| Case Volume | 2359.875 |
| Case Width | 14.5" |
| Color Code | 626/US26D |
| Cylinder Type | Conventional Less Cylinder |
| Design | Newport Lever and D Rose |
| Door Thickness | 1-3/8" - 1-7/8" |
| Finish, Finish Description | Satin Chrome |
| Fire Rated | 3 Hours {A} |
| Function | 51-Entrance |
| Grade | ANSI/BHMA Grade 2 |
| Hand | Not Handed |
| Latch Backset Dim | 2-3/4" |
| Latch Number | 600F04 |
| Latch Type | Dead Latch (Guarded) |
| Lever Length | 4.5000 |
| Lever Style | NZD-Newport |
| Lever/Knob Design | NZ - Newport |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Package Height | 4.5" |
| Package Length | 10" |
| Package Qty | 1 |
| Package Volume | 337.5 |
| Package Width | 7.5" |

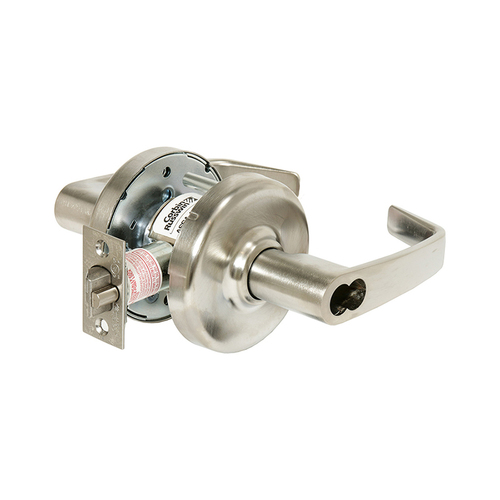

| Product Type | Cylindrical Lock |
| Projection | 2.8125 |
| Rose/Escutcheon Design | D - Rose |
| Rose/Escutcheon Trim | Round Rose |
| Screws | Combination |
| Special Marks | Fire rated 3 Hours {A} |
| Strike | ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner |
| Strike Height | 4-7/8" |
| Strike Number | SA114 |
| Strike Type | ASA |
| Strike Width | 1-1/4" |
| Thickness | 1-3/8" - 1-3/4" |
