COSEL MMC50A-2-N

B00DWHZ17K

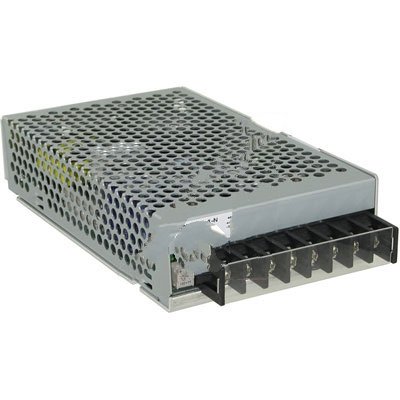

Cosel MMC50A-2-N Power Supply 85 to 132 VAC/110 to 170 VDC Multiple 5 V 15 V -15 V 5 A

Cosel MMC50A-2-N Power Supply 85 to 132 VAC/110 to 170 VDC Multiple 5 V 15 V -15 V 5 Azoom

Attributes

Key Value
Alternate Part No.436-MMC50A-2-N
BrandCosel
Commercial/MedicalCommercial
ConfigurationEnclosed
Dimensions155 mm L x 36 mm W
Efficiency70% (Typ.)
Height93 mm
Input Current1.5 A (Typ.)
Input Frequency47 Hz to 440 Hz
Input Voltage100 VAC ; 110 VAC ; 115.
Input Voltage Range85-132 VAC
Isolation Voltage2 kV
Length155 mm
Line Regulation20 mV (Max.)
Load Regulation40 mV (Max.)
ManufacturerCosel
Manufacturer Part No.MMC50A-2-N
Mounting StyleChassis
Mounting TypePanel Mount
Number of Outputs3 Output
Open Frame/EnclosedEnclosed
OperationSwitching
Output 1 Voltage5 V
Output 2 Voltage15 V
Output 3 Voltage-15 V
Output Current5A@5V, 1.2A@15V, 0.5A@-.
Output Current-Channel 15 A
Output Current-Channel 21.2 A
Output Current-Channel 3500 mA
Output Power51 W
Output Power Rating50 W
Output TypeMultiple
Output Voltage5 VDC, 15 VDC, -15 VDC
Output Voltage-Channel 15 V
Output Voltage-Channel 215 V
Output Voltage-Channel 3- 15 V
Power Rating50 W
Primary TypeAC-DC
ProductSwitching Supplies
Product CategorySwitching Power Supplies
Product HeaderMMC Series Unit Type Po.
SeriesMM, MMC Series
Special Features2 Year Warranty ; Inrus.
StandardsUL Recognized
TypeEmbedded, VAC/DC Power .
Width36 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com70161532137.291In StockCosel U.S.A. Inc.137.29 @ 1
thumbzoomswatee.comMMC50A-2-N248.2711Cosel248.27 @ 1
