Scales Plus offers free product support from experienced technicians. Have questions about the Coti Global CG-16 SSW? Contact us for free product support!
Attributes
| Key ^ | Value |
|---|---|
| Approvals | FM |
| Cable Color Code | Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal |
| Cable Length | 50 ft |
| Capacity | 25K |
| Compensated Temperature Range | -10??C to 40??C |
| Construction | Stainless Steel |
| Creep (30) Minutes, Hysteresis | +/- 0.02% full scale |
| Full Scale Output | 3 mV/V |
| Height | 1.94" |
| Hole Threading | 1/4-18 NPT |
| Input Resistance | 700 +/- 10 ohms |
| Insulation Resistance | 5000 megohms |
| IP Rating | IP67 |
| Length | 8.75" |
| Manufacturer | Coti Global Sensors |

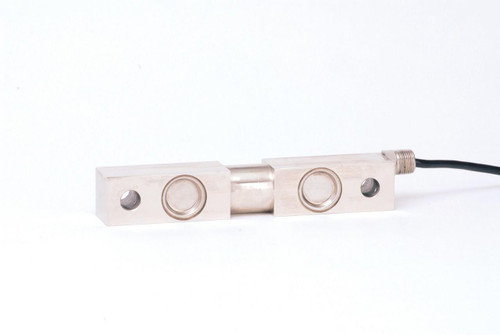

| Model | CG-16 SSW |
| Nonlinearity | +/- 0.03% full scale |
| Operating Temperature Range | -20??C to 60??C |
| Output Resistance | 700 +/- 5 ohms |
| Part Number | CG-16 SSW 25K |
| Rated Excitation | 10V AC/DC (maximum of 20 V) |
| Repeatability | +/- 0.01% full scale |
| Safe Overload | 150% capacity |
| Seal Type | Welded Seal |
| Temperature Effect on Output | +/- 0.0015% of applied load /?C |
| Temperature Effect on Zero | +/- 0.0027% of rated output /?C |
| Width | 1.44" |
| Zero Balance | +/- 1.00% full scale |
