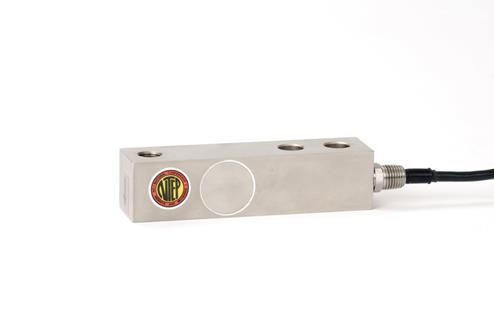

Have questions about the Coti Global CG-23-SS-1 ? Contact the trained experts at Scales Plus for all your product support needs!
Attributes
| Key | Value |
|---|---|
| Approvals | cFM, CE |
| Cable Color Code | Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal |
| Cable Length | 20 ft |
| Capacity | 15,000 lb |
| Compensated Temperature Range | -10??C to 40??C |
| Construction | Stainless steel |
| Creep (30) Minutes | +/- 0.02% full scale |
| Full Scale Output | 3 mV/V |
| Height | 2" |
| Hole | 1.03" |
| Hysteresis | 0.02 % full scale |
| Input Resistance | 385 +/- 10 ohms |
| Insulation Resistance | 5000 megohms |
| Interchangeable Products | Artech 30210 |
| IP Rating | IP67 |
| Length | 8.88" |
| Manufacturer | Coti Global Sensors |
| Model | CG-23-SS-1 |
| Nonlinearity | 0.03 % full scale |
| NTEP | Yes |
| Operating Temperature Range | -20??C to 60??C |
| Output Resistance | 350 +/- 3 ohms |
| Part Number | CG-23-SS-1-15K |
| Rated Excitation | 10 VDC (maximum of 20 V) |
| Repeatability | +/- 0.01% full scale |
| Safe Overload | 150% capacity |
| Seal Type | Environmentally Sealed |
| Temperature Effect on Output | +/- 0.0015% of rated output /?C |
| Temperature Effect on Zero | +/- 0.0027% of rated output /?C |
| Width | 2" |
| Zero Balance | +/- 1.00% full scale |
