CR Laurence PHE2LPS
CR Laurencezoom
manufacturer:
Description:

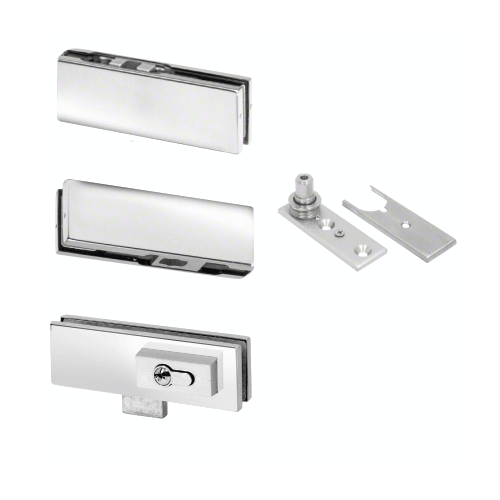

<br/><b>CRL PHE2 European Patch Door Kits</b> come with all the hardware to complete a single door (except the overhead closer and glass). Pivot setback is 2-9/16" (65 mm). The Top Patch Fitting (PH21C) is adjustable after the door is installed. Overhead door closer must be ordered separately. <br/><b>Kit Contains:</b><br/><li>1 - PH21C Adjustable Top Door Patch<br/></li><li>1 - PH11C Bottom Door Patch<br/></li><li>1 - 1NT403 Bottom Pivot<br/></li><li>Gaskets for 3/8" or 1/2" (10 mm or 12 mm) tempered glass. (Holes and notches are required in the glass.)<br/> Kits with lock also come with one each Cat. No. EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately. <br/><b>NOTE</b> For maximum door sizes when using this product, CRL follows GANA Guidelines.<br/><p>.</p><b>Stainless Steel Advisory:</b> Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.</li>

Attributes

Key ^Value
ConfigurationSingle
Door TypeF Style Glass Door
FinishPolished Stainless
Finish/ColorPolished Stainless Steel
Glazing Thickness3/8, 1/2
LockWith Lock
Pivot Backset (Inches)2 9/16
