brand:
manufacturer:
Description:

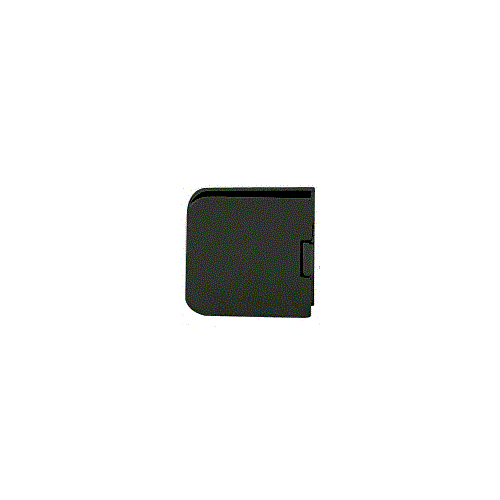

<br/><b>CRL Junior Traditional Style Fixed Panel U-Clamp</b> mounts directly to the wall, ceiling or floor to secure vertical fixed glass panels. The corners are rounded off. Clearance between the glass and wall is from 5/32" to 3/16" (4 to 5 mm). Clear Silicone can be used to provide a clean, water resistant seal.<br/><b>SPECIFICATIONS:</b><br/><b>Glass Thickness:</b> 1/4" (6 mm)<br/><b>Material:</b> Solid Brass<br/><b>Includes:</b> Mounting Screw and Clear Gaskets<br/><b>Hole Diameter Required:</b> 5/8" or 3/4" (16 or 19 mm)<br/><p>.</p>
Attributes
| Key ^ | Value |
|---|---|
| Clearance Gap | 5/32" to 3/16" (4 to 5 mm) |
| Finish, Finish/Color | Oil Rubbed Bronze |
| Glazing Thickness | 1/4 |
| Height (Inches), Width (Inches) | 1-3/4 |
| Height, Width | 1-3/4" (44.5 mm) |
| Hole Diameter Required | 5/8" or 3/4" (16 or 19 mm) |
| Material | Brass |
| Mounting Style, Mounting Type | Wall Mount |
| Size | 1-3/4" (44 mm) Wide x 1-3/4" (44 mm) High |
