mpn:
brand:
manufacturer:
MPN:
Description:

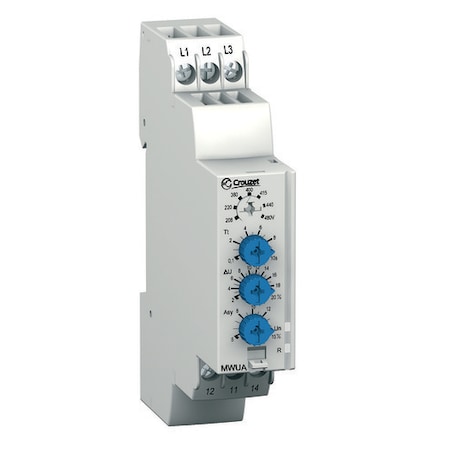

CROUZET 84873025 | Module: voltage monitoring relay; for DIN rail mountin
Weight:
0.17
Weight:
0.0140625 LB
Preferred Price:
243.9
Price:
243.9
Min Simple Price:
137.8
Absolute Min Price:
195.67
Min Price:
195.67
qty:
21
simpleSku:
MTUwMQ:::84873025
sku:
MTUwMQ::RY:84873025@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
crouzet automation
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Approvals | CSA, UL |
| Body dimensions | 92.6x17.5x65.5mm |
| Category | Industrial Automation and Controls |
| Circuit | SPDT (1 Form C) |
| Contact actuation delay | 0.1...10s |
| Contact Failure Detect, Current Unbalance Detect, Over Current Detect, Rapid Cycling Detect, Under Current Detect, Var Restart Delay | No |
| Contact Form, Kind of output 1, Output Relay | SPDT |
| Contact Rating @ Voltage | 5A @ 250VAC |
| Controlled parameter | three-phase systems, phases unbalance, phase sequence, phase loss, |
| Current Rating, Current Supported | 5 A |
| Delay Time | 0.1 Sec ~ 10 Sec |
| Description | RELAY MONITOR 3PHASE 208-480V |
| Detailed Description | Phase Loss, Phase Sequence 208 ~ 480VAC |
| Digi-Key Part Number | 646-1137-ND |
| Family Series | Crouzet Protection Relays, MW Series |
| Function | Phase Monitor |
| Gross Weight | 0.225 lbs |
| Hi Pwr (Over Vltg) Trip, Lo Pwr (Under Vltg) Trip, Phase Loss Detect, Variable Point Trip, Voltage Unbalance Detect | Yes |
| Item Number, Manufacturer Part Number, Manufacturer Product Number | 84873025 |
| Leads | screw terminals |
| Manufacturer Standard Lead Time | 3 Weeks |
| Manufacturer, Mfr | CROUZET |
| Mounting | for DIN rail mounting |
| Mounting Type | DIN Rail Mount |
| Mounting, Mounting Type | DIN Rail |
| Net Weight | 0.22 lbs |
| Number of Phases | 3 |
| Operating Temperature | -20?C ~ 50?C |
| Operating temperature | -20...50?C |
| Output 1 electrical parameters | 250V AC / 5A |
| Output Type | Relay |
| Package | Bulk |
| Primary Type | Monitoring Relays |
| Product Series | MW |
| Product Status | Active |
| Restart Delay (Sec) | 1.5 s |
| Series | C-Lynx, MWUA Series |
| Supply Voltage | 480 VAC |
| Termination | Screw |
| Three-phase power supply voltages range | 3 x 208...480V AC |
| Time Delay Trip (Sec) | 0.1-10 s |
| Trip Range | 183 ~ 528V AC |
| Trip Status | Energized High |
| Type | Phase Loss, Phase Sequence |
| Type of Display | LED Status Indicator |
| Type of module | voltage monitoring relay |
| Voltage - Supply | 208 ~ 480VAC |
| Voltage Rating | 250 V |
| Voltage Supported | 208-480 V |
| Voltage Unbalance % | 5-15 % |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 84873025 | 137.8 | 137.8 | 1 | 5 | Crouzet Control | 137.8 @ Qty: 1+ | |||
| Carlton-Bates | 78033396685 | 172.37 | 172.37 | 1 | In Stock | Crydom | 172.37 @ Qty: 1+ | |||
 | Galco | 84873025-CROU | 198.91 | 198.91 | 1 | In Stock | Crouzet | 0.225 | 198.91 @ Qty: 1+ | |
| RS Delivers | 262-025 | 204.6 | 204.6 | 1 | In Stock | Crouzet | 204.6 @ Qty: 1+ | |||
 | Newark | 86K0444 | 206.48 | 206.48 | 1 | In Stock | Crouzet | 206.48 @ Qty: 1+ | ||
 | Digi-Key | 1788717 | 208.54 | 208.54 | 1 | In Stock | Crouzet | 208.54 @ Qty: 1+ | ||
| us.rs-online.com | 70523682 | 212.25 | 212.25 | 1 | 27 | Crouzet | 212.25 @ Qty: 1+ | |||
 | Zoro | G3653786 | 261.01 | 261.01 | 1 | In Stock | Crouzet | 261.01 @ Qty: 1+ |
