Description:

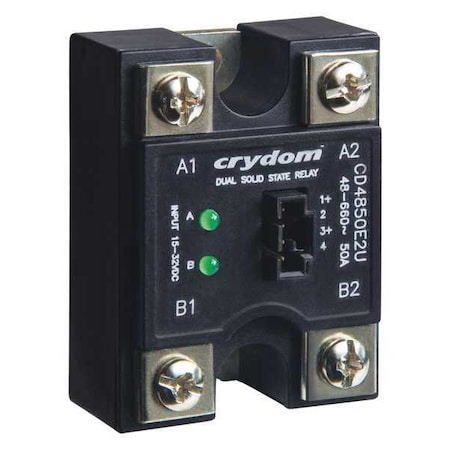

Dual Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 10 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 50 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards UL 508, Switch Component Type SCR, Current Type AC, Finger Safe No, Mounting Style Panel, Switch Configuration Form A, Voltage Type AC Output, Body Depth 0.8 in, Body Height 0.79 in
Weight:
0.028125
Weight:
0.044 LB
Preferred Price:
179.11
Price:
179.11
Min Simple Price:
101.25
Absolute Min Price:
143.66
Min Price:
143.66
Dimensions:
[7.0, 5.0, 5.0]
qty:
21
simpleSku:
NTUyNg:::CD2450W2V
sku:
NTUyNg::V8:CD2450W2V@y0
condition:
11
seller:
sustainablesupply.com
amzMan:
crydom
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Auxiliary Switch, MOV, Snubber | No |
| Body Depth | 0.8 in |
| Body Depth - Relay | 1.8 in |
| Body Height | 0.79 in |
| Body Height - Relay, Overall Height - Relay | 1.15 in |
| Body Width | 2.3 in |
| Body Width - Relay | 2.64 in |
| Contact Form - Relay | (2) SPST-NO |
| Current Rating, Max. Output Amps w/Heat Sink | 50 A |
| Family Series | Crydom Relays, Evolution Dual Series |
| Gross Weight | 0 lbs |
| Heat Sink | Not Included |
| Input or Control Voltage, Input Voltage | 4 to 32V DC |
| Input Polarity | AC/DC |
| Input Power Consumption (Burden) | 0.1W |
| Input Signal | 4-32 VDC |
| Integral Heat Sink, Status Indicator | Yes |
| Item Number, Manufacturer Part Number | CD2450W2V |
| Item, Item - Relay | Dual Solid State Relay |
| Manufacturer | Crydom |
| Max. Output w/Heat Sink | 50A |
| Mounting | Panel |
| Mounting - Relay | Surface |
| Net Weight | 0.19 lbs |
| Nominal Output Voltage | 12 VAC, 208 VAC, 277 VAC, 48 VAC, 120 VAC, 240 VAC, 24 VAC |
| Output or Controlled Voltage Range | 24 to 280V AC |
| Output Voltage | 24-280 VAC |
| Overall Depth | 1.43 in |
| Product Series | Evolution Dual |
| Relay Turns On At | Zero Crossing |
| Standards | UL 508 |
| Switch Type | SCR |
| Termination | Screw Terminal |
| Transient Overvoltage | 600 V |
| Turns On At | Zero Cross |
| Voltage Output | 24 to 280VAC |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | sustainablesupply.com | C2877804 | 101.25 | 3078.0 | 1 | 50 | Crydom | 0.45 | 101.25 @ Qty: 50+ | |
 | Galco | CD2450W2V-CRDM | 114.02 | 3466.208 | 1 | 50 | Crydom | 0.19 | 114.02 @ Qty: 50+ | |
 | Raptor Supplies | AF7JWP | 171.4126635 | 5210.9449704 | 1 | 50 | CRYDOM | 171.4126635 @ Qty: 50+ | ||
 | Radwell | CD2450W2V | 171.93 | 5845.62 | 10 | 50 | CRYDOM | 171.93 @ Qty: 50+ | ||
 | Zoro | G4476455 | 1989.0 | 60465.6 | 1 | 50 | Crydom | 0.45 | 1989.0 @ Qty: 50+ |
