Crydom D53TP50D-10

B00FD6U3M6

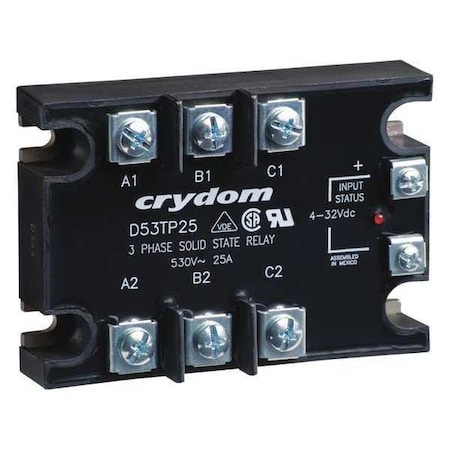

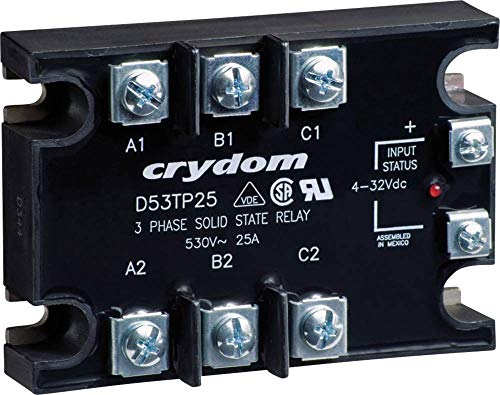

Solid State Relay, SPST-NO, 50 A, 530 Vrms, Panel, Screw, Random Turn On

Solid State Relay, SPST-NO, 50 A, 530 Vrms, Panel, Screw, Random Turn Onzoom

Attributes

Key Value
Auxiliary SwitchNo
Body Depth1.45 in
Body Depth - Relay2.89 in
Body Height3.2 in
Body Height - Relay0.79 in
Body Width4.09 in
Body Width - Relay4.09 in
BrandCrydom
Circuit1NO
Contact Form - Relay(3) SPST-NO
Current Rating50 A
Current Stock22
Family SeriesCrydom Relays, 53TP Ser.
Finger SafeYes
Gross Weight0 lbs
Heat SinkNot Included
Input or Control Voltage4 to 32V DC
Input or Control Voltag.4 to 32VDC
Input PolarityDC
Input Power Consumption.0.3W
Input Signal4-32 VDC
Input Voltage4 to 32V DC
Integral Heat SinkNo
International ShippingNo
ItemSolid State Relay
Item - RelaySolid State Relay
Item NumberD53TP50D-10
Lead TimeExpected to ship in 1-2.
ManufacturerCrydom
Manufacturer Part NumberD53TP50D-10
Max. Output Amps w/Heat.50 A
MountingSurface
Mounting - RelaySurface
MOVNo
MpnD53TP50D-10
Net Weight0.64 lbs
Nominal Output Voltage208 VAC, 277 VAC, 347 V.
Number of Circuits3
Output or Controlled Vo.48 to 530V AC
Output TypeSCR AC Switch
Output Voltage48-530 VAC
Overall Depth1.45 in
Overall Height - Relay1.18 in
Product Series53TP
Prop 65WARNING: Cancer and Rep.
Relay Turns On AtInstantaneous/Random
SKUZO-G2060502
SnubberNo
Status IndicatorYes
SubCategoryElectrical
Switch TypeSCR
Switching TypeRandom/Instantaneous
TerminationScrew Terminal
Transient Overvoltage1,200 V
Voltage Output48 to 530VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comD53TP50D-10172.171117Crydom172.17 @ 1
HotendaH3860928185.421In StockCrydom185.42 @ 1
AmazonTPB00FD6U3M6219.131In Stock3CRYDOM219.13 @ 1
AmazonUNKB00FD6U3M6219.131In StockCRYDOM219.13 @ 1
thumbzoomZoroG2060502219.9911Crydom0.75219.99 @ 1
thumbzoomRadwellD53TP50D-10253.345In StockCRYDOM253.34 @ 5
thumbzoomsimsupply.comZO-G2060502260.44122Crydom260.44 @ 1
thumbzoomsustainablesupply.comC1165559260.951In StockCrydom0.75260.95 @ 1
thumbzoomGalcoD53TP50D-10-CRDM264.412Crydom0.64264.4 @ 1
thumbzoomRaptor SuppliesAF6NXY378.0665461In StockCRYDOM378.066546 @ 1
