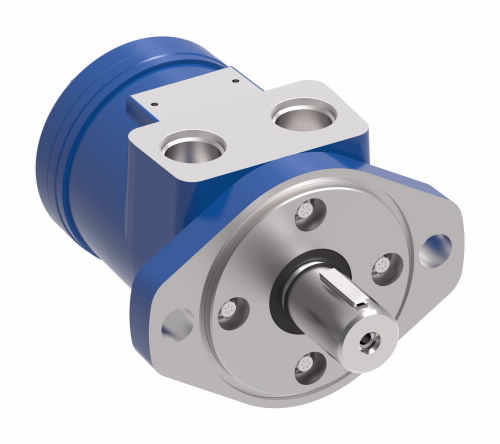

101-2060-009 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application | Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers |
| Brake type | Hydraulic |
| Case flow options | .4375-20 UNF-2B SAE O-Ring Port (End Cap) |
| Design code11 | 9 |
| Displacement | 46 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 45 litre per minute |
| Front seal kit if available | 60540-000 |
| Geroler options, Identification, Low pressure relief, Pressure flow option, Shaft options, Special assembly instructions, Two speed ratio, Valve options | None |
| Icc2 | Low-Speed Gerotor/Geroler |
| Intermittent pressure | 165 bar |
| Maximum speed | 969 revolutions per minute |
| Model Code | MH0028BA18EB0100000000AJ0AA00J |
| Mounting Type | 4 Bolt Std - 44.40 [1.748] Dia. X 3.05 [.120] Pilot, .375-16 UNC-2B Mounting Holes On 82.55 [3.250] Dia. B.C. |
| Output shaft type | Taper |
| Paint | Primer Low Gloss Black |
| Port type | .750-16 UNF-2B SAE O-Ring Ports |
| Product height | 3.31 |
| Product height uom, Product length uom, Product width uom | inch |
| Product length | 6.45 |
| Product material | Cast Iron |
| Product trade name | H Series |
| Product weight | 11.2 |
| Product weight uom | pound |
| Product width | 3.38 |
| Recommended system working temperature | -34?C to 82?C |
| Seal options | Standard |
| Special features hardware | Reduced Journal Leakage |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 73 newton metre |
| Viscosity recommendation | 100 Saybold universal second |
