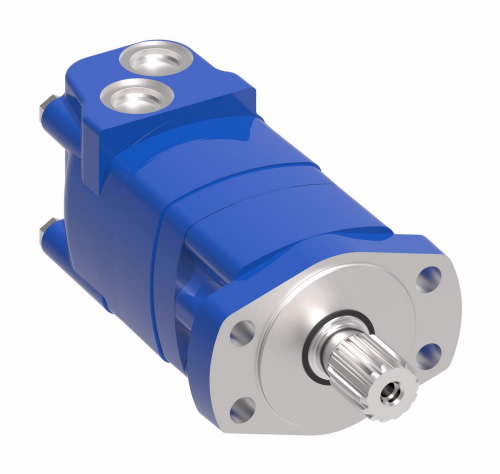

104-3592-006 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application | Swing motor, Brush Cutters & mowers, Harvesting equipment |
| Brake type, Identification, Low pressure relief, Paint, Pressure flow option, Shaft options, Special features hardware, Valve options | None |
| Case flow options | .4375-20 UNF-2B SAE O-Ring Port |
| Design code11 | 6 |
| Displacement | 158.1 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 75 litre per minute |
| Geroler options, Seal options | Standard |
| Icc2 | Low-Speed Gerotor/Geroler |
| Intermittent pressure | 260 bar |
| Maximum speed | 477 revolutions per minute |
| Model Code | M02096AJ04AA01000100000AAAAAAF |
| Mounting Type | Standard (Magneto), 4 Bolt, 82.6 [3.25] Pilot Dia. 13.59 [.535] Dia. Holes On 106.4 [4.19] Dia. Bolt Circle 2.79 [.110] Pilot Length |
| Output shaft type | Spline |
| Port type | .875-14 UNF-2B SAE O-Ring Ports - Staggered Ports |
| Product height | 4.45 |
| Product height uom, Product length uom, Product width uom | inch |
| Product length | 8.99 |
| Product material | Cast Iron |
| Product trade name | 2000 Series |
| Product weight | 22 |
| Product weight uom | pound |
| Product width | 5.34 |
| Recommended system working temperature | -34?C to 82?C |
| Special assembly instructions | Flange Rotated 90 Degrees |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 455 newton metre |
| Viscosity recommendation | 70 Saybold universal second |
