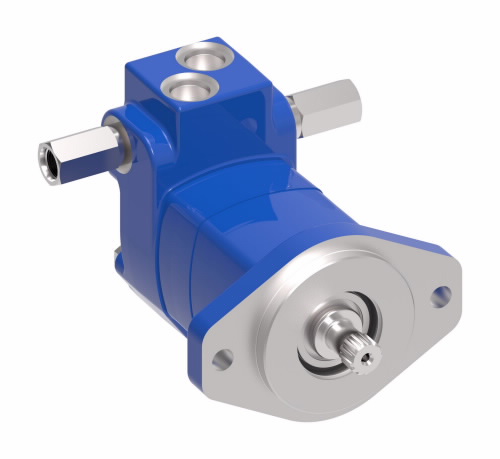

104-3654-006 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application | Swing motor, Brush Cutters & mowers, Harvesting equipment |
| Brake type | Hydraulic |
| Case flow options | .4375-20 UNF-2B SAE O-Ring Port |
| Design code11 | 6 |
| Displacement | 101.6 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 75 litre per minute |
| Front seal kit if available | 61258-000 |
| Geroler options, Seal options | Standard |
| Icc2 | Low-Speed Gerotor/Geroler |
| Identification, Low pressure relief, Shaft options, Special assembly instructions, Special features hardware, Two speed ratio, Valve options | None |
| Intermittent pressure | 310 bar |
| Maximum speed | 742 revolutions per minute |
| Model Code | M02062AF07AA0103210000000ABAAF |
| Mounting Type | Standard, 2 Bolt; 101.6 [4.00] Pilot Dia. 14.35 [.565] Dia. Holes On 146.0 [5.75] Dia. Bolt Circle. SAE B |
| Output shaft type | Spline |
| Paint | Primer Low Gloss Black |
| Port type | .875-14 UNF-2B SAE O-Ring Ports - Staggered Ports |
| Pressure flow option | Integral Cross-Over Relief Valve Set At 137.9 Bar [2000 Lbf/In2] |
| Product height | 4.00 |
| Product height uom, Product length uom, Product width uom | inch |
| Product length | 8.37 |
| Product material | Cast Iron |
| Product trade name | 2000 Series |
| Product weight | 21.00 |
| Product weight uom | pound |
| Product width | 6.96 |
| Recommended system working temperature | -34?C to 82?C |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 295 newton metre |
| Viscosity recommendation | 70 Saybold universal second |
