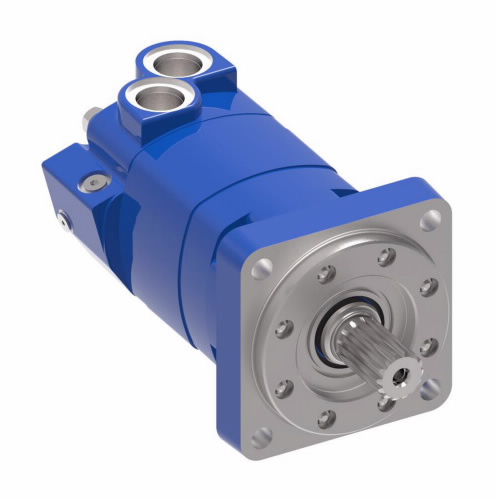

109-1118-006 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application | Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products |
| Brake type | Hydraulic |
| Case flow options | .4375-20 UNF-2B SAE O-Ring Port With Check Valve |
| Design code11 | 6 |
| Displacement | 246.3 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 95 litre per minute |
| Geroler options, Seal options | Standard |
| Icc2 | Low-Speed Gerotor/Geroler |
| Identification, Low pressure relief, Paint, Pressure flow option, Shaft options, Special assembly instructions, Special features hardware, Two speed ratio, Valve options | None |
| Intermittent pressure | 310 bar |
| Maximum speed | 383 revolutions per minute |
| Model Code | M04150AB03AB02000000000000000F |
| Mounting Type | Standard, 4 Bolt; 101.60 [4.000] Pilot Dia. 14.7 [.58] Slots On 127.00 [5.000] Dia. Bolt Circle. (SAE B) |
| Output shaft type | Spline |
| Port type | 1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports |
| Product height uom, Product length uom, Product width uom | inch |
| Product height, Product width | 5.84 |
| Product length | 11.36 |
| Product material | Cast Iron |
| Product trade name | 4000 Series |
| Product weight | 41.00 |
| Product weight uom | pound |
| Recommended system working temperature | -34?C to 82?C |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 705 newton metre |
| Viscosity recommendation | 70 Saybold universal second |
