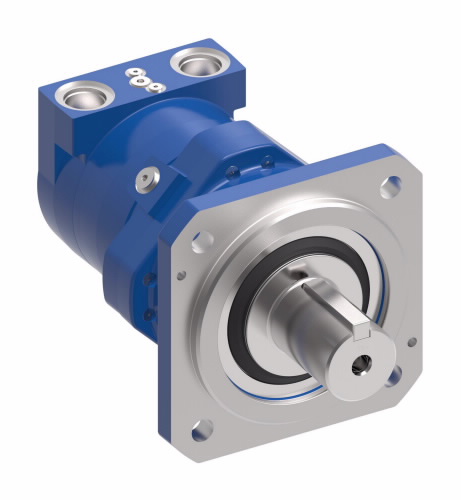

155-0219-005 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Application | Skid Steer Loaders and Attachments, Snow Removal Equipment |
| Brake type, Geroler options, Identification, Low pressure relief, Pressure flow option, Seal options, Shaft options, Special assembly instructions, Special features hardware, Valve options | None |
| Case flow options | Check Valve with leakage orifice and side facing |
| Design code11 | 5 |
| Displacement | 1245 cubic centimetre per revolution |
| Eccn | EAR99 |
| Flow rate12 | 170 litre per minute |
| Icc2 | Low-Speed Gerotor/Geroler |
| Intermittent pressure | 256 bar |
| Maximum speed | 198 revolutions per minute |
| Model Code | ACB76H05AE000A0E |
| Mounting Type | Bearingless, 4 Bolt - 158.70 [6.250] Pilot Dia. With 9.07 [.355] Pilot Length And 17.53 [.690] Dia. Holes On 190.5 [7.500] Bolt Circle Max Torque Allowed 3615 Nm [32,000 lbf/in] |
| Output shaft type | Straight |
| Paint | Primer Low Gloss Black |
| Port type | 1.3125-12 UN-2B SAE O-Ring Ports |
| Product height uom, Product length uom, Product width uom | inch |
| Product height, Product width | 7.88 |
| Product length | 7.90 |
| Product material | Cast Iron |
| Product trade name | VIS 45 Series |
| Product weight | 83.20 |
| Product weight uom | pound |
| Recommended system working temperature | -34?C to 82?C |
| Speed sensor | No |
| Sub brand | Char-Lynn |
| Torque | 3555 newton metre |
| Viscosity recommendation | 70 Saybold universal second |
