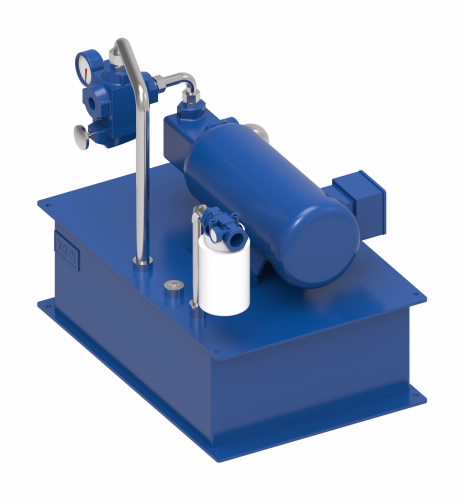

6764420 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Air bleed valve, Special features17 | Not required |
| Breather | MBR120 H2O-Gate |
| Containment tray | No |
| Cooler | Full Flow Return Air/oil rear-mount (16GPM max flow) |
| Displacement | 17 gallons per minute |
| Eccn | EAR99 |
| Frequency | 60 Hz |
| Hydraulic pump type | Vane |
| Icc2 | Horizontal Packaged Systems |
| Installation position | Horizontal |
| Level temperature switch | Level Switch |
| Main port connections | SAE |
| Manifold stations | Eight station parallel manifold |
| Model Code | PSSCA1060V037XX7524RXXXXD4XFXWTLP81B/2C/2C/2C/2C/2C/2C/2C/2C/ |
| Model series | System-Center |
| Motor power | 10 HP (horsepower) |
| Oil tank | 60 gallon (US) |
| Paint | Eaton Blue |
| Phase | 3-Phase |
| Pressure filter | Yes |
| Pressure gauge | 0-3000 PSI |
| Pressure max | 2500 psi |
| Product height | 31.50 |
| Product height uom, Product length uom, Product width uom | inch |
| Product length | 38.00 |
| Product material | Cast Iron |
| Product trade name | PSSC Series |
| Product width | 24.00 |
| Pump control type | Standard control |
| Return filter | 0 gallons per minute |
| Sub brand | None |
| Valve size | DO5 |
| Winding type | Standard |
