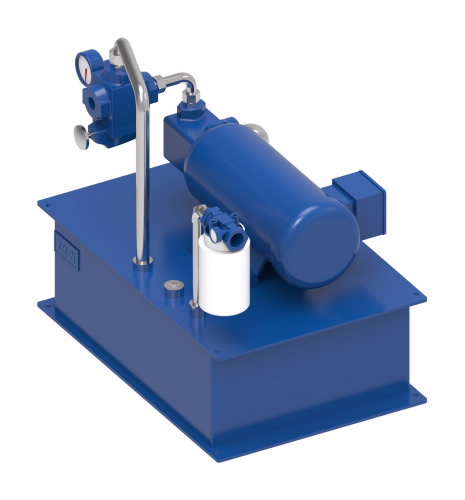

6764472 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Air bleed valve | Not required |
| Breather | Standard filler/breather |
| Containment tray | No |
| Cooler | Full Flow Return Air/oil rear-mount (16GPM max flow) |
| Displacement | 10 gallons per minute |
| Eccn | EAR99 |
| Frequency | 60 Hz |
| Hydraulic pump type | Piston |
| Icc2 | Horizontal Packaged Systems |
| Installation position | Horizontal |
| Level temperature switch | Level Switch |
| Main port connections | SAE |
| Manifold stations | In-line relief only, no manifold |
| Model Code | PSSCA1020P020XX732XXXXJXB2WFAFXLNCXX |
| Model series | System-Center |
| Motor power | 5 HP (horsepower) |
| Oil tank | 20 gallon (US) |
| Paint | Custom |
| Phase | 3-Phase |
| Pressure filter | Yes |
| Pressure gauge | 0-1500 PSI |
| Product height | 23.40 |
| Product height uom, Product length uom, Product width uom | inch |
| Product length | 27.00 |
| Product material | Cast Iron |
| Product trade name | PSSC Series |
| Product width | 18.00 |
| Pump control type | Standard control |
| Relief valve set pressure | 2000 psi |
| Return filter | 25 gallons per minute |
| Special features17 | 1 Spare 1" NPT coupling w/downline on reservoir cover |
| Sub brand | None |
| Valve size | DO5 |
| Winding type | Standard |
