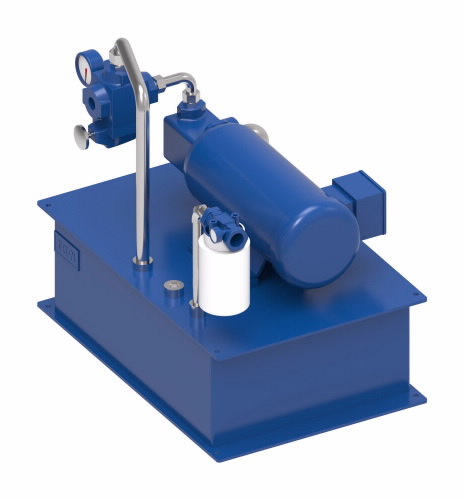

6764748 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Air bleed valve | ABS-12-10 |
| Breather | MBR120 H2O-Gate |
| Containment tray | No |
| Cooler | Passive Case Water/oil shell and tube (10GPM max flow) |
| Displacement | 5 gallons per minute |
| Eccn | EAR99 |
| Frequency | 60 Hz |
| Hydraulic pump type | Piston |
| Icc2 | Horizontal Packaged Systems |
| Installation position | Horizontal |
| Level temperature switch | Level/Temperature Switch |
| Main port connections | SAE |
| Manifold stations | In-line relief only, no manifold |
| Model Code | PSSCA1020P010XX730XXXXXX B2TFAWTMNBXX |
| Model series | System-Center |
| Motor power | 5 HP (horsepower) |
| Oil tank | 20 gallon (US) |
| Paint | Eaton Blue |
| Phase | 3-Phase |
| Pressure filter | Yes |
| Pressure gauge | 0-1500 PSI |
| Pressure max | 3000 psi |
| Product material | Cast Iron |
| Product trade name | PSSC Series |
| Pump control type | Standard control |
| Relief valve set pressure | 1000 psi |
| Return filter | 25 gallons per minute |
| Special features17 | Not Required |
| Sub brand | None |
| Valve size | DO3 |
| Voltage | 230 volt |
| Winding type | Standard |
