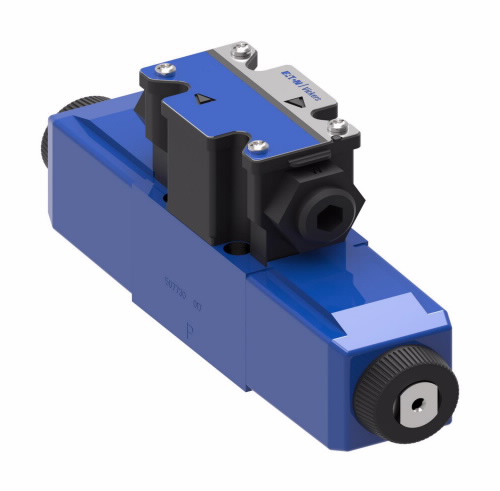

871388 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key | Value |
|---|---|
| Actuation identification | Solenoid A, Solenoid B |
| Actuation type | Solenoid Operated |
| Actuator identification | Flag with Standard Build as Per ANSI B93 9 |
| Application | Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water) |
| Body Material | Gray Iron |
| Body material7 | Gray Iron |
| Build orientation | Solenoid `B` at port `A` end of valve and Solenoid `A` at port `B` end of valve |
| Build type | Spring centered |
| Coil rating | 110 Volt AC 50 Hz/120 Volt AC 60 Hz |
| Coil type | 1/2 inch NPT thread conduit box |
| Design code | 60 |
| Design code11 | 60 |
| Diode | None |
| Eccn | EAR99 |
| Electrical connector | Flying Lead Coil with 1/2 In. NPT Thread Wiring Housing |
| Flow Rate | 80 litre per minute |
| Flow rate12 | 80 litre per minute |
| Fluid cleanliness | 19/17/14 micron |
| Fluid compatibility | Petroleum oils |
| Fluid compatibility13 | Petroleum oils |
| Function | Directional Control Valve |
| Icc2 | IV Directional Control Valves |
| Interface | ISO4401-03 |
| Leakage | Standard |
| Light | No |
| Manual override | None |
| Model Code | DG4V-3-0C-M-FW-B6-60 |
| Performance | High Performance |
| Pressure rating | 350 bar |
| Product height | 3.57 |
| Product height uom | inch |
| Product length | 7.87 |
| Product length uom | inch |
| Product trade name | DG4V-3 60 Design |
| Product weight | 4.40 |
| Product weight uom | pound |
| Product width | 1.80 |
| Product width uom | inch |
| Reducer module | No |
| Response Time | 15-23 ms |
| Seal Material | Buna-N |
| Seal material16 | Buna-N |
| Size | D03 |
| Special features | None |
| Special features17 | None |
| Spool center condition | A Port and Double Offset sensing switch on B Port |
| Spool monitor switch | None |
| Spring arrangement | C |
| Stage | Single Stage |
| Sub brand | Vickers |
| Tank port rating | 210 bar |
| Valve mount type | Subplate/manifold mounted |
| Working temperature max | 70 degree Celsius |
| Working temperature min | -20 degree Celsius |
