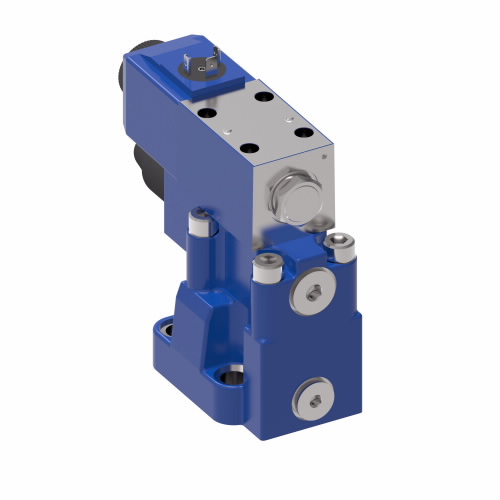

871606 DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
Attributes
| Key ^ | Value |
|---|---|
| Actuation option | Solenoid/Pilot Operated |
| Adjustment range | 44-5000 psi |
| Adjustment type | Screw with locknut |
| Adjustment, Electrical flag, Manual override | Yes |
| Application | Die casting & foundry, Machine tool, Marine/Offshore, Press, Primary metal, paper, Test equipment & simulation, Turbine control (wind, steam, water) |
| Body material7 | Cast Iron |
| Check valve, Light, Remote control | No |
| Coil voltage8 | 220VAC |
| Design code11 | 11 |
| Eccn | EAR99 |
| Electrical connector | ISO 4400 (Din 43650) Connector |
| Flow rate12 | 400 litre per minute |
| Fluid cleanliness | 19/17/14 |
| Fluid compatibility13 | Petroleum-oils |
| Function | Relief |
| Icc2 | IV Pressure Valves |
| Interface | 1 In. |
| Leakage, Performance | Standard |
| Model Code | CG5V-8GW-D-M-U-C6-11 |
| Pressure rating | 350 bar |
| Product height | 8.00 |
| Product height uom, Product length uom, Product width uom | inch |
| Product length | 6.65 |
| Product trade name | CG5V-8 11 Design |
| Product weight | 13.00 |
| Product weight uom | pound |
| Product width | 4.20 |
| Seal material16 | Buna-N |
| Size | 8 |
| Special features17 | Electrical on/off load from solenoid controlled models|Remote parallel control by other pilot valves connected to ?vent? port|Pressure override optimized without detriment to other performance parameters |
| Stage | Two Stage |
| Sub brand | Vickers |
| Tank port rating | 5000 psi |
| Valve mount type | Subplate/manifold mounted |
| Working temperature max | 70 degree Celsius |
| Working temperature min | -20 degree Celsius |
