mpn:
brand:
manufacturer:
MPN:
Description:

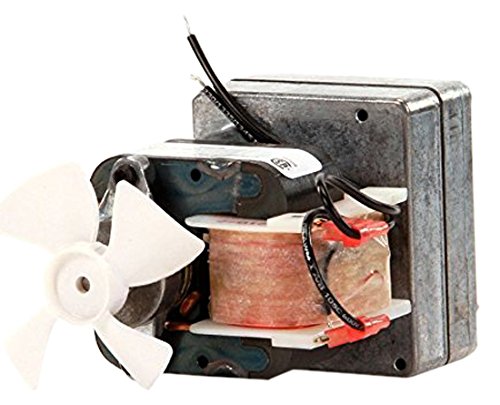

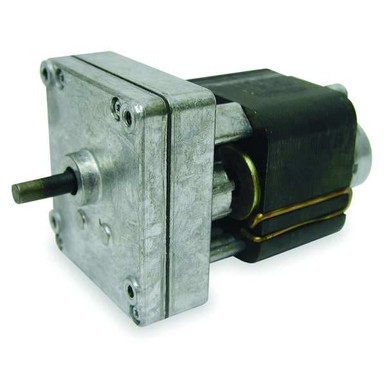

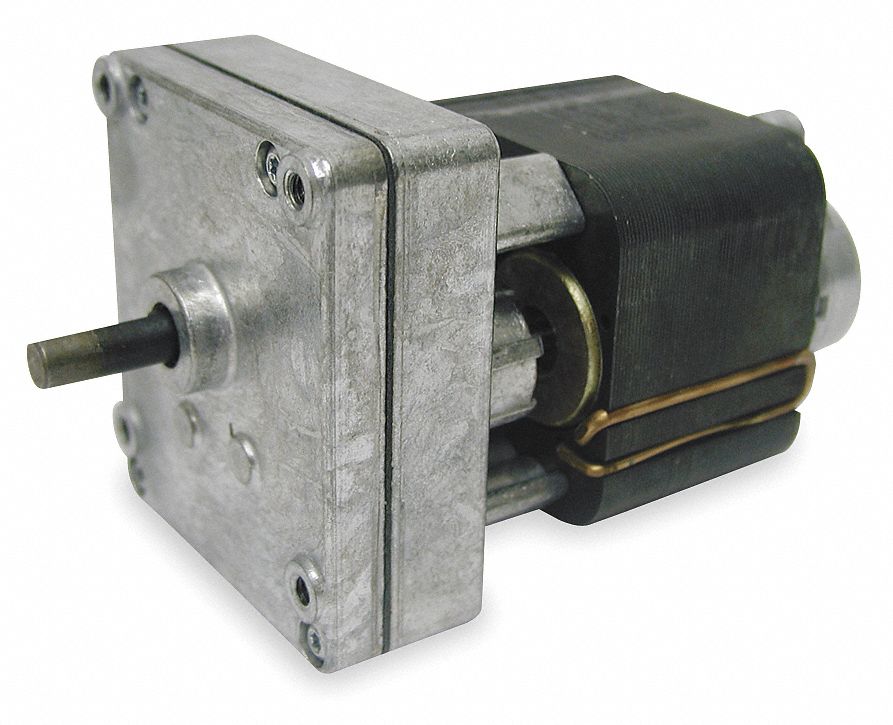

AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Open Air-Over, Nameplate Speed 13 RPM, Maximum Torque 50 in-lb, Overhung Load Capacity 18 ft-lb, Rotation CW, Output Shaft Height 1.41 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Gear Ratio 252:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class A
Weight:
10.0
Weight:
10.0 LB
Preferred Price:
189.37
Price:
189.37
Min Simple Price:
106.99
Absolute Min Price:
151.91
Min Price:
151.91
Dimensions:
[10.0, 7.0, 5.0]
qty:
21
simpleSku:
MTI3MQ:::1MBG5
sku:
MTI3MQ::WW:1MBG5@y0
condition:
11
seller:
Zoro
amzMan:
dayton
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Agency Compliance | UL/CSA |
| Ambient (C) | 40 |
| Application | Conveyor Toasters, X-ray Equipment, Pumps, Ingredient Motors, Water Softeners, Vending, Food and Restaurant Equipment, Amusement Devices, Valve Actuators, Security Systems, Displays |
| Bearings | Needle on Case, Ball and Porous Bronze on Motor |
| Brand | Dayton |
| Current Stock | 57 |
| Dimension A | 4.04 in |
| Dimension B | 1.17 in |
| Enclosure | Open |
| Full Load Amps | 1.2 A, 1.20 |
| Full Load Torque (In.-Lbs.) | 50.0 |
| Gear Case | Zinc Die Cast |
| Gear Case Material | Die Cast Zinc |
| Gear Ratio | 252:1 |
| Gear Type | Spur |
| Gearmotor Brake Type | None |
| Gearmotor Enclosure | Open |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Phase | 1 |
| Gearmotor Rotation | CW |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gearmotor Type | AC Gearmotor |
| Gearmotor Voltage | 115V AC, 115 V AC |
| Gears | All Spur Gears |
| Housing | Die Cast Zinc |
| Hz | 60 |
| Includes | Cooling Fan and Spring Clip |
| Input HP | 1/64 |
| Insulation Class | A |
| International Shipping | No |
| Item | AC Gearmotor |
| Length Less Shaft | 4 5/8 in, 4-5/8" |
| Length Less Shaft (In.) | 4-5/8 |
| Lubrication | Grease, Grease Filled |
| Max. Ambient Temp. | 40 Degrees C |
| Max. Torque | 50 in.-lb., 50.0 in-lb |
| Motor Type | Shaded Pole |
| Mount Hole Center-to-Center Length | 2.38 in |
| Mount Hole Center-to-Center Width | 2.38 in |
| Mounting | All Position |
| Mpn | 1MBG5 |
| Nameplate RPM | 13 RPM, 13 |
| No Load RPM | 13.8 |
| Output Shaft Diameter | 5/16 in |
| Output Shaft Height | 1.41 in |
| Output Shaft Length | 3/4 in |
| Overall Height | 2.92 in |
| Overall Width | 3.16 in |
| Overhung Load | 18 lb. |
| Overhung Load (Lb.) | 18 |
| Phase | 1 |
| Rotation | CW |
| Seals | Gasketed Gear Case |
| Shaft Dia. (Dimension U) | 5/16" |
| Shaft Dimensions (In.) | 5/16 x 3/4 |
| Shaft Length (Dimension V) | .75", 0.75" |
| Shaft Orientation | Parallel |
| Ship Weight | 5 lbs. |
| SKU | ZO-G0421671 |
| Standards | UL/CSA/CE |
| SubCategory | Power Transmission |
| Thermal Protection | Auto |
| Type | Parallel Shaft |
| UPC | 190735146415 |
| Voltage Rating | 115 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G0421671 | 106.99 | 106.99 | 1 | 196 | Dayton | 4.27 | 106.99 @ Qty: 1+ | |
| grainger.ca | DMD1MBG5 | 113.5523487 | 113.5523487 | 1 | In Stock | DAYTON | 4.27 | 113.5523487 @ Qty: 1+ | ||
| AmazonTP | B000BFW3WW | 124.39 | 124.39 | 1 | In Stock | 2 | DAYTON | 124.39 @ Qty: 1+ | ||
 | simsupply.com | ZO-G0421671 | 140.63 | 140.63 | 1 | 57 | Dayton | 140.63 @ Qty: 1+ | ||
 | sustainablesupply.com | C1661146 | 142.7 | 142.7 | 1 | In Stock | Dayton | 4.27 | 142.7 @ Qty: 1+ | |
| emotorpro.com | 1MBG5 | 163.83 | 163.83 | 1 | In Stock | Dayton | 5.0 | 163.83 @ Qty: 1+ | ||
 | Raptor Supplies | AB2JEJ | 175.9714515 | 175.9714515 | 1 | In Stock | DAYTON | 175.9714515 @ Qty: 1+ |
