- mpn24EP38
- brandname: Dayton
- manufacturername: Dayton

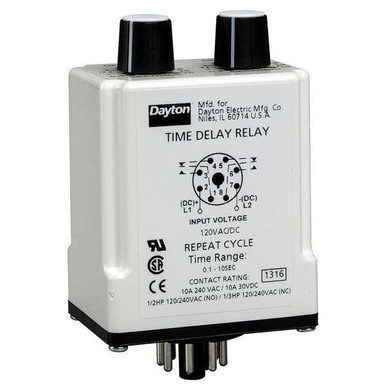

Dayton Single Function Timing Relay, 120VAC/DC, 10A @ 240V, 8 Pins, DPDT
- Brand: CAI - DAYTON
- PartNumber: 24EP38
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| AC Contact Rating - Rel. | 10A @ 240V |
| Adjustment Method | Potentiometer |
| Adjustment Method - Tim. | Potentiometer |
| Base Type | Octal |
| Base Type - Plug In Rel. | Octal |
| Body Depth - Relay | 1.7 in |
| Body Height - Relay | 2.9 in |
| Body Width - Relay | 2.4 in |
| Brand | Dayton |
| Coil Rating | 2VA |
| Coil Volts | 120V AC/DC |
| Color | White |
| Contact Amp Rating (Res. | 10A |
| Contact Form | DPDT |
| Contact Form - Relay | DPDT |
| Contact Material | Silver Nickel |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 47 |
| DC Contact Rating - Rel. | 10A @ 30V |
| Electrical Connection | Socket |
| Function | Repeat Cycle (On First) |
| Function - Timing Relay | Repeat Cycle (On First) |
| Hz | 50/60 |
| Hz - Electrical | 50 Hz, 60 Hz, 50 Hz; 60. |
| International Shipping | No |
| Item | Single Function Time De. |
| Item - Relay | Single Function Timing . |
| Item? | 24EP38 |
| Lead Time | Expected to ship in 1-2. |
| Max. Time Setting | 15 min. |
| Max. Time Setting - Tim. | 15 min |
| Mfr. Model? | 24EP38 |
| Min. Time Setting | 9.00 sec. |
| Min. Time Setting - Tim. | 9 sec, 9.0 sec |
| Mounting | Plug In |
| Mounting - Relay | Plug In |
| Mpn | 24EP38 |
| Number of Pins - Relay | 8 |
| Operating Functions | 7 |
| Overall Height - Relay | 3.1 in |
| Pins | 8 |
| Power Consumption - Rel. | 2.0 W, 2.5 VA, 2 W; 2.5. |
| SKU | ZO-G8490982 |
| Socket | 1EGP3, 1EGP5, 5X852, 1E. |
| Socket Code | A |
| Standards | CE, CSA, UR, CE; CSA; UR |
| Status Indicator | None |
| SubCategory | Electrical |
| Timing Relay Functional. | Repeat Cycle |
| UNSPSC | 39121519 |
| UPC | 190735191569 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G8490982 | 50.71 | 1 | In Stock | 26 | Dayton | | 50.71 @ 1 |
| Grainger | 24EP38 | 59.66 | 1 | In Stock | | DAYTON | | 59.66 @ 1 |
 | simsupply.com | ZO-G8490982 | 63.83 | 1 | 47 | | Dayton | | 63.83 @ 1 |
 | sustainablesupply.com | C1175673 | 69.29 | 1 | In Stock | | Dayton | 0.25 | 69.29 @ 1 |
 | Raptor Supplies | AF8ARQ | 82.102878 | 1 | In Stock | | DAYTON | | 82.102878 @ 1 |
