Attributes
| Key ^ | Value |
|---|---|
| Ambient (C) | 40 |
| Bearings | Needle Throughout with Thrust Balls on Case, Ball on Motor, Ball on Motor, Needle Throughout with Thrust Balls on Case |
| Brand | Dayton |
| Brushes | Externally Replaceable |
| Current Stock | 9 |
| Enclosure | TENV |
| Full Load Amps | 2.51 A, 2.51 |
| Full Load Torque (In.-Lbs.) | 90.0 |
| Gear Case, Housing Material | Die Cast Aluminum |
| Gear Material | Hardened Steel |
| Gear Ratio | 11:1 |
| Gear Type, Gears | Hardened Steel, 1st Stage Helical, Subsequent Stages Spur, AGMA Class 9 |
| Gearmotor Enclosure | Totally Enclosed Nonventilated |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Rotation | CW/CCW |
| Gearmotor Shaft Orientation, Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |

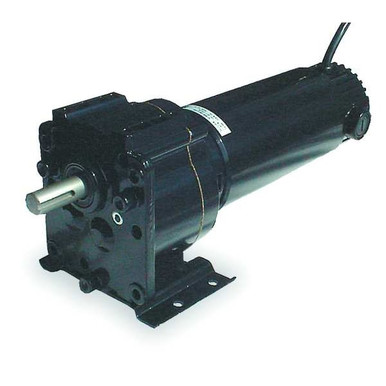

| Gearmotor Type, Item | DC Gearmotor |
| Gearmotor Voltage | 90V DC, 90 V DC |
| Input HP | 1/4 |
| International Shipping, Reversible Shaft Output | No |
| Lead Time | Expected to ship in 1-2 business days |
| Length Less Shaft | 12-1/8", 12.13 in |
| Length Less Shaft (In.) | 12-1/8 |
| Lubrication | Permanent Heavy Fluid Gear Oil |
| Max. Ambient Temp. | 40 Degrees C, 40 Degrees C |
| Max. Torque | 90 in-lbs, 90 in-lb |
| Motor Type | Permanent Magnet DC |
| Mounting | All Position |
| Mpn | 2H573 |
| Nameplate RPM | 165, 165 RPM |
| Output Shaft Diameter, Shaft Dia. (Dimension U) | 5/8 in |
| Output Shaft Length, Shaft Length (Dimension V) | 1 1/2 in |
| Overall Length | 13-5/8", 13.63 in |
| Overhung Load | 200 lbs. |
| Overhung Load (Lb.) | 200 |
| Phase | DC |
| Rear Shaft Encoder/Pulse Generator Mounting | Yes |
| Replacement Brushes | DTN6YHZ0, 6YHZ0 |
| Rotation | Reversible |
| Seals | Spring Loaded Lip Type on Input and Output Shaft |
| Shaft Dia. (Dimension U) | 5/8" |
| Shaft Dimensions (In.) | 5/8 x 1 1/2 |
| Shaft Length (Dimension V) | 1-1/2" |
| Ship Weight | 20 lbs. |
| SKU | ZO-G2881252 |
| Standards | C-UL Recognized, UL Recognized, UL Recognized, C-UL Recognized |
| SubCategory | Power Transmission |
| Thermal Protection | None |
| Type | Parallel Shaft |
| UPC | 190735219294 |
| Voltage, Voltage Rating | 90VDC |
