mpn:
brand:
manufacturer:
MPN:
Description:

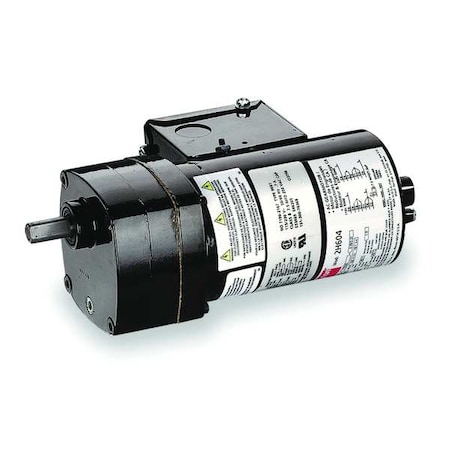

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 4.6 RPM, Maximum Torque 160 in-lb, Overhung Load Capacity 115 ft-lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated Yes, Gear Ratio 362:1, Brake Type None, Shaft Orientation Parallel
Weight:
10.0
Weight:
14.0 LB
Preferred Price:
842.5
Price:
842.5
Min Simple Price:
475.99
Absolute Min Price:
675.9
Min Price:
675.9
Dimensions:
[15.0, 9.0, 7.0]
qty:
21
simpleSku:
MTI3MQ:::2H604
sku:
MTI3MQ::3S:2H604@y0
condition:
11
seller:
Zoro
amzMan:
dayton
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Ambient (C) | 40 |
| Bearings | Ball on Motor; Needle Throughout, Needle Throughout, Ball on Motor |
| Brake | 5X400 |
| Brand | Dayton |
| Country of Origin | USA |
| Current Stock | 42 |
| Enclosure | TENV |
| Full Load Amps | 0.38/0.22 |
| Full Load Torque (In.-Lbs.) | 160.0 |
| Gear Case, Gear Case Material, Housing | Die Cast Aluminum |
| Gear Material | Hardened Steel |
| Gear Ratio | 362:1 |
| Gear Type | Helical First Stage/Subsequent Stages Spur |
| Gearmotor Brake Type, Thermal Protection | None |
| Gearmotor Enclosure | Totally Enclosed Nonventilated |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Phase, Phase | 1 |
| Gearmotor Rotation | CW/CCW |
| Gearmotor Shaft Orientation, Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gearmotor Type, Item | AC Gearmotor |
| Gearmotor Voltage | 115/230V AC |
| Gears | 1st Stage Helical; Hardened Steel; Subsequent Stages Spur, Hardened Steel, 1st Stage Helical, Subsequent Stages Spur |
| Hz | 60/50 Hz, 60/50 |
| Input HP | 1/20 hp, 1/20 |
| International Shipping | No |
| Item?, Mfr. Model?, Mpn | 2H604 |
| Keyway Depth | 3/4 in |
| Keyway Width | 1/8 in |
| Length Less Shaft | 7 1/2 in, 7-1/2 in |
| Length Less Shaft (In.) | 7-1/2 |
| Lubrication | Permanent Heavy Fluid Gear Oil |
| Max. Ambient Temp. | 40 ?C |
| Max. Torque | 160.0 in-lb, 160 in-lb |
| Motor Type | PSC, Permanent Split Capacitor |
| Mount Hole Center-to-Center Length, Mount Hole Center-to-Center Width | 2.63 in |
| Mounting | All Position |
| Nameplate RPM | 4.6 RPM, 4.6 |
| Output Shaft Diameter, Shaft Dia. (Dimension U) | 1/2 in |
| Output Shaft Length, Shaft Length (Dimension V) | 1 in |
| Overall Height, Overall Width | 3.63 in |
| Overhung Load | 115 lb |
| Overhung Load (Lb.) | 115 |
| Rotation | Reversible |
| Seals | Spring Loaded Lip Type on Input and Output Shaft |
| Shaft Dia. (Dimension U) | 1/2" |
| Shaft Dimensions (In.) | 1/2 x 1 |
| Shaft Length (Dimension V) | 1" |
| Ship Weight | 10 lbs. |
| SKU | ZO-G0259892 |
| Standards | C-UL Recognized; CE Certified; UL Recognized |
| SubCategory | Power Transmission |
| Type | Parallel Shaft |
| UNSPSC | 26101602 |
| UPC | 190735219416 |
| Voltage Rating | 115/230 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G0259892 | 475.99 | 475.99 | 1 | 61 | Dayton | 9.65 | 475.99 @ Qty: 1+ | |
 | simsupply.com | ZO-G0259892 | 501.89 | 501.89 | 1 | 42 | Dayton | 501.89 @ Qty: 1+ | ||
| Grainger | 2H604 | 503.8 | 503.8 | 1 | In Stock | DAYTON | 503.8 @ Qty: 1+ | |||
 | sustainablesupply.com | C1672341 | 516.08 | 516.08 | 1 | In Stock | Dayton | 9.65 | 516.08 @ Qty: 1+ | |
| emotorpro.com | 2H604 | 536.64 | 536.64 | 1 | In Stock | Dayton | 10.0 | 536.64 @ Qty: 1+ | ||
 | Raptor Supplies | AB9ZUN | 791.1843615 | 791.1843615 | 1 | In Stock | DAYTON | 791.1843615 @ Qty: 1+ |
