mpn:
brand:
manufacturer:
MPN:
Description:

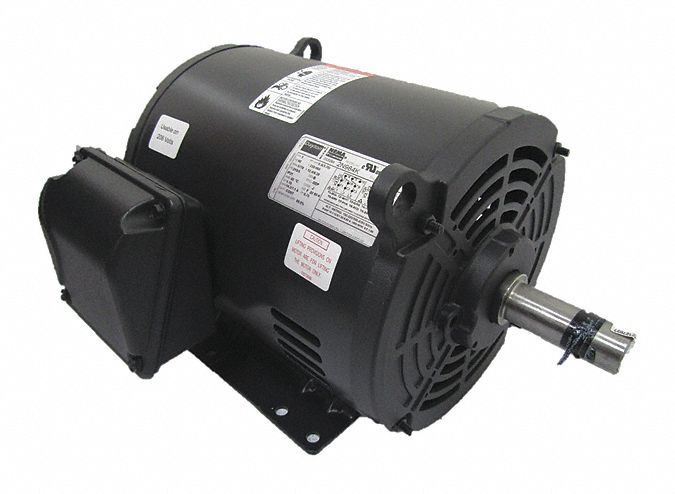

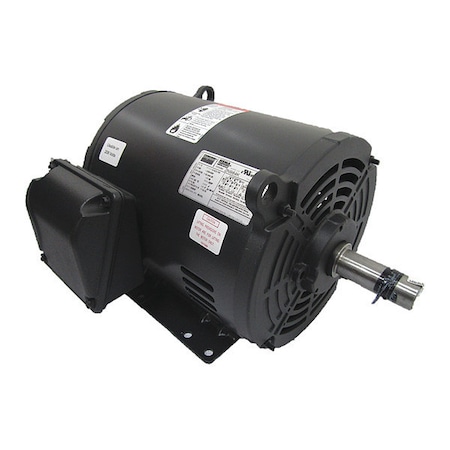

General Purpose Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.7/6.4, 213/5 Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Steel
Weight:
7.9375
Weight:
7.9375 LB
Preferred Price:
930.13
Price:
930.13
Min Simple Price:
525.5
Absolute Min Price:
746.21
Min Price:
746.21
Dimensions:
[23.0, 18.0, 16.0]
qty:
21
simpleSku:
MTI3MQ:::2N984
sku:
MTI3MQ::02:2N984@y0
condition:
11
seller:
simsupply.com
amzMan:
cai - dayton
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps | 14.1-12.7/6.4 |
| Bearings, Motor Bearings | Ball |
| Brand | Dayton |
| CC Number | CC029A |
| Current Stock | 9 |
| Duty, Duty Cycle | Continuous |
| Efficiency | 87.5% |
| Enclosure Material, Motor Frame Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Footnotes | 2,10,15 |
| Frame | 213/5 |
| Full Load Amps | 12.7/6.4 |
| HP | 5 |
| Hz | 60 |
| Ins. Class, Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Lead Time | Expected to ship in 1-2 business days |
| Length Less Shaft | 13 13/16 in |
| Manufacturers Warranty Length | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Temperature | 40? C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor, Service Factor (SF) | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 13-13/16" |
| Motor Thermal Protection, Thermal Protection | None |
| Mounting | Rigid |
| Mpn | 2N984 |
| Nameplate RPM | 1,740 |
| NEMA Design | B |
| No. of Speeds, Number of Speeds | 1 |
| Nominal Efficiency | 89.5 % |
| Overall Length | 16 13/16 in, 16-13/16" |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1740 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 1 1/8 in |
| Shaft Diameter | 1-1/8" Keyed |
| Shaft Length | 3", 3 in |
| Ship Weight | 127 lbs. |
| SKU | ZO-G2950333 |
| Standards | CE, CSA, UL, UL Recognized, CSA Certified, CE |
| SubCategory | Motors/Ac Motors |
| UPC | 190735228326 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Volts | 208-230/460 |
