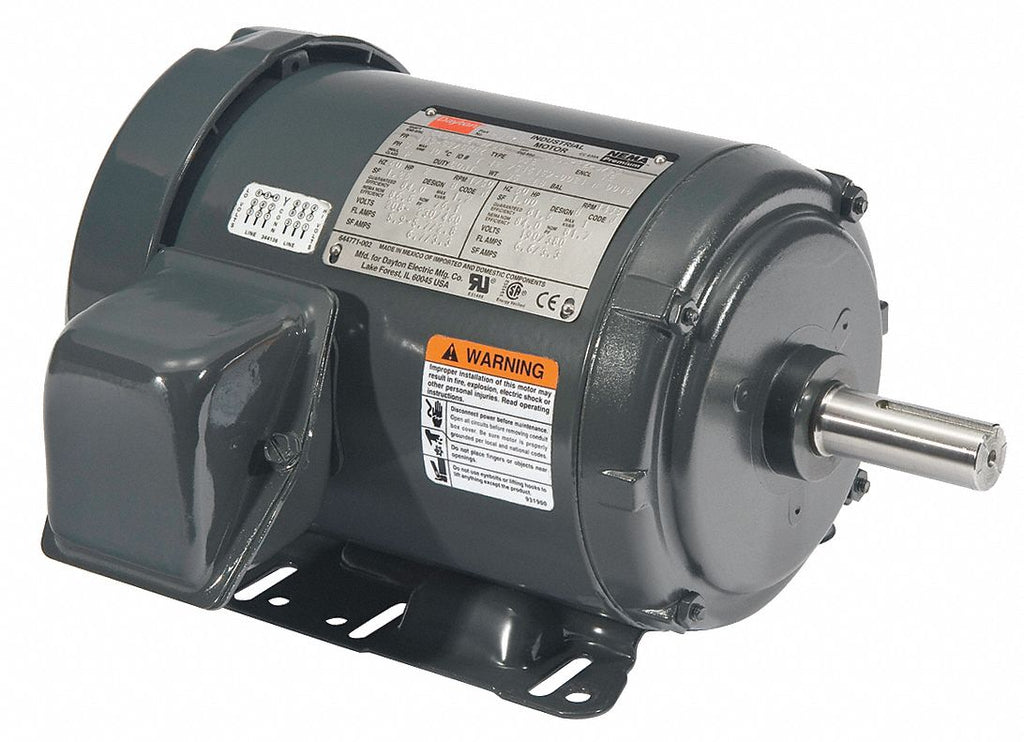

Dayton 1 HP General Purpose Motor,3-Phase,1155 Nameplate RPM,Voltage 208-230/460,Frame 143-5T/56HZ
- Brand: CAI - DAYTON
- PartNumber: 2NKX6
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 3.8-3.8/1.9 |
| Bearings | Ball |
| Brand | Dayton |
| CC Number | CC003A |
| Cross Reference | 2MXT5, 6AHZ6 |
| Current Stock | 1 |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Frame | 143-5T/56HZ |
| Full Load Amps | 3.8/1.90 |
| Green Certification or . | NEMA Premium(R) Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 1 |
| HP @ 50Hz | 975 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Length Less Shaft | 10 3/8 in |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 10-3/8" |
| Motor Thermal Protection | None |
| Mounting | Rigid |
| Mpn | 2NKX6 |
| Nameplate RPM | 1,155 |
| No. of Speeds | 1 |
| Nominal Efficiency | 82.5 % |
| Number of Speeds | 1 |
| Overall Length | 13 in, 12-3/4" |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1155 |
| RPM Range | 1,101-1,200 |
| Service Factor (SF) | 1.25 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 7/8" Keyed |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 44 lbs. |
| SKU | ZO-G0484976 |
| Standards | CE, CSA, UL, UL Recogni. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735228418 |
| Voltage | 208-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | GGE2NKX6 | 612.5439737 | 1 | In Stock | | DAYTON | 43.8 | 612.5439737 @ 1 |
 | Zoro | G0484976 | 698.99 | 1 | 12 | | Dayton | 43.8 | 698.99 @ 1 |
 | emotorpro.com | 2NKX6 | 886.54 | 1 | In Stock | | Dayton | 44.0 | 886.54 @ 1 |
 | simsupply.com | ZO-G0484976 | 902.39 | 1 | 1 | | Dayton | | 902.39 @ 1 |
 | sustainablesupply.com | C1551822 | 931.52 | 1 | In Stock | | Dayton | 43.8 | 931.52 @ 1 |
 | Raptor Supplies | AC2WJM | 1065.5384805 | 1 | In Stock | | DAYTON | | 1065.5384805 @ 1 |
