- mpn2NKY2
- brandname: DAYTON
- manufacturername: DAYTON

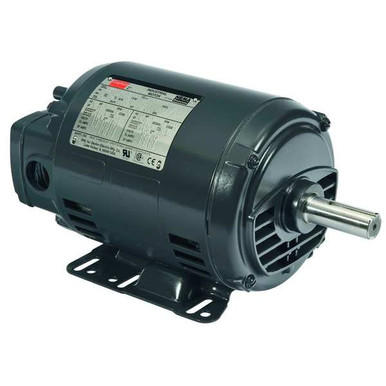

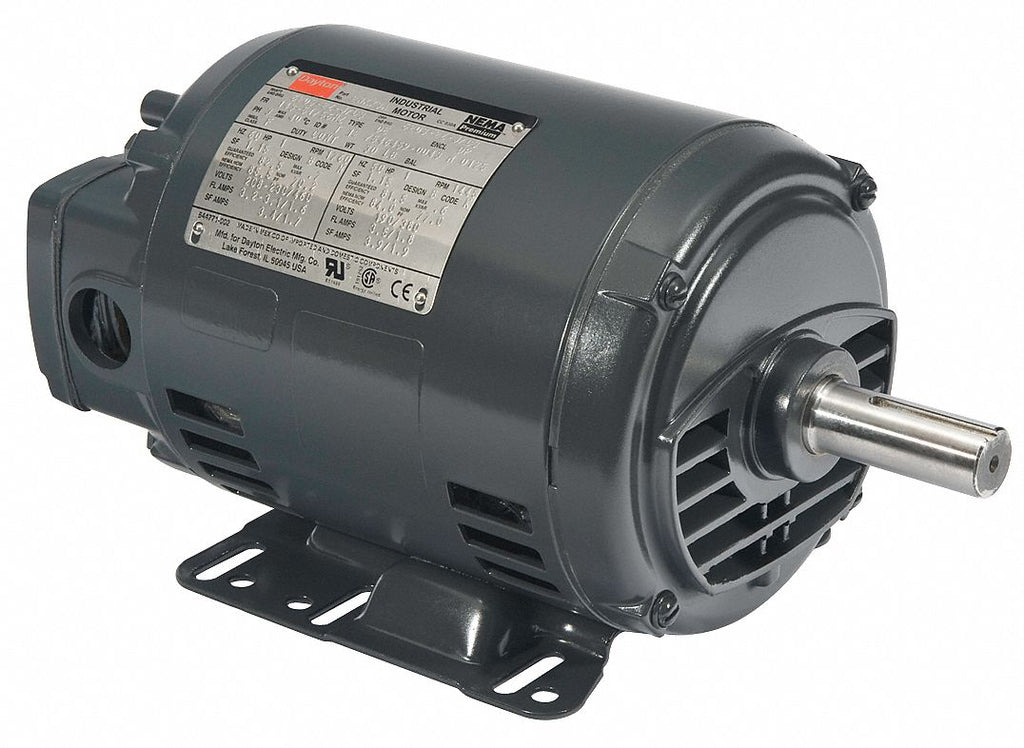

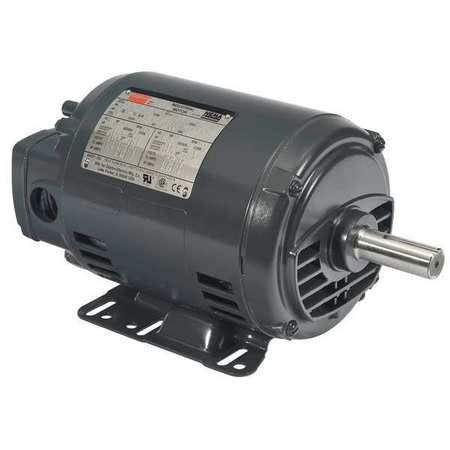

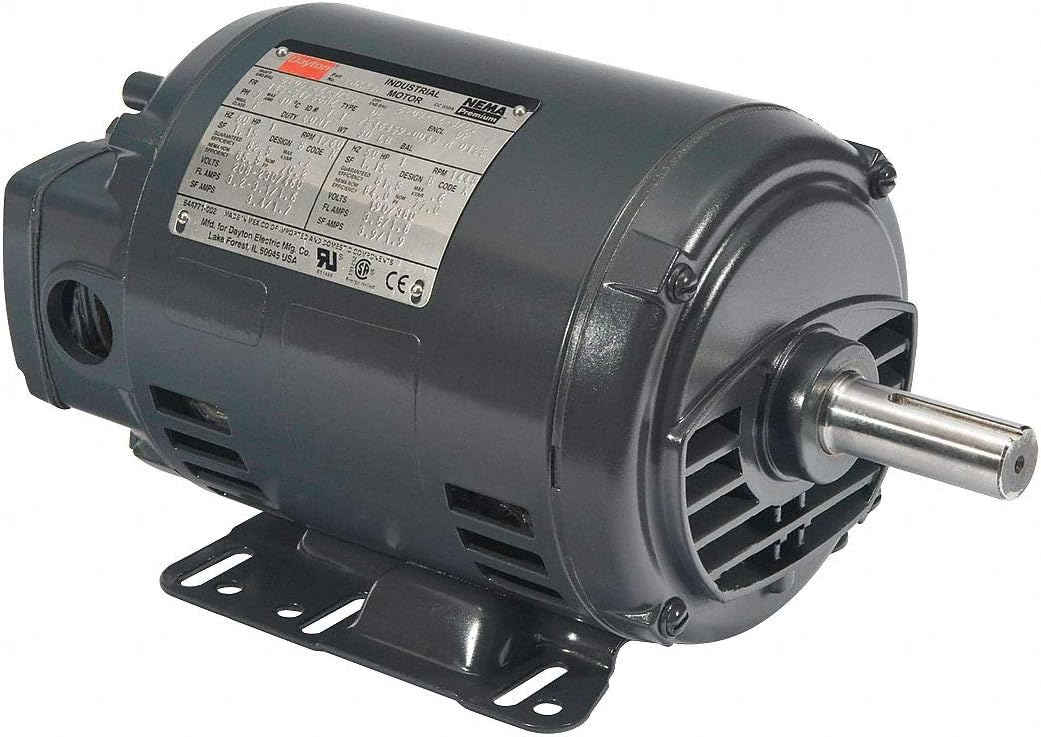

GP Mtr, 3 Ph, ODP, 2 HP, 1745rpm, 143-5T/56HZ
- Brand: Dayton
- PartNumber: 2NKY2
- Model: 2NKY2
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Amps | 6.0-5.8/2.9 |
| ASIN | B007IAY402 |
| Batteries Included? | No |
| Batteries Required? | No |
| Bearings | Ball |
| Brand | DAYTON |
| CC Number | CC030A |
| Cross Reference | 6AJA4, 2MXU1, 2NKY3 |
| Current Stock | 397 |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 143-5T/56HZ |
| Full Load Amps | 5.6/2.8 |
| Green Certification or . | NEMA Premium(R) Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 2 |
| HP @ 50Hz | 1440 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Is Discontinued By Manu. | No |
| Item | General Purpose Motor |
| Item model number | 2NKY2 |
| Item Package Quantity | 1 |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 10 1/2 in |
| Manufacturer | DAYTON |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 10-1/2" |
| Motor Thermal Protection | None |
| Mounting | Rigid |
| Mpn | 2NKY2 |
| Nameplate RPM | 1,745 |
| No. of Speeds | 1 |
| Nominal Efficiency | 86.5 % |
| Number of Speeds | 1 |
| Overall Length | 12 13/16 in, 12 5/6 in,. |
| Part Number | 2NKY2 |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1745 |
| RPM Range | 1,701-1,800 |
| Service Factor (SF) | 1.25 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 7/8" Keyed |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 49 lbs. |
| SKU | ZO-G3385654 |
| Standards | CE, CSA, UL, UL, CSA, CE |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735228463 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B00AP7GMMS | 360.98 | 1 | In Stock | 3 | DAYTON | | 360.98 @ 1 |
 | Amazon | B007IAY402 | 419.05 | 1 | In Stock | | DAYTON | | 419.05 @ 1 |
 | Zoro | G3385654 | 469.99 | 1 | 480 | | Dayton | 48.15 | 469.99 @ 1 |
| emotorpro.com | 2NKY2 | 566.1 | 1 | In Stock | | Dayton | 49.0 | 566.1 @ 1 |
 | simsupply.com | ZO-G3385654 | 611.89 | 1 | 397 | | Dayton | | 611.89 @ 1 |
 | sustainablesupply.com | C2979649 | 625.86 | 1 | In Stock | | Dayton | 48.15 | 625.86 @ 1 |
| grainger.ca | AOS2NKY2 | 628.56977018 | 1 | In Stock | | DAYTON | 1.0 | 628.56977018 @ 1 |
 | Raptor Supplies | AC2WJT | 771.8095125 | 1 | In Stock | | DAYTON | | 771.8095125 @ 1 |
