- mpn2NKY8
- brandname: DAYTON
- manufacturername: DAYTON

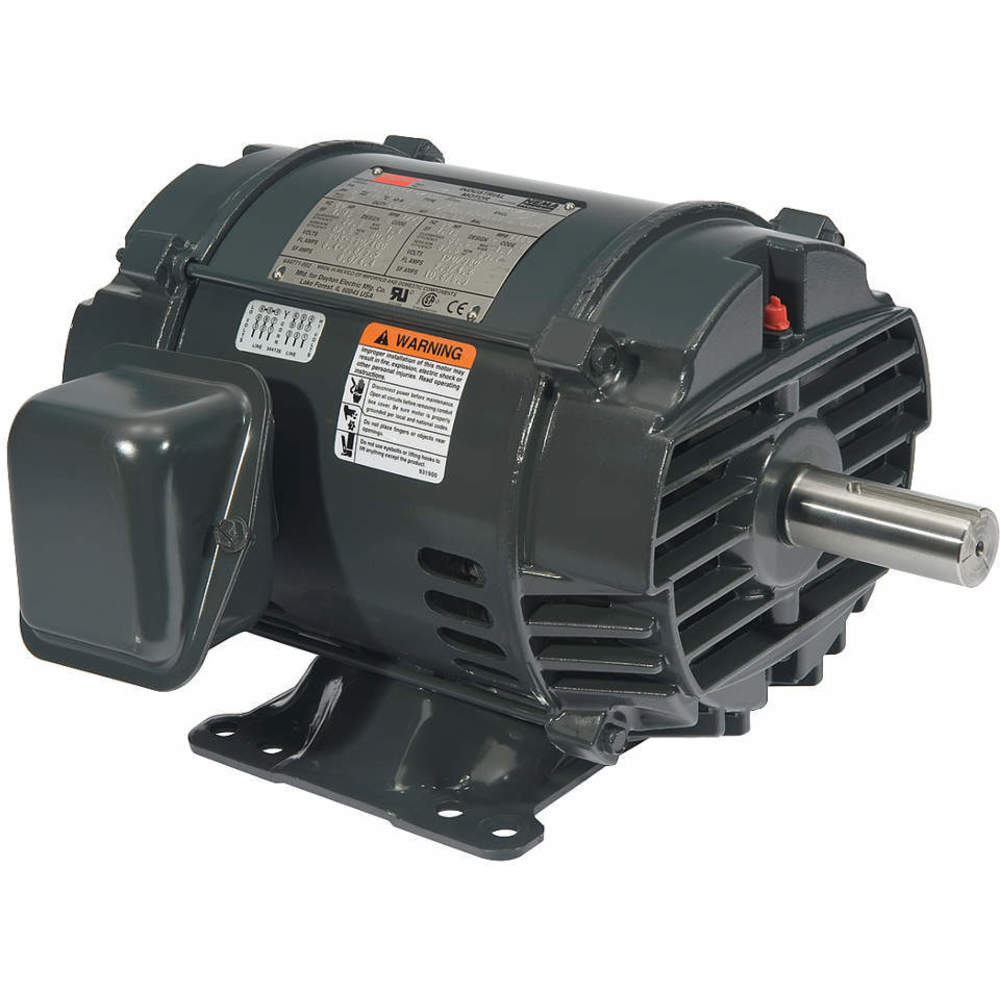

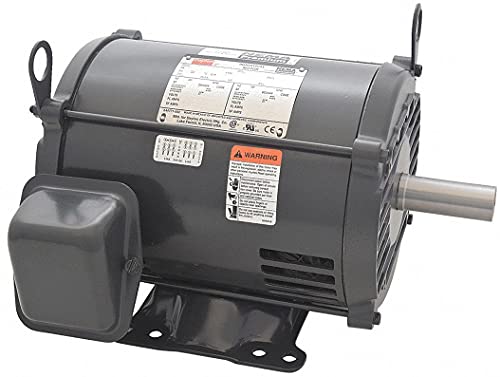

Dayton 3 HP General Purpose Motor,3-Phase,1770 Nameplate RPM,Voltage 230/460,Frame 182/4T
- Brand: Dayton
- PartNumber: 2NKY8
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 8.4-8.0/4.0 |
| Bearings | Ball |
| Brand | Dayton |
| CC Number | CC030A |
| Cross Reference | 2MXU4, 6AJA8 |
| Current Stock | 397 |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Frame | 182/4T |
| Full Load Amps | 8.3-7.8/3.9 |
| Green Certification or . | NEMA Premium(R) Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 3 |
| HP @ 50Hz | 1475 |
| Hz | 50/60, 60/50 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 12 3/4 in |
| Manufacturers Warranty . | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 12-1/8" |
| Motor Thermal Protection | None |
| Mounting | Rigid |
| Mpn | 2NKY8 |
| Nameplate RPM | 1,770 |
| No. of Speeds | 1 |
| Nominal Efficiency | 89.5 % |
| Number of Speeds | 1 |
| Overall Length | 14-1/8", 13 9/13 in, 13. |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1770 |
| RPM Range | 1,701-1,800 |
| Service Factor (SF) | 1.25 |
| Shaft Dia. | 1 1/8 in |
| Shaft Diameter | 1-1/8" Keyed |
| Shaft Length | 2 10/11 in, 2 15/16 in,. |
| Ship Weight | 70 lbs. |
| SKU | ZO-G0542857 |
| Standards | CE, CSA, UL, UL, CSA, CE |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735228524 |
| Voltage | 208-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0542857 | 608.99 | 1 | 393 | | Dayton | 70.0 | 608.99 @ 1 |
 | sustainablesupply.com | C1551830 | 710.04 | 1 | In Stock | | Dayton | 70.0 | 710.04 @ 1 |
| emotorpro.com | 2NKY8 | 733.44 | 1 | In Stock | | Dayton | 70.0 | 733.44 @ 1 |
 | simsupply.com | ZO-G0542857 | 792.94 | 1 | 397 | | Dayton | | 792.94 @ 1 |
| grainger.ca | AOS2NKY8 | 847.015602 | 1 | In Stock | | DAYTON | 1.0 | 847.015602 @ 1 |
 | Raptor Supplies | AC2WJZ | 999.9500355 | 1 | In Stock | | DAYTON | | 999.9500355 @ 1 |
