- mpn2RDZ8
- brandname: Dayton
- manufacturername: Dayton

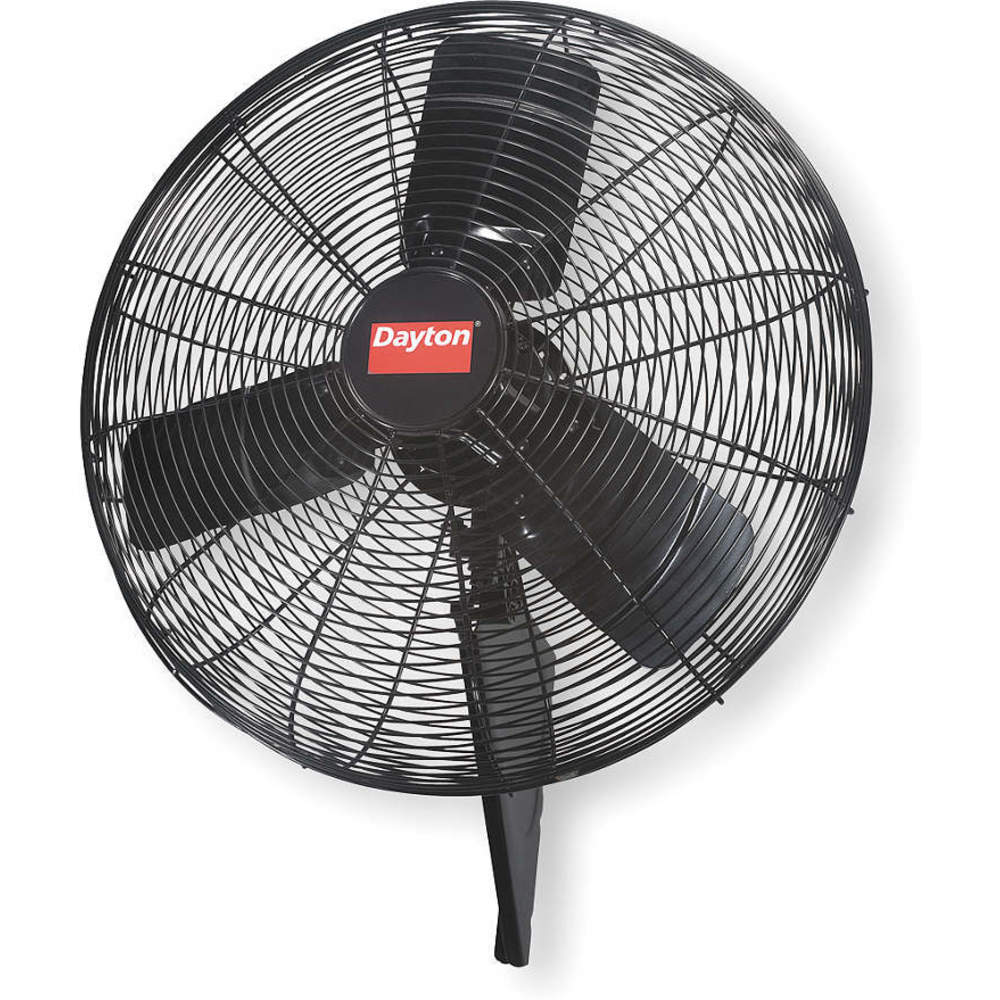

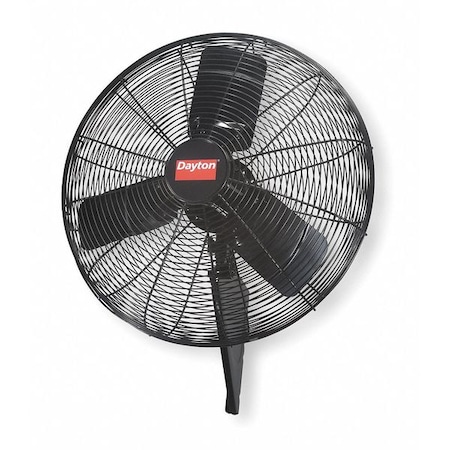

24" Commercial Wall-Mounted Quiet Design Air Circulator
- Brand: Dayton
- PartNumber: 2RDZ8
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Air Flow | 2,280/4,320/5,030 cfm, . |
| Air Velocity @ 20 Ft. | 500/350/220 fpm |
| Amps | 2.0/1.6/0.6 |
| Assembly Required | Yes |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Diameter | 24 in, 24" |
| Blade Material | Steel |
| Brand | Dayton |
| Cord Length | 10 ft. |
| Current Stock | 42 |
| Depth | 24 in |
| Drive Type | Direct Drive |
| Environmental Applicati. | Industrial |
| Fan Cord Length | 10 ft |
| Fan Housing Material | Steel |
| Fan Mounting Location | Wall |
| Guard Material | Steel |
| Height | 27", 27 in |
| Hz | 60, 60 Hz |
| Includes | Assembly Hardware, Seco. |
| International Shipping | No |
| Item | Light-Duty Quiet-Design. |
| Material | Steel |
| Max. Ambient Temp. | 130 Degrees F |
| Max. Depth | 24" |
| Motor Enclosure | Totally Enclosed Air Ov. |
| Motor HP | 1/4, 1/4 hp |
| Motor Insulation | Class A |
| Motor Type | Permanent Split Capacit. |
| Mpn | 2RDZ8 |
| NEMA Plug Configuration | 5-15P |
| Number of Blades | 3 |
| Number of Conductors | 3 |
| Number of Speeds | 3 |
| Oscillation | Oscillating |
| Phase | 1 |
| RPM | 1025/880/480 |
| Shaft Dia. | 1/2", 1/2 in |
| SKU | ZO-G0365337 |
| Sound Level | 69.4/65.1/48.6 dBA |
| Standards | CETL, ETL, OSHA, ETL/CE. |
| Thermal Protection | Auto |
| UPC | 190735229835 |
| Voltage | 115VAC, 115 V AC |
| Watts | 250/190/70 |
| Wheeled Base | Stationary |
| Width | 27", 27 in |
| Wire Guard Finish | Black Polyester Powder . |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | WWG2RDZ8 | 517.80451652 | 1 | In Stock | | DAYTON | 49.5 | 517.80451652 @ 1 |
 | Zoro | G0365337 | 525.85 | 1 | 81 | | Dayton | 49.5 | 525.85 @ 1 |
| AmazonTP | B00BUABBTS | 544.54 | 1 | In Stock | 2 | Dayton | | 544.54 @ 1 |
 | sustainablesupply.com | C1133595 | 554.28 | 1 | In Stock | | Dayton | 49.5 | 554.28 @ 1 |
 | simsupply.com | ZO-G0365337 | 610.06 | 1 | 42 | | Dayton | | 610.06 @ 1 |
 | Raptor Supplies | AC3BTV | 769.0161375 | 1 | In Stock | | DAYTON | | 769.0161375 @ 1 |
