Dayton 2ZWN9

B001QRL8V6

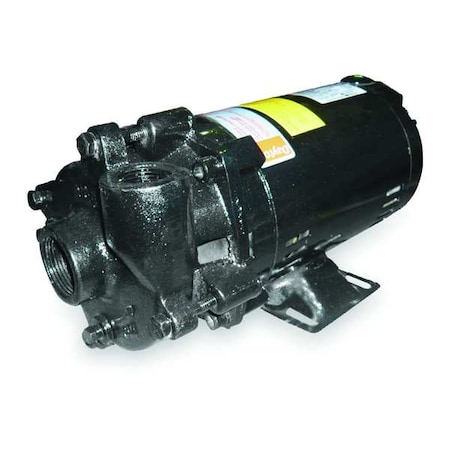

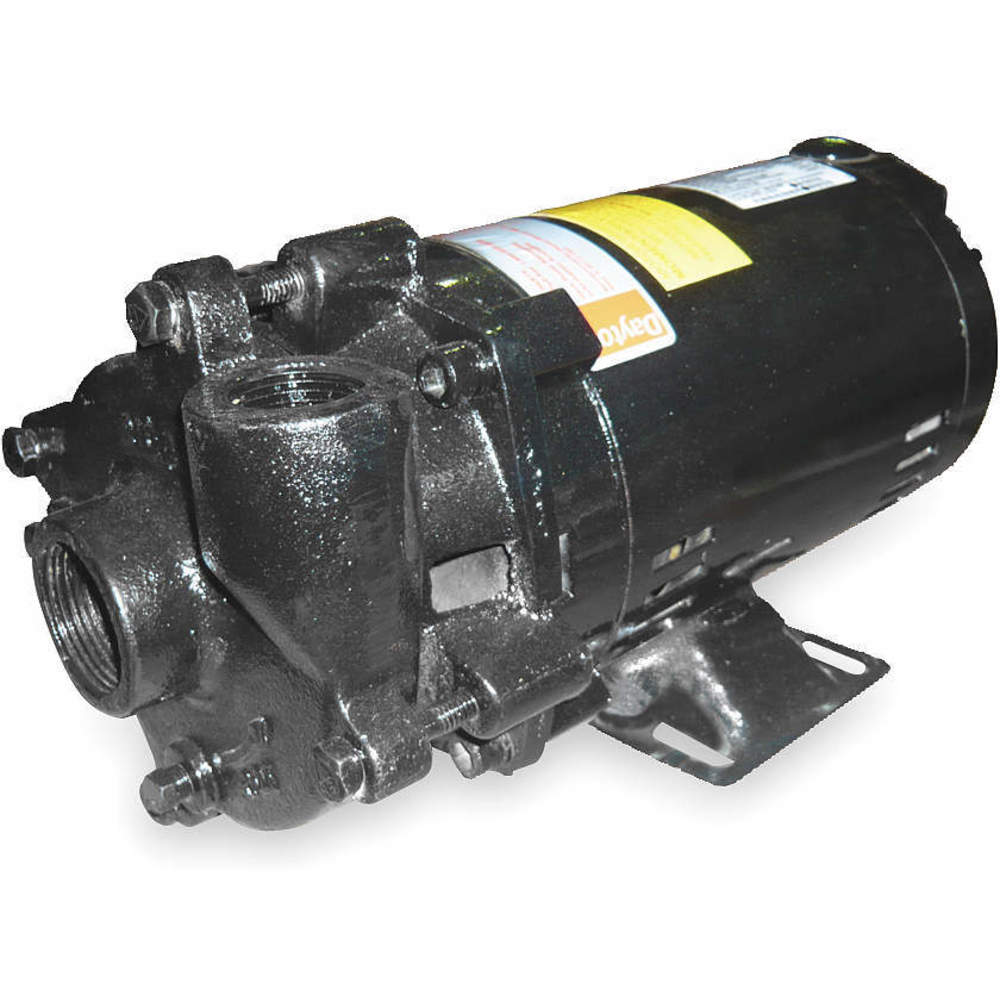

Pump, Centrifugal, 1/3 HP, 1 Ph, 115/230V

Pump, Centrifugal, 1/3 HP, 1 Ph, 115/230Vzoom

Attributes

Key Value
Agency Compliancec UL us
Amps7.5/3.8
Bearing TypeBall
Best Efficiency Flow30 gpm
Best Efficiency GPM @ H.30 gpm @ 26 ft
Best Efficiency Head26 ft
Best Efficiency Range G.29 to 18 gpm @ 25 to 37.
BrandDayton
Compatible Discharge Pi.3/4 in
Compatible Intake Pipe .1 in
Country of Origin (subj.India
Current Stock8
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
DutyContinuous
Duty CycleContinuous
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 10 ft of He.41 gpm
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 120 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.37 gpm
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.34 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 30 ft of He.25 gpm
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.0 gpm
Flow Rate @ 5 ft of Hea.Not Applicable
Flow Rate @ 50 ft of He.Not Applicable
Flow Rate @ 60 ft of He.Not Applicable
Flow Rate @ 70 ft of He.Not Applicable
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
For Use With Potable Sy.No
Frame56J
Frequency60 Hz
GPM of Water @ 10 Ft. o.41
GPM of Water @ 15 Ft. o.37
GPM of Water @ 20 Ft. o.34
GPM of Water @ 25 Ft. o.29
GPM of Water @ 30 Ft. o.25
GPM of Water @ 40 Ft. o.10
Height5 7/8 in
Horsepower1/3 hp
Housing MaterialCast Iron
Housing Material - PumpsCast Iron
HP1/3
HP - Pumps1/3 hp
Hz60
Impeller DesignSemi-Open
Impeller MaterialCast Iron, Cast-Iron
Impeller TypeSemi Open
IncludesManual
Inlet1" NPT
Inlet Pressure200 psi
Inlet Size - Pumps1 in NPT
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump, Pump
Item - Straight Centrif.Straight Centrifugal Hi.
Length13 in
Length (Straight Wirewa.13 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Case Pressure200 psi
Max. Dia. Solids23/64 in
Max. GPM @ Head41 gpm @ 10 ft
Max. Head44 ft
Max. Liquid Temp.200 Degrees F
Max. Pressure19.04 psi
Max. Pressure - Pumps19 psi
Max. Specific Gravity1.0
Maximum Feet of Head40 ft
Maximum Flow Rate41 gpm
Maximum Media Temperatu.200 Degrees F
Maximum RPM3,450 RPM
Min. GPM @ Head10 gpm @ 40 ft
Motor EnclosureODP
Motor Enclosure - PumpsOpen Dripproof
Motor Frame Designation56J
Motor RPM3450
Motor TypeCapacitor Start
Mpn2ZWN9
Nameplate Voltage115/230V AC
Outlet3/4" NPT
Outlet Size - Pumps3/4 in NPT
Overall Height5.8 in
Overall Length13 in
Overall Width5.8 in
Phase1
Phase - Pumps1
Port Rotation4 Position Increments
Prop 65WARNING: Cancer and Rep.
Pump Housing MaterialCast Iron
Seal MaterialBuna-N, Carbon, Ceramic.
Seal TypeMechanical
Shaft MaterialStainless Steel
Shut Off Pressure (Maxi.19 psi
SKUZO-G1356722
Solid Diameter (Maximum)0.36 in
Specific Gravity (Maxim.1
StandardscULus Listed
SubCategoryPumps
UPC190735241745
Voltage115/230
Voltage - Pumps115/230V AC
Wetted MaterialBuna-N, Carbon, Cast Ir.
Wetted MaterialsBuna-N, Carbon, Cast Ir.
Width5 7/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caGGM2ZWN9302.276424821In StockDAYTON33.14302.27642482 @ 1
thumbzoomZoroG1356722317.71In Stock26Dayton33.14317.7 @ 1
AmazonTPB001QRL8V6351.91In Stock2Dayton351.9 @ 1
AmazonUNKB001QRL8V6351.91In StockDayton351.9 @ 1
thumbzoomsustainablesupply.comC1740476364.811In StockDayton33.14364.81 @ 1
thumbzoomsimsupply.comZO-G1356722371.6718Dayton371.67 @ 1
thumbzoomRaptor SuppliesAC4HLZ668.7339751In StockDAYTON668.733975 @ 1
