Dayton 2ZWP3

B001QRL10E

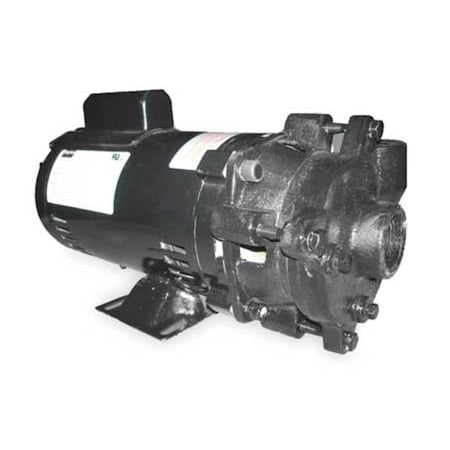

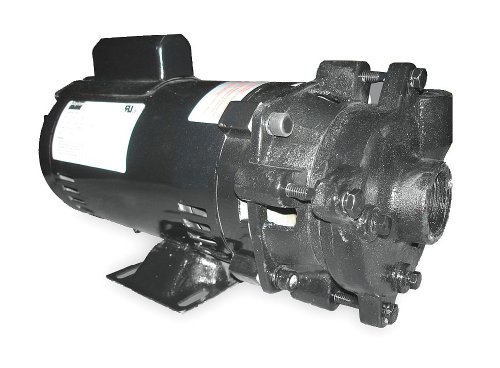

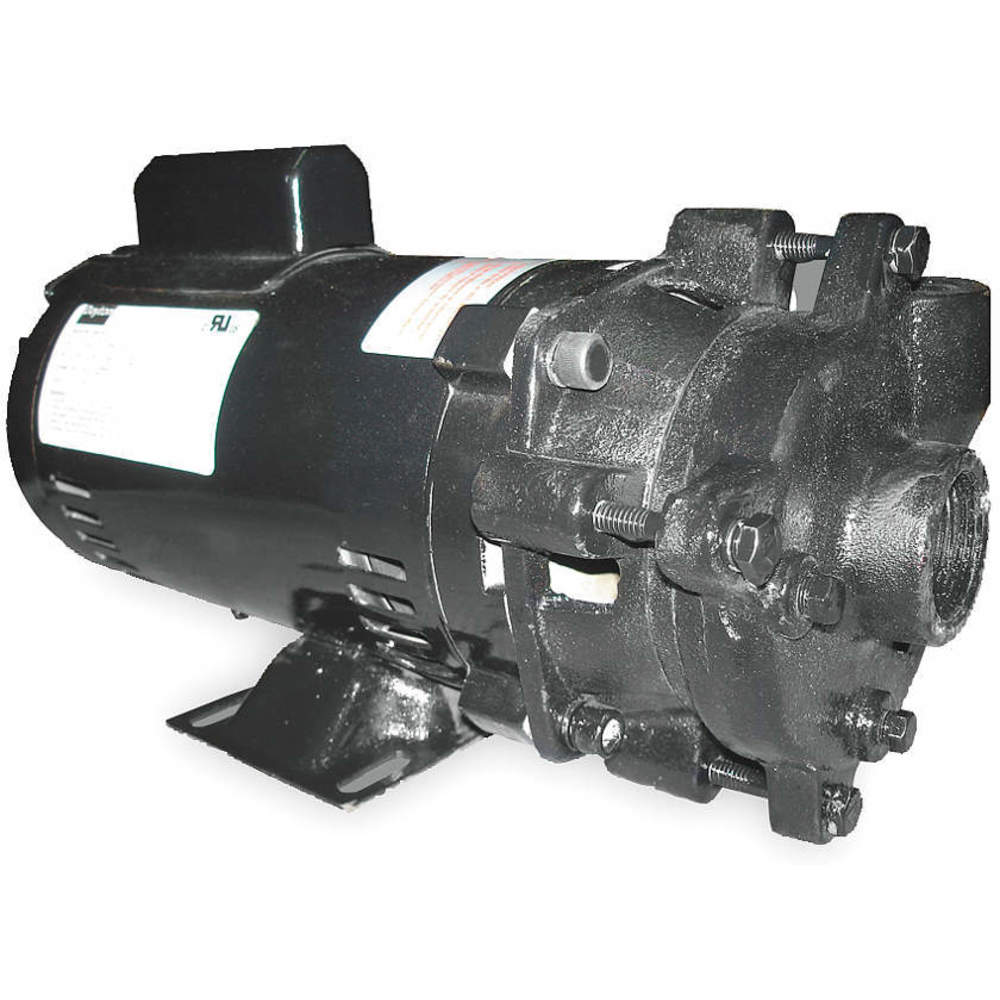

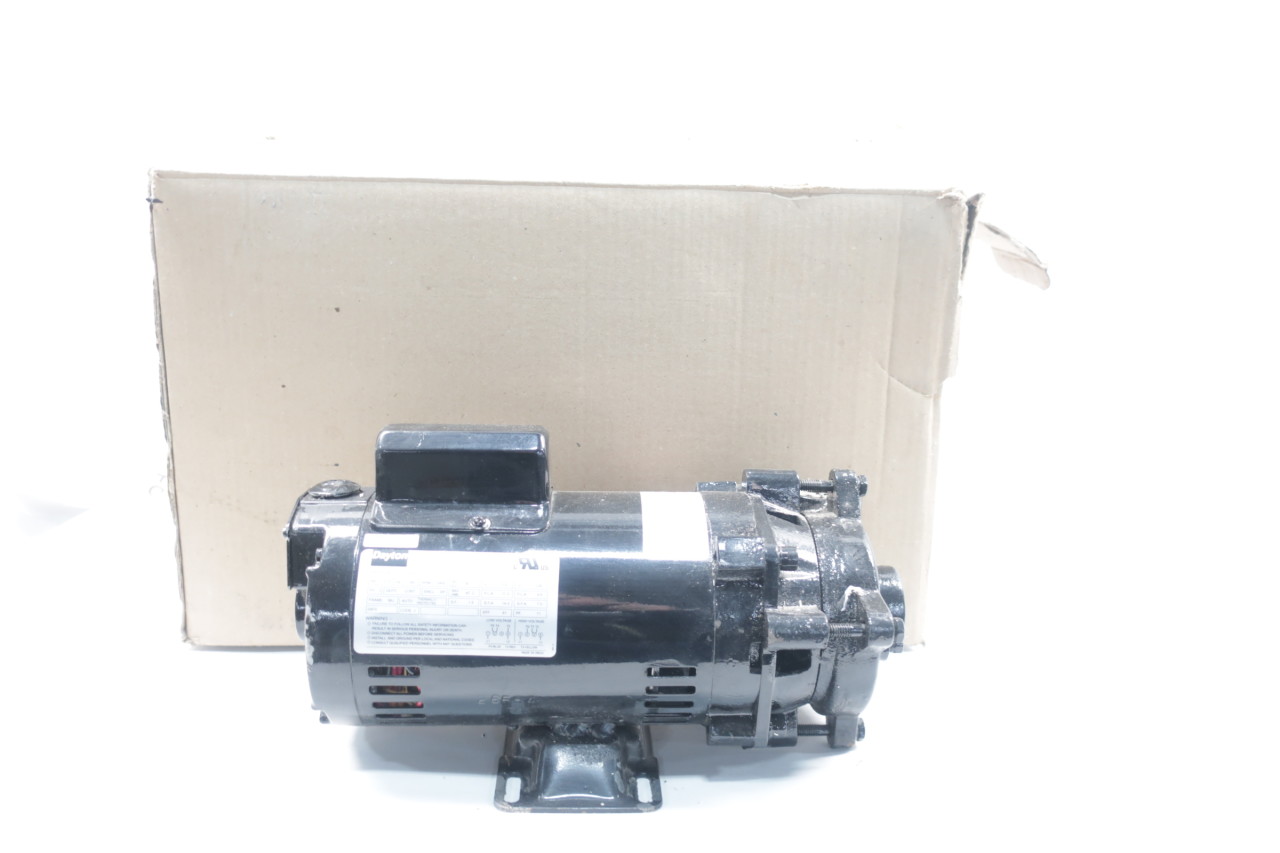

Pump,3/4 HP,1 Ph,120/240VAC

Pump,3/4 HP,1 Ph,120/240VACzoom

Attributes

Key Value
Best Efficiency Flow47 gpm
Best Efficiency Head36 ft
BrandDayton
Compatible Discharge Pi.1 in
Compatible Intake Pipe .1 1/4 in
Compatible with Media T.Non-Flammable Liquids
Current Stock26
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 10 ft of He.72 gpm
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 120 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.67 gpm
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.63 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 30 ft of He.53 gpm
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.41 gpm
Flow Rate @ 5 ft of Hea.Not Applicable
Flow Rate @ 50 ft of He.22 gpm
Flow Rate @ 60 ft of He.Not Applicable
Flow Rate @ 70 ft of He.Not Applicable
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
For Use With Potable Sy.No
Frequency60 Hz
Height5 7/8 in
Horsepower3/4 hp
Housing Material - PumpsCast Iron
HP - Pumps3/4 hp
Impeller DesignSemi-Open
Impeller MaterialCast Iron
IncludesManual
Inlet Size - Pumps1-1/4 in NPT
Intake and Discharge Si.1 1/4 in , 1 in
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Length13 1/2 in
Length (Straight Wirewa.13 1/2 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Dia. Solids1/2 in
Max. Head55 ft
Max. Pressure - Pumps24 psi
Maximum Feet of Head50 ft
Maximum Flow Rate72 gpm
Maximum Media Temperatu.200 Degrees F
Maximum RPM3,450 RPM
Minimum Flow Rate22 gpm
Minimum Media Temperatu.40 Degrees F
Motor EnclosureOpen Dripproof
Motor Enclosure - PumpsOpen Dripproof
Motor Frame Designation56J
Motor TypeCapacitor-Start
Mpn2ZWP3
Nameplate Voltage115/230V AC
Outlet Size - Pumps1 in NPT
Overall Height5.8 in
Overall Length14.5 in
Overall Width6.6 in
PhaseSingle
Phase - Pumps1
Prop 65WARNING: Cancer and Rep.
Pump Housing MaterialCast Iron
Pumping ApplicationAggressive Liquid Appli.
Seal MaterialBuna-N
Seal TypeMechanical
Shaft Material304 Stainless Steel
Shut Off Pressure (Maxi.24 psi
SKUZO-G2886694
Solid Diameter (Maximum)0.5 in
Specific Gravity (Maxim.1
StandardscULus Listed
SubCategoryPumps
UPC190735241776
Voltage - Pumps120/240V AC
Wetted MaterialBuna-N, Carbon, Cast Ir.
Width6 5/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD652278349.991In StockDAYTON349.99 @ 1
thumbzoomZoroG2886694366.32139Dayton35.0366.32 @ 1
grainger.caGGM2ZWP3388.683629121In StockDAYTON35.0388.68362912 @ 1
thumbzoomsimsupply.comZO-G2886694425.01126Dayton425.01 @ 1
AmazonTPB001QRL10E445.251In Stock2Dayton445.25 @ 1
thumbzoomsustainablesupply.comC1740479506.861In StockDayton35.0506.86 @ 1
thumbzoomRaptor SuppliesAC4HMC619.8387391In StockDAYTON619.838739 @ 1
