Dayton ARDUPG1934091L12C

B00F1I6TC4

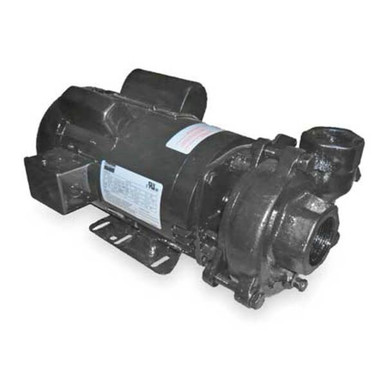

Dayton Cast Iron 3 HP Centrifugal Pump 230V, 2ZWR2

Dayton Cast Iron 3 HP Centrifugal Pump 230V, 2ZWR2zoom

Attributes

Key Value
Agency Compliancec UL us
Amps12.5
Bearing TypeBall
Best Efficiency Flow95 gpm
Best Efficiency GPM @ H.95 gpm @ 57 ft
Best Efficiency Head57 ft
Best Efficiency Range G.30 to 140 gpm @ 75 to 3.
BrandDayton
Compatible Discharge Pi.1 1/2 in
Compatible Intake Pipe .2 in
Compatible with Media T.Non-Flammable Liquids
Current Stock3
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
DutyContinuous
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 10 ft of He.170 gpm
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 120 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.166 gpm
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.162 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 30 ft of He.146 gpm
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.130 gpm
Flow Rate @ 5 ft of Hea.Not Applicable
Flow Rate @ 50 ft of He.110 gpm
Flow Rate @ 60 ft of He.82 gpm
Flow Rate @ 70 ft of He.35 gpm
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
For Use With Potable Sy.No
Frame56J
Frequency60 Hz
GPM of Water @ 10 Ft. o.170
GPM of Water @ 15 Ft. o.166
GPM of Water @ 20 Ft. o.162
GPM of Water @ 25 Ft. o.154
GPM of Water @ 30 Ft. o.146
GPM of Water @ 40 Ft. o.130
GPM of Water @ 50 Ft. o.110
GPM of Water @ 60 Ft. o.82
GPM of Water @ 70 Ft. o.35
Height7 in
Horsepower3 hp
Housing MaterialCast Iron
Housing Material - PumpsCast Iron
HP3
HP - Pumps3 hp
Hz60
Impeller DesignSemi-Open
Impeller MaterialCast Iron
Impeller TypeSemi Open
IncludesManual
Inlet2" NPT
Inlet Pressure200 psi
Inlet Size - Pumps2 in NPT
Intake and Discharge Si.2 in , 1 1/2 in
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Item - Straight Centrif.Straight Centrifugal Hi.
Lead TimeExpected to ship in 1-2.
Length14 13/16 in
Length (Straight Wirewa.14 13/16 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Case Pressure200 psi
Max. Dia. Solids1/2 in
Max. GPM @ Head170 gpm @ 10 ft
Max. Head74 ft
Max. Liquid Temp.200 Degrees F
Max. Pressure32.03 psi
Max. Pressure - Pumps32 psi
Max. Specific Gravity1.0
Maximum Feet of Head74 ft
Maximum Flow Rate170 gpm
Maximum Media Temperatu.200 Degrees F
Maximum RPM3,450 RPM
Min. GPM @ Head35 gpm @ 70 ft
Minimum Flow Rate35 gpm
Minimum Media Temperatu.40 Degrees F
Motor EnclosureTotally Enclosed Fan Co.
Motor Enclosure - PumpsTotally Enclosed Fan-Co.
Motor Enclosure BroadTEFC
Motor Enclosure TypeTEFC
Motor Frame Designation56J
Motor RPM3450
Motor TypeCapacitor-Start
Mpn2ZWR2
Nameplate Voltage230V AC
Nominal Voltage230V AC
Outlet1-1/2" NPT
Outlet Size - Pumps1-1/2 in NPT
Overall Height7 in
Overall Length17.5 in
Overall Width8 in
PhaseSingle
Phase - Pumps1
Port Rotation4 Position Increments
Prop 65WARNING: Cancer and Rep.
Pump Housing MaterialCast Iron
Pumping ApplicationAggressive Liquid Appli.
Seal MaterialBuna-N
Seal TypeMechanical
Shaft Material304 Stainless Steel
Shut Off Pressure (Maxi.32 psi
SKUZO-G1934091
Solid Diameter (Maximum)0.5 in
Specific Gravity (Maxim.1
StandardscULus Listed
SubCategoryPumps
UPC190735241851
Voltage230
Voltage - Pumps240V AC
Wetted MaterialBuna-N, Carbon, Cast Ir.
Wetted MaterialsBuna-N, Carbon, Cast Ir.
Width7 5/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caGGM2ZWR2749.43098531In StockDAYTON75.0749.4309853 @ 1
thumbzoomZoroG1934091906.11In StockDayton75.0906.1 @ 1
thumbzoomsimsupply.comZO-G19340911194.0913Dayton1194.09 @ 1
thumbzoomsustainablesupply.comC17404871493.771In StockDayton75.01493.77 @ 1
AmazonTPB00F1I6TC41839.181In Stock2Dayton1839.18 @ 1
AmazonUNKB00F1I6TC41839.181In StockDayton1839.18 @ 1
thumbzoomRaptor SuppliesAC4HML1964.55829051In StockDAYTON1964.5582905 @ 1
