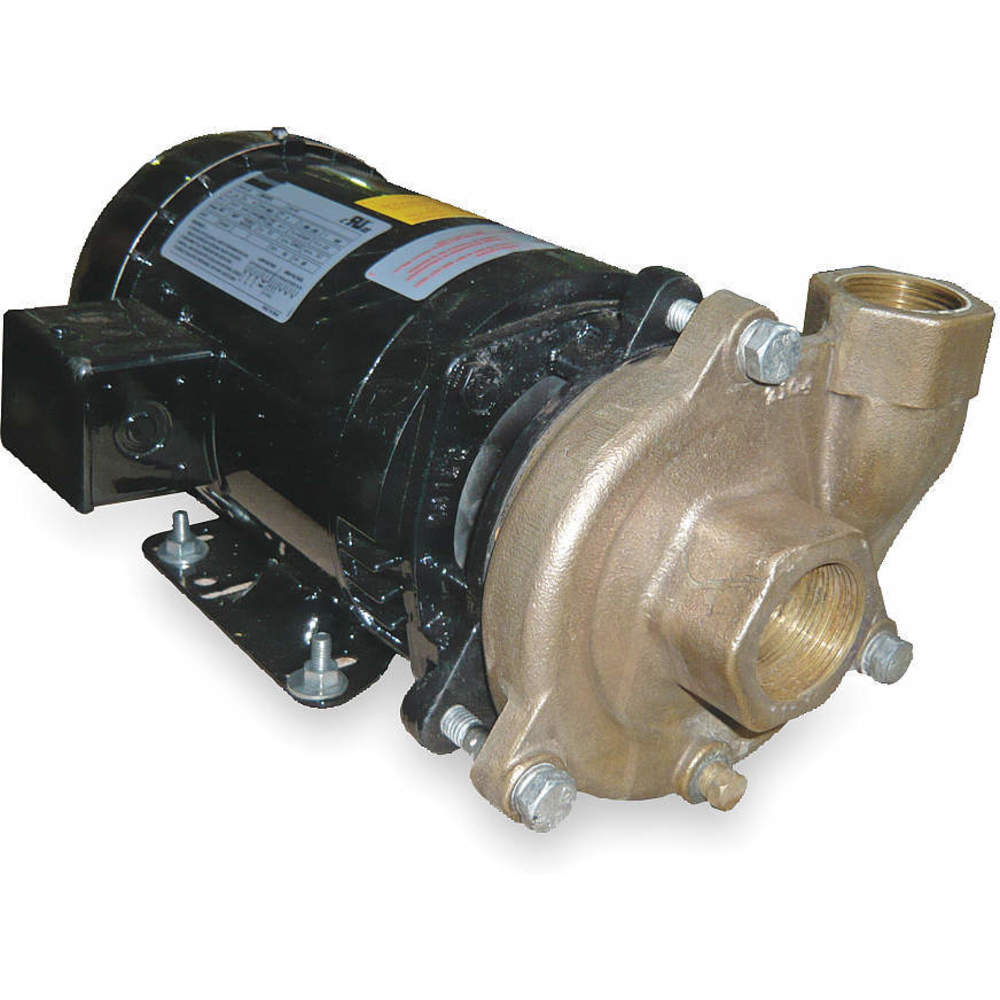

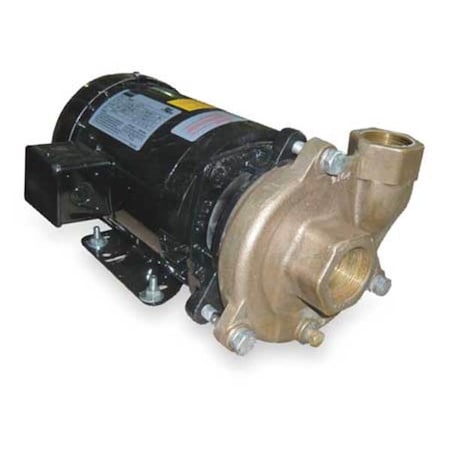

Dayton 2ZWT5

B00F1I2R0C

Pump,2 HP,3 Ph,208 to 240/480VAC

Pump,2 HP,3 Ph,208 to 240/480VACzoom

Attributes

Key Value
Best Efficiency Flow65 gpm
Best Efficiency Head52 ft
BrandDayton
Compatible Discharge Pi.1 1/4 in
Compatible Intake Pipe .1 1/2 in
Compatible with Media T.Non-Flammable Liquids
Current Stock7
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 10 ft of He.122 gpm
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 120 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.115 gpm
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.109 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 30 ft of He.98 gpm
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.84 gpm
Flow Rate @ 5 ft of Hea.Not Applicable
Flow Rate @ 50 ft of He.68 gpm
Flow Rate @ 60 ft of He.46 gpm
Flow Rate @ 70 ft of He.10 gpm
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
For Use With Potable Sy.No
Frequency60 Hz
GPM of Water @ 10 Ft. o.122
Height7 in
Horsepower2 hp
Housing Material - PumpsBrass, Bronze
HP - Pumps2 hp
Impeller DesignSemi-Open
Impeller MaterialBrass, Bronze
IncludesManual
Inlet Size - Pumps1-1/2 in NPT
Intake and Discharge Si.1 1/2 in , 1 1/4 in
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Length16 1/4 in
Length (Straight Wirewa.14 13/16 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Dia. Solids25/64 in
Max. Head72 ft
Max. Pressure - Pumps31 psi
Maximum Feet of Head72 ft
Maximum Flow Rate122 gpm
Maximum Media Temperatu.200 Degrees F
Maximum RPM3,450 RPM
Minimum Flow Rate10 gpm
Minimum Media Temperatu.40 Degrees F
Motor EnclosureTotally Enclosed Fan Co.
Motor Enclosure - PumpsTotally Enclosed Fan-Co.
Motor Frame Designation56J
Motor Type3-Phase
Mpn2ZWT5
Nameplate Voltage208-230/460V AC
Outlet Size - Pumps1-1/4 in NPT
Overall Height7 in
Overall Length15.5 in
Overall Width7.4 in
PhaseThree
Phase - Pumps3
Prop 65WARNING: Cancer and Rep.
Pump Housing MaterialBronze
Pumping ApplicationAggressive Liquid Appli.
Seal MaterialBuna-N
Seal TypeMechanical
Shaft Material304 Stainless Steel
Shut Off Pressure (Maxi.31 psi
SKUZO-G1539955
Solid Diameter (Maximum)0.39 in
Specific Gravity (Maxim.1
StandardscULus Listed
SubCategoryPumps
UPC190735241974
Voltage - Pumps208 to 240/480V AC
Wetted MaterialBrass, Bronze, Buna-N, .
Width7 5/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caGGM2ZWT5907.997822121In StockDAYTON52.75907.99782212 @ 1
thumbzoomZoroG15399551073.04111Dayton52.751073.04 @ 1
simsupply.comZO-G15399551244.7417Dayton1244.74 @ 1
AmazonTPB00F1I2R0C1590.631In Stock2Dayton1590.63 @ 1
AmazonUNKB00F1I2R0C1590.631In StockDayton1590.63 @ 1
thumbzoomRaptor SuppliesAC4HMZ1937.5519411In StockDAYTON1937.551941 @ 1
