- mpn2ZWT6
- brandname: DAYTON
- manufacturername: DAYTON

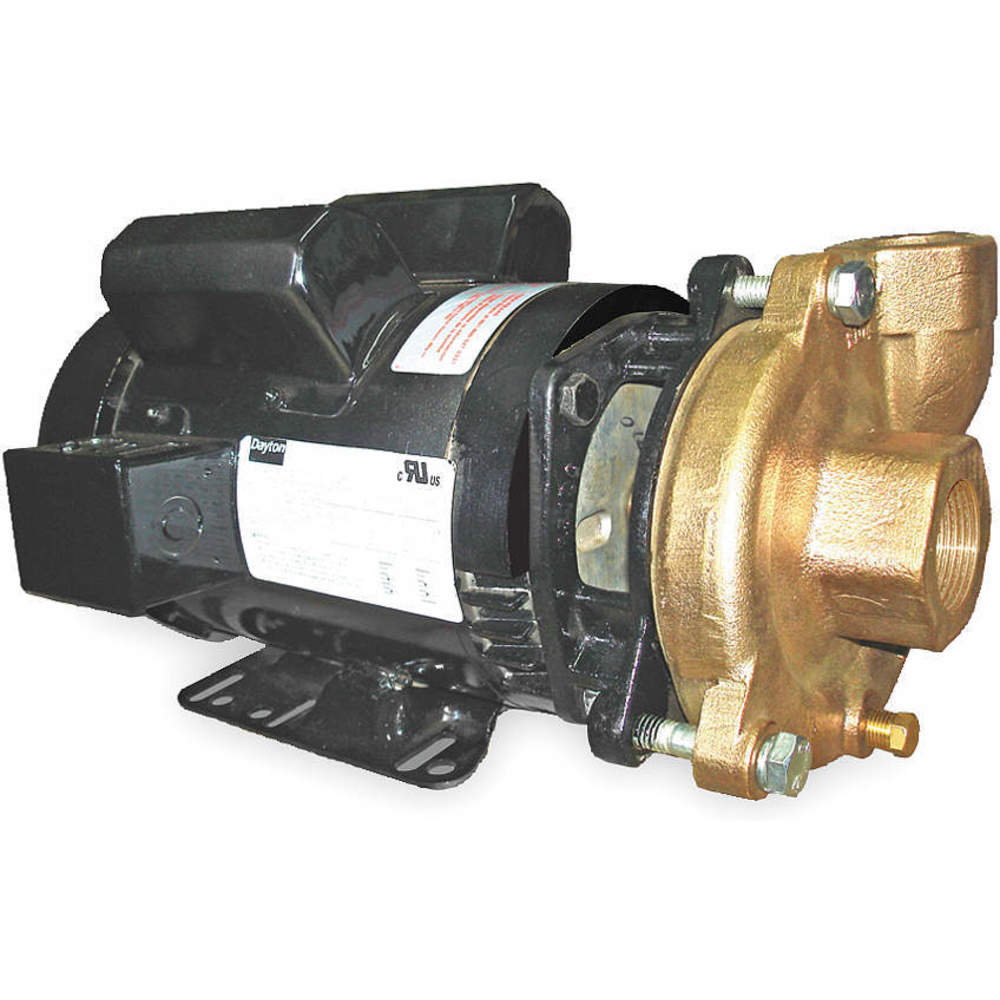

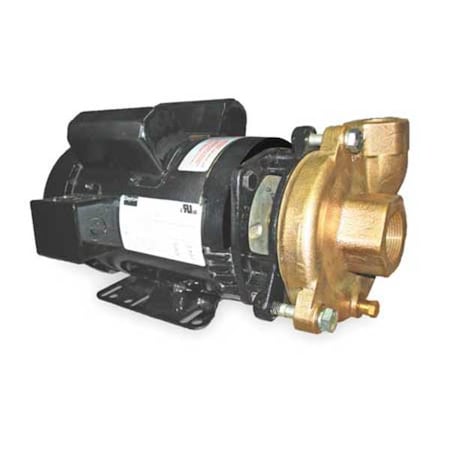

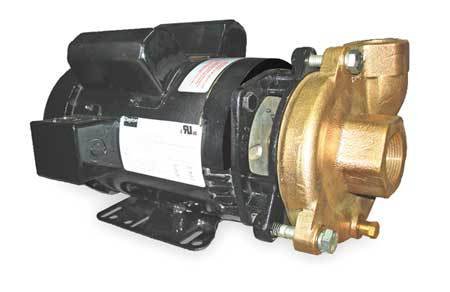

DAYTON 2ZWT6 Pump,3 HP,1 Ph,240VAC
- Brand: Dayton
- PartNumber: 2ZWT6
- Model: 2ZWT6
- PackageQuantity: 1
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Agency Compliance | c UL us |
| Amps | -/12.5 |
| Bearing Type | Ball |
| Best Efficiency GPM @ H. | 95 gpm @ 57 ft |
| Best Efficiency Head | 57 ft |
| Best Efficiency Range G. | 30 to 140 gpm @ 75 to 3. |
| Compatible Discharge Pi. | 1 1/2 in |
| Compatible Intake Pipe . | 2 in |
| Discharge Rotation | 90 Degrees Increments |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Features | Continuous High Pressur. |
| Flow Rate @ 10 ft of He. | 170 gpm |
| Flow Rate @ 140 ft of H. | Not Applicable |
| Flow Rate @ 15 ft of He. | 166 gpm |
| Flow Rate @ 160 ft of H. | Not Applicable |
| Flow Rate @ 180 ft of H. | Not Applicable |
| Flow Rate @ 220 ft of H. | Not Applicable |
| Flow Rate @ 240 ft of H. | Not Applicable |
| Flow Rate @ 260 ft of H. | Not Applicable |
| Flow Rate @ 300 ft of H. | Not Applicable |
| Flow Rate @ 5 ft of Hea. | Not Applicable |
| Flow Rate @ 50 ft of He. | 110 gpm |
| Flow Rate @ 70 ft of He. | 35 gpm |
| Flow Rate @ 80 ft of He. | Not Applicable |
| For Use With Potable Sy. | No |
| Frame | 56J |
| Frequency | 60 Hz |
| GPM of Water @ 10 Ft. o. | 170 |
| GPM of Water @ 15 Ft. o. | 166 |
| GPM of Water @ 20 Ft. o. | 162 |
| GPM of Water @ 25 Ft. o. | 154 |
| GPM of Water @ 30 Ft. o. | 146 |
| GPM of Water @ 40 Ft. o. | 130 |
| GPM of Water @ 50 Ft. o. | 110 |
| GPM of Water @ 60 Ft. o. | 82 |
| GPM of Water @ 70 Ft. o. | 35 |
| Height | 7 in |
| Horsepower | 3 hp |
| Housing Material | Bronze, Brass |
| Housing Material - Pumps | Brass, Bronze |
| HP | 3 |
| HP - Pumps | 3 hp |
| Hz | 60 |
| Impeller Design | Semi-Open |
| Impeller Material | Brass, Bronze |
| Impeller Type | Semi Open |
| Includes | Manual |
| Inlet | 2" NPT |
| Inlet Pressure | 200 psi |
| Inlet Size - Pumps | 2 in NPT |
| Intake and Discharge Si. | 2 in , 1 1/2 in |
| Item | Centrifugal Pump |
| Item - Straight Centrif. | Straight Centrifugal Hi. |
| Length | 14 13/16 in |
| Length (Straight Wirewa. | 14 13/16 in |
| Manufacturer Warranty L. | 1 yr |
| Manufacturers Warranty . | 1 yr |
| Max. Case Pressure | 200 psi |
| Max. Dia. Solids | 1/2 in |
| Max. GPM @ Head | 170 gpm @ 10 ft |
| Max. Head | 74 ft |
| Max. Liquid Temp. | 200 Degrees F |
| Max. Pressure | 32.03 psi |
| Max. Pressure - Pumps | 32 psi |
| Max. Specific Gravity | 1.0 |
| Min. GPM @ Head | 35 gpm @ 70 ft |
| Minimum Flow Rate | 35 gpm |
| Minimum Media Temperatu. | 40 Degrees F |
| Motor Enclosure | Totally Enclosed Fan Co. |
| Motor Enclosure - Pumps | Totally Enclosed Fan-Co. |
| Motor Enclosure Broad | TEFC |
| Motor Enclosure Type | TEFC |
| Motor Frame Designation | 56J |
| Motor RPM | 3450 |
| Motor Type | Capacitor-Start |
| Nameplate Voltage | 230V AC |
| Outlet | 1-1/2" NPT |
| Outlet Size - Pumps | 1-1/2 in NPT |
| Overall Height | 7 in |
| Overall Length | 17.5 in |
| Overall Width | 8 in |
| Phase | Single |
| Phase - Pumps | 1 |
| Port Rotation | 4 Position Increments |
| Pump Housing Material | Bronze |
| Pump Housing Material B. | Brz |
| Pumping Application | Aggressive Liquid Appli. |
| Seal Material | Buna-N |
| Shaft Material | 304 Stainless Steel |
| Shut Off Pressure (Maxi. | 32 psi |
| Specific Gravity (Maxim. | 1 |
| Standards | cULus Listed |
| Voltage | 230 |
| Voltage - Pumps | 240V AC |
| Wetted Material | Brass, Bronze, Buna-N, . |
| Wetted Materials | Brass, Bronze, Buna-N, . |
| Width | 7 5/8 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0417986 | 1462.21 | 1 | In Stock | 26 | Dayton | 111.0 | 1462.21 @ 1 |
 | sustainablesupply.com | C1705308 | 2010.92 | 1 | In Stock | | Dayton | 111.0 | 2010.92 @ 1 |
 | Raptor Supplies | AC4HNA | 2426.9177205 | 1 | In Stock | | DAYTON | | 2426.9177205 @ 1 |
