Dayton 2ZWT7

B00F1ICEUU

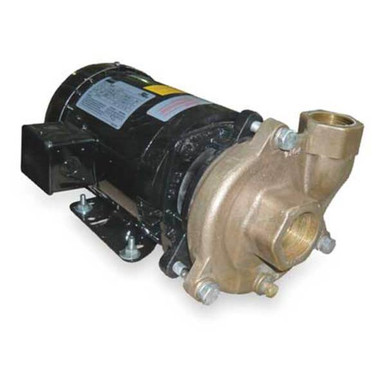

Dayton Bronze/Brass 3 HP Centrifugal Pump 208-230/460V, 2ZWT7

Dayton Bronze/Brass 3 HP Centrifugal Pump 208-230/460V, 2ZWT7zoom

Attributes

Key Value
Agency Compliancec UL us
Amps8.3-7.6/3.8
Bearing TypeBall
Best Efficiency GPM @ H.95 gpm @ 57 ft
Best Efficiency Head57 ft
Best Efficiency Range G.30 to 140 gpm @ 75 to 3.
BrandDayton
Compatible Discharge Pi.1 1/2 in
Compatible Intake Pipe .2 in
Compatible with Media T.Non-Flammable Liquids
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
DutyContinuous
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 10 ft of He.170 gpm
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.166 gpm
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.162 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 30 ft of He.146 gpm
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.130 gpm
For Use With Potable Sy.No
Frame56J
Frequency60 Hz
GPM of Water @ 10 Ft. o.170
GPM of Water @ 15 Ft. o.166
GPM of Water @ 20 Ft. o.162
GPM of Water @ 25 Ft. o.154
GPM of Water @ 30 Ft. o.146
GPM of Water @ 40 Ft. o.130
GPM of Water @ 50 Ft. o.110
GPM of Water @ 60 Ft. o.82
GPM of Water @ 70 Ft. o.35
Height7 in
Housing MaterialBronze, Brass
Housing Material - PumpsBrass, Bronze
HP3
HP - Pumps3 hp
Hz60
Impeller MaterialBrass, Bronze
Impeller TypeSemi Open
IncludesManual
Inlet2" NPT
Inlet Pressure200 psi
Inlet Size - Pumps2 in NPT
Intake and Discharge Si.2 in , 1 1/2 in
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Item - Straight Centrif.Straight Centrifugal Hi.
Lead TimeExpected to ship in 1-2.
Length17 5/8 in
Length (Straight Wirewa.14 13/16 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Case Pressure200 psi
Max. Dia. Solids1/2 in
Max. GPM @ Head170 gpm @ 10 ft
Max. Head74 ft
Max. Liquid Temp.200 Degrees F
Max. Pressure32.03 psi
Max. Pressure - Pumps32 psi
Max. Specific Gravity1.0
Maximum Feet of Head74 ft
Maximum Flow Rate170 gpm
Min. GPM @ Head35 gpm @ 70 ft
Minimum Flow Rate35 gpm
Motor EnclosureTotally Enclosed Fan Co.
Motor Enclosure - PumpsTotally Enclosed Fan-Co.
Motor Enclosure TypeTEFC
Motor RPM3450
Motor Type3-Phase
Mpn2ZWT7
Nameplate Voltage208-230/460V AC
Nominal Voltage208-230/460V AC
Outlet1-1/2" NPT
Outlet Size - Pumps1-1/2 in NPT
Overall Height7 in
Overall Length17.5 in
Overall Width8 in
PhaseThree
Phase - Pumps3
Phase Broad3
Port Rotation4 Position Increments
Prop 65WARNING: Cancer and Rep.
Seal MaterialBuna-N
Seal TypeMechanical
Shaft Material304 Stainless Steel
Shut Off Pressure (Maxi.32 psi
SKUZO-G2988763
Solid Diameter (Maximum)0.5 in
StandardscULus Listed
SubCategoryPumps
UPC190735241998
Voltage208-230/460
Voltage - Pumps208 to 240/480V AC
Wetted MaterialBrass, Bronze, Buna-N, .
Wetted MaterialsBrass, Bronze, Buna-N, .
Width9 1/2 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG29887631268.151In StockDayton75.01268.15 @ 1
thumbzoomsimsupply.comZO-G29887631481.631In StockDayton1481.63 @ 1
thumbzoomsustainablesupply.comC17405001776.541In StockDayton75.01776.54 @ 1
AmazonTPB00F1ICEUU1951.321In Stock3Dayton1951.32 @ 1
thumbzoomRaptor SuppliesAC4HNB2259.6169051In StockDAYTON2259.616905 @ 1
