Dayton 2ZWU1

B001QRJ5IY

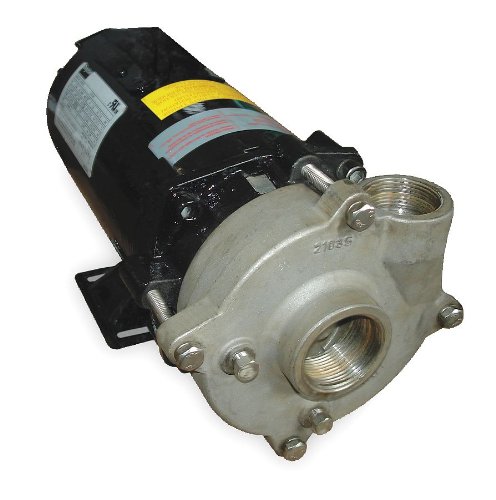

Dayton 2ZWU1 Pump, Centrifugal, 1/2 HP, 3 Ph, 230/460V

Dayton 2ZWU1 Pump, Centrifugal, 1/2 HP, 3 Ph, 230/460Vzoom

Attributes

Key Value
Agency Compliancec UL us
Amps1.8-1.7/0.9
Bearing TypeBall
Best Efficiency Flow38 gpm
Best Efficiency GPM @ H.38 gpm @ 27 ft
Best Efficiency Head27 ft
Best Efficiency Range G.19 to 63 gpm @ 35 to 15.
BrandDayton
Compatible Discharge Pi.1 in
Compatible Intake Pipe .1 1/4 in
Compatible with Media T.Non-Flammable Liquids
Current Stock3
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
DutyContinuous
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 10 ft of He.67 gpm
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 120 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.63 gpm
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.57 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 30 ft of He.40 gpm
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.10 gpm
Flow Rate @ 5 ft of Hea.Not Applicable
Flow Rate @ 50 ft of He.Not Applicable
Flow Rate @ 60 ft of He.Not Applicable
Flow Rate @ 70 ft of He.Not Applicable
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
For Use With Potable Sy.No
Frame56J
Frequency60 Hz
GPM of Water @ 10 Ft. o.67
GPM of Water @ 15 Ft. o.63
GPM of Water @ 20 Ft. o.57
GPM of Water @ 25 Ft. o.48
GPM of Water @ 30 Ft. o.40
GPM of Water @ 40 Ft. o.10
Height5 7/8 in
Horsepower1/2 hp
Housing MaterialStainless Steel
Housing Material - PumpsStainless Steel
HP1/2
HP - Pumps1/2 hp
Hz60
Impeller DesignSemi-Open
Impeller MaterialStainless Steel
Impeller TypeSemi Open
IncludesManual
Inlet1-1/4" NPT
Inlet Pressure200 psi
Inlet Size - Pumps1-1/4 in NPT
Intake and Discharge Si.1 1/4 in , 1 in
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Item - Straight Centrif.Straight Centrifugal Hi.
Lead TimeExpected to ship in 1-2.
Length13 1/2 in
Length (Straight Wirewa.13 1/2 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Case Pressure200 psi
Max. Dia. Solids7/16 in
Max. GPM @ Head67 gpm @ 10 ft
Max. Head44 ft
Max. Liquid Temp.200 Degrees F
Max. Pressure19.04 psi
Max. Pressure - Pumps19 psi
Max. Specific Gravity1.0
Maximum Feet of Head44 ft
Maximum Flow Rate67 gpm
Maximum Media Temperatu.200 Degrees F
Maximum RPM3,450 RPM
Min. GPM @ Head10 gpm @ 40 ft
Minimum Flow Rate10 gpm
Minimum Media Temperatu.40 Degrees F
Motor EnclosureOpen Dripproof (ODP), O.
Motor Enclosure - PumpsOpen Dripproof
Motor Enclosure BroadODP
Motor Enclosure TypeODP
Motor Frame Designation56J
Motor RPM3450
Motor Type3-Phase
Mpn2ZWU1
Nameplate Voltage208-230/460V AC
Nominal Voltage208-230/460V AC
Outlet1" NPT
Outlet Size - Pumps1 in NPT
Overall Height5.8 in
Overall Length13.6 in
Overall Width6.6 in
PhaseThree
Phase - Pumps3
Port Rotation4 Position Increments
Prop 65WARNING: Cancer and Rep.
Pump Housing MaterialStainless Steel
Pump Housing Material B.SS
Pumping ApplicationAggressive Liquid Appli.
Seal MaterialViton
Seal TypeMechanical
Shaft Material304 Stainless Steel
Shut Off Pressure (Maxi.19 psi
SKUZO-G2504047
Solid Diameter (Maximum)0.44 in
Specific Gravity (Maxim.1
StandardscULus Listed
SubCategoryPumps
UPC190735242025
Voltage208-230/460
Voltage - Pumps208 to 240/480V AC
Wetted MaterialCarbon, Ceramic, Stainl.
Wetted MaterialsCarbon, Ceramic, Stainl.
Width6 5/8 in
