Dayton 2ZWU2

B001QRN2LK

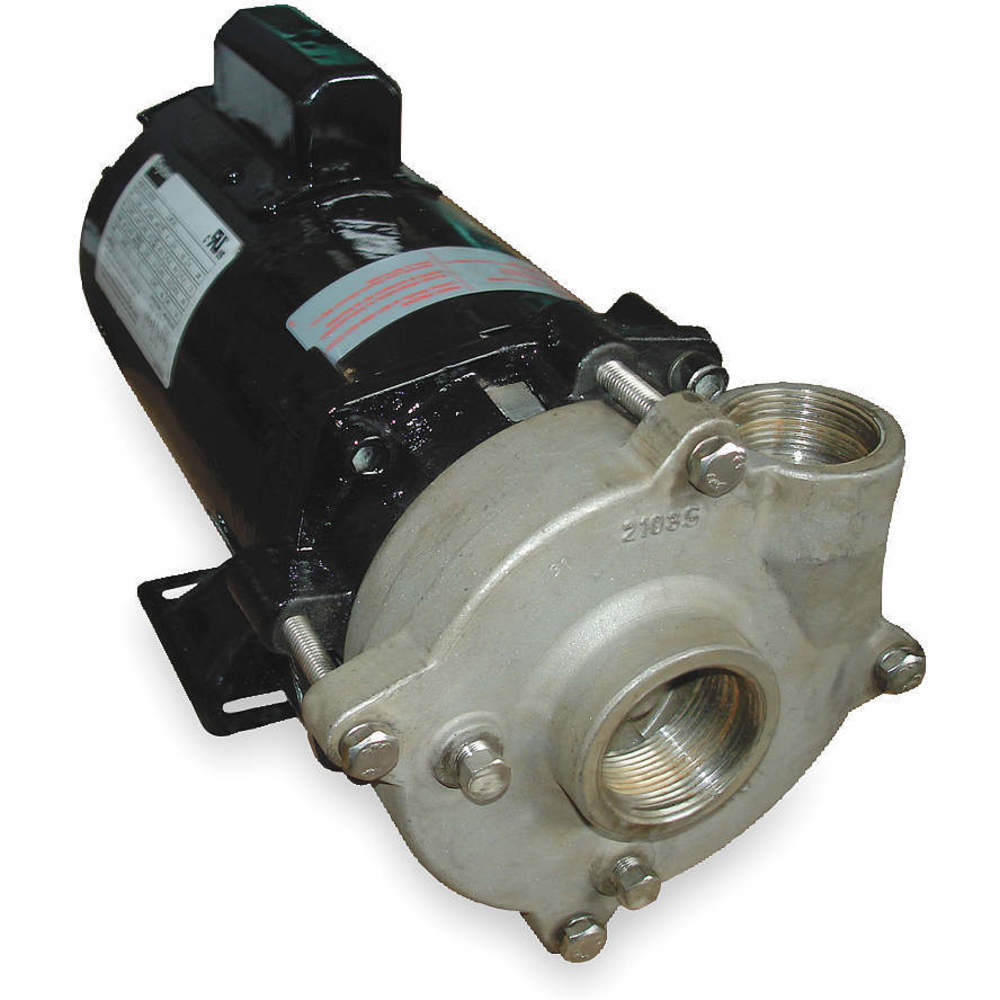

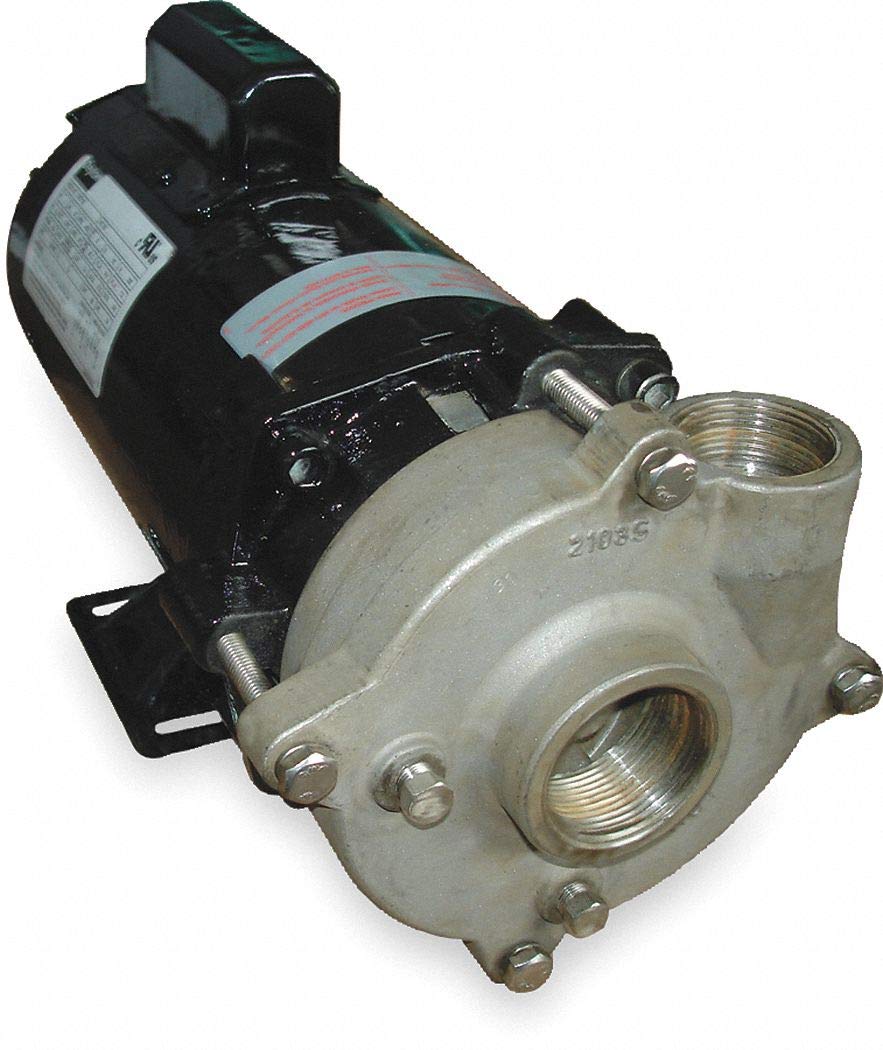

Dayton 2ZWU2 Pump, Centrifugal, 3/4 HP, 1 Ph, 115/230V

Dayton 2ZWU2 Pump, Centrifugal, 3/4 HP, 1 Ph, 115/230Vzoom

Attributes

Key Value
Agency Compliancec UL us
Amps11.3/5.6
Bearing TypeBall
Best Efficiency Flow47 gpm
Best Efficiency GPM @ H.47 gpm @ 36 ft
Best Efficiency Range G.35 to 63 gpm @ 45 to 20.
BrandDayton
Compatible Discharge Pi.1 in
Compatible Intake Pipe .1 1/4 in
Current Stock9
Discharge Rotation90 Degrees Increments
Discharge TypeNPT
DutyContinuous
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 10 ft of He.72 gpm
Flow Rate @ 120 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.67 gpm
Flow Rate @ 160 ft of H.Not Applicable
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 300 ft of H.Not Applicable
Flow Rate @ 40 ft of He.41 gpm
Flow Rate @ 5 ft of Hea.Not Applicable
Flow Rate @ 50 ft of He.22 gpm
Flow Rate @ 60 ft of He.Not Applicable
Flow Rate @ 80 ft of He.Not Applicable
Flow Rate @ 90 ft of He.Not Applicable
For Use With Potable Sy.No
Frame56J
Frequency60 Hz
GPM of Water @ 10 Ft. o.72
GPM of Water @ 15 Ft. o.67
GPM of Water @ 20 Ft. o.63
GPM of Water @ 25 Ft. o.58
GPM of Water @ 30 Ft. o.53
GPM of Water @ 40 Ft. o.41
GPM of Water @ 50 Ft. o.22
Height5 7/8 in
Horsepower3/4 hp
Housing MaterialStainless Steel
Housing Material - PumpsStainless Steel
HP3/4
HP - Pumps3/4 hp
Hz60
Impeller MaterialStainless Steel
Impeller TypeSemi Open
IncludesManual
Inlet1-1/4" NPT
Inlet Pressure200 psi
Inlet Size - Pumps1-1/4 in NPT
International ShippingNo
ItemCentrifugal Pump
Item - Straight Centrif.Straight Centrifugal Hi.
Length13 1/2 in
Length (Straight Wirewa.13 1/2 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Case Pressure200 psi
Max. Dia. Solids1/2 in
Max. GPM @ Head72 gpm @ 10 ft
Max. Head55 ft
Max. Liquid Temp.200 Degrees F
Max. Pressure23.80 psi
Max. Pressure - Pumps24 psi
Max. Specific Gravity1.0
Maximum Feet of Head50 ft
Maximum RPM3,450 RPM
Min. GPM @ Head22 gpm @ 50 ft
Minimum Flow Rate22 gpm
Minimum Media Temperatu.40 Degrees F
Motor EnclosureOpen Dripproof (ODP)
Motor Enclosure - PumpsOpen Dripproof
Motor Enclosure TypeODP
Motor RPM3450
Motor TypeCapacitor-Start
Mpn2ZWU2
Nominal Voltage115/230V AC
Outlet1" NPT
Outlet Size - Pumps1 in NPT
Overall Height5.8 in
Overall Length14.5 in
Overall Width6.6 in
PhaseSingle
Phase - Pumps1
Phase Broad1
Port Rotation4 Position Increments
Prop 65WARNING: Cancer and Rep.
Pump Housing MaterialStainless Steel
Seal MaterialViton
Shut Off Pressure (Maxi.24 psi
SKUZO-G0979702
Solid Diameter (Maximum)0.5 in
Specific Gravity (Maxim.1
StandardscULus Listed
SubCategoryPumps
UPC190735242032
Voltage115/230
Voltage - Pumps120/240V AC
Wetted MaterialCarbon, Ceramic, Stainl.
Wetted MaterialsCarbon, Ceramic, Stainl.
Width6 5/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0979702634.731In StockDayton41.22634.73 @ 1
AmazonTPB001QRN2LK784.01In Stock5Dayton784.0 @ 1
thumbzoomAmazonSCB001QRN2LK784.01In StockDayton784.0 @ 1
thumbzoomsimsupply.comZO-G0979702826.021In StockDayton826.02 @ 1
thumbzoomsustainablesupply.comC1740504874.081In StockDayton41.22874.08 @ 1
thumbzoomRaptor SuppliesAC4HNF1074.92422051In StockDAYTON1074.9242205 @ 1
