- mpn2ZWY1
- brandname: DAYTON
- manufacturername: DAYTON

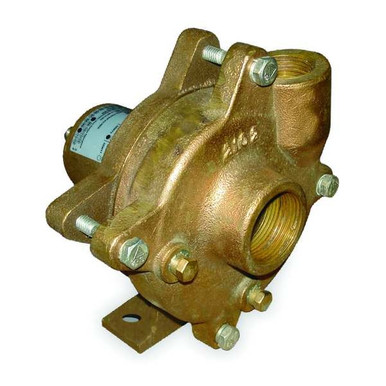

Dayton 2ZWY1 Pedestal Pump, Centrifugal, HP Req. 1/3
- Brand: Dayton
- PartNumber: 2ZWY1
- PackageQuantity: 1
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Agency Compliance | - |
| Bearing Type | Ball |
| Best Efficiency Flow | 30 gpm |
| Best Efficiency GPM @ H. | 30 @ 26 ft |
| Best Efficiency Head | 26 ft |
| Brand | Dayton |
| Color | Bronze |
| Compatible Discharge Pi. | 3/4 in |
| Compatible Intake Pipe . | 1 in |
| Compatible with Media T. | Non-Abrasive Liquids, N. |
| Country of Origin (subj. | India |
| Current Stock | 27 |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Feet of Head (Minimum) | 10 ft |
| Flow Rate @ 1 ft of Hea. | Not Applicable |
| Flow Rate @ 10 ft of He. | 41 gpm |
| Flow Rate @ 100 ft of H. | Not Applicable |
| Flow Rate @ 15 ft of He. | 37 gpm |
| Flow Rate @ 20 ft of He. | 34 gpm |
| Flow Rate @ 30 ft of He. | 25 gpm |
| Flow Rate @ 40 ft of He. | 10 gpm |
| Flow Rate @ 5 ft of Hea. | Not Applicable |
| Flow Rate @ 80 ft of He. | Not Applicable |
| Flow Rate @ 90 ft of He. | Not Applicable |
| For Use With | Nonflammable and Nonabr. |
| For Use With Potable Sy. | No |
| GPM of Water @ 10 Ft. o. | 41 |
| GPM of Water @ 15 Ft. o. | 37 |
| GPM of Water @ 20 Ft. o. | 34 |
| GPM of Water @ 30 Ft. o. | 25 |
| GPM of Water @ 40 Ft. o. | 10 |
| GPM of Water @ 5 Ft. of. | - |
| GPM of Water @ 50 Ft. o. | - |
| GPM of Water @ 60 Ft. o. | - |
| GPM of Water @ 70 Ft. o. | - |
| GPM of Water @ 80 Ft. o. | - |
| Height | 6 3/8 in |
| Housing Material | Bronze |
| HP Required | 1/3 hp |
| Impeller Design | Semi-Open |
| Impeller Material | Bronze |
| Impeller Type | Semi Open |
| Includes | Mounting Base, Manual, . |
| Inlet | 1 in |
| Inlet (In.) | 1 in |
| Inlet Pressure | 200 psi |
| Intake and Discharge Si. | 1 in , 3/4 in |
| Intake Type | NPT |
| International Shipping | No |
| Item | Pedestal Pump |
| Length | 6 5/8 in |
| Length (Straight Wirewa. | 6 5/8 in |
| Manufacturer Warranty L. | 1 yr |
| Manufacturers Warranty . | 1 yr |
| Max. Case Pressure | 200 psi |
| Max. Pressure | 19 psi |
| Max. Specific Gravity | 1.0 |
| Maximum Feet of Head | 44 ft |
| Maximum Flow Rate | 41 gpm |
| Maximum Media Temperatu. | 200 Degrees F |
| Minimum Flow Rate | 10 gpm |
| Minimum Media Temperatu. | 40 Degrees F |
| Mpn | 2ZWY1 |
| NPSHr | 200 psi |
| Outlet | 3/4 in |
| Overall Height | 6.38 in |
| Overall Length | 6.63 in |
| Overall Width | 5.75 in |
| Phase | Three |
| Port Rotation | 4 Position |
| Priming | Manual |
| Prop 65 | WARNING: Cancer and Rep. |
| Pump Housing Material | Bronze |
| Pump Housing Material B. | BR. |
| Pumping Application | Aggressive Liquid Appli. |
| Seal Material | Buna-N |
| Seal Type | Mechanical Carbon on Ce. |
| Shaft Material | Stainless Steel, 304 St. |
| Shaft Outside Diameter | 5/8 in |
| Shaft Size | 5/8 in |
| Sized for Horsepower | 1/3 hp |
| SKU | ZO-G1467611 |
| Specific Gravity (Maxim. | 1 |
| SubCategory | Pumps |
| Suction Lift (Maximum) | Not Applicable |
| System Pressure (Maximu. | 19 psi |
| UPC | 190735242209 |
| Use with Frame Number | - |
| Wetted Material | Brass, Bronze, Buna-N, . |
| Wetted Materials | Brass, Bronze, Buna-N, . |
| Width | 5 3/4 in |
