Dayton 2ZWZ9

B007IBDF8S

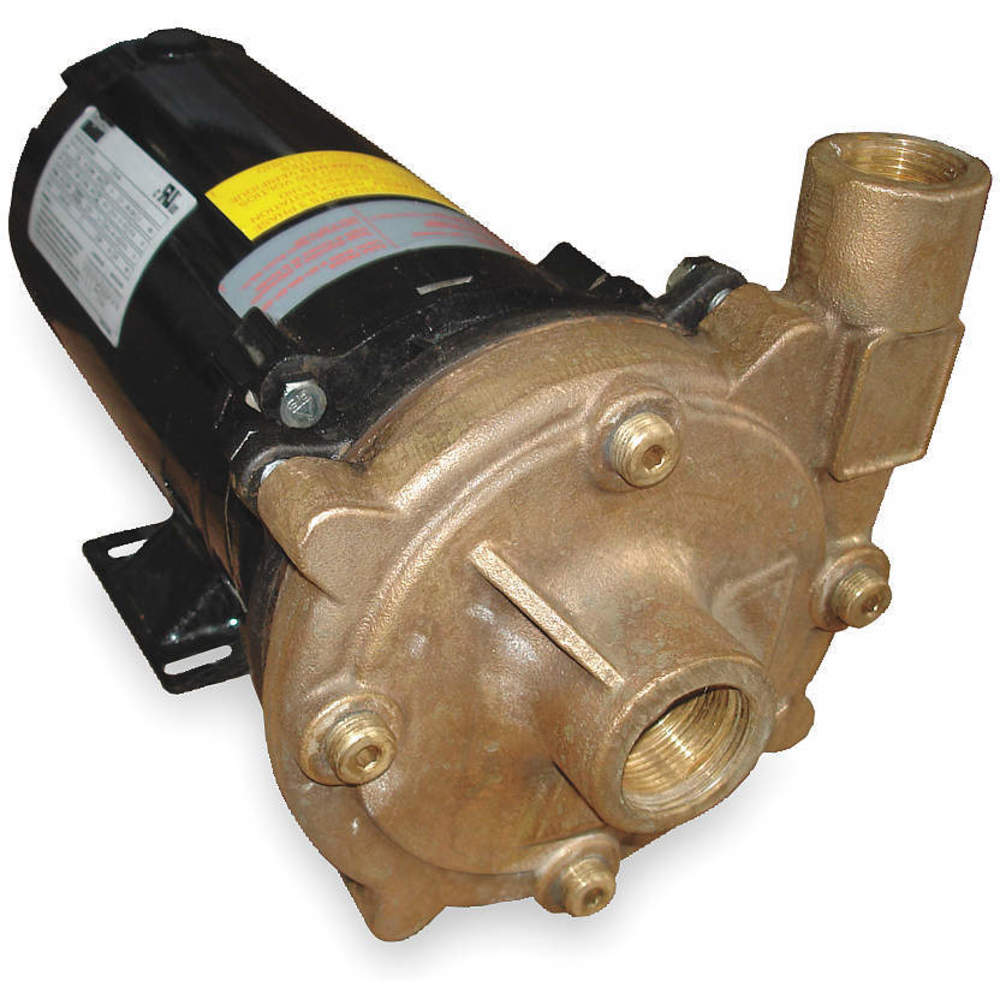

Bronze 3/4 HP Centrifugal Pump 208-230/460V

Bronze 3/4 HP Centrifugal Pump 208-230/460Vzoom

Attributes

Key Value
Agency ComplianceUL Approval in Motor
Amps2.7-2.5/1.2
Bearing TypeBall
Best Efficiency GPM @ H.33 @ 59 ft
Best Efficiency Head59 ft
BrandDayton
Compatible Intake Pipe .1 1/4 in
Compatible with Media T.Non-Flammable Liquids
Current Stock7
Discharge TypeNPT
DutyContinuous
Duty CycleContinuous
FeaturesContinuous High Pressur.
Feet of Head (Minimum)10 ft
Flow Rate @ 1 ft of Hea.Not Applicable
Flow Rate @ 100 ft of H.Not Applicable
Flow Rate @ 120 ft of H.Not Applicable
Flow Rate @ 140 ft of H.Not Applicable
Flow Rate @ 15 ft of He.51 gpm
Flow Rate @ 180 ft of H.Not Applicable
Flow Rate @ 20 ft of He.49 gpm
Flow Rate @ 200 ft of H.Not Applicable
Flow Rate @ 220 ft of H.Not Applicable
Flow Rate @ 240 ft of H.Not Applicable
Flow Rate @ 260 ft of H.Not Applicable
Flow Rate @ 280 ft of H.Not Applicable
Flow Rate @ 50 ft of He.37 gpm
Flow Rate @ 60 ft of He.32 gpm
Flow Rate @ 80 ft of He.19 gpm
For Use With Potable Sy.No
Frame56J
GPM of Water @ 10 Ft. o.53
GPM of Water @ 15 Ft. o.51
GPM of Water @ 20 Ft. o.49
GPM of Water @ 25 Ft. o.47
GPM of Water @ 30 Ft. o.46
GPM of Water @ 40 Ft. o.42
GPM of Water @ 50 Ft. o.37
GPM of Water @ 60 Ft. o.32
GPM of Water @ 70 Ft. o.27
GPM of Water @ 80 Ft. o.19
GPM of Water @ 90 Ft. o.12
Height8 1/2 in
Horsepower3/4 hp
Housing MaterialBronze
Housing Material - PumpsBronze
HP3/4
HP - Pumps3/4 hp
Hz60
Impeller MaterialStainless Steel
Impeller TypeClosed
IncludesManual
Inlet1-1/4"
Inlet Pressure200 psi
Inlet Size - Pumps1-1/4 in NPT
Intake TypeNPT
International ShippingNo
ItemCentrifugal Pump
Item - Straight Centrif.Straight Centrifugal Hi.
Length15 1/2 in
Length (Straight Wirewa.15 1/2 in
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. Case Pressure200 psi
Max. Dia. Solids5/32 in
Max. Head98 ft
Max. Liquid Temp.200 Degrees F
Max. Pressure42 psi
Max. Pressure - Pumps42 psi
Max. Specific Gravity1.0
Maximum Feet of Head98 ft
Maximum Media Temperatu.200 Degrees F
Maximum RPM3,450 RPM
Motor EnclosureODP
Motor Enclosure - PumpsOpen Dripproof
Motor Enclosure BroadODP
Motor Enclosure TypeODP
Motor Frame Designation56J
Motor RPM3,450 RPM
Motor TypeODP
Mpn2ZWZ9
Nameplate Voltage208-230/460V AC
Nominal Voltage208-230/460V AC
Outlet1"
Outlet Size - Pumps1 in NPT
Overall Height8.5 in
Overall Length15.5 in
Overall Width7.9 in
Phase3
Phase - Pumps3
Phase Broad3
Port Rotation4 Position Increments
Prop 65WARNING: Cancer and Rep.
Pump Housing Material B.Brz
Seal MaterialViton
Seal TypeMechanical
Shaft MaterialStainless Steel
Shut Off Pressure (Maxi.42 psi
SKUZO-G2134474
Solid Diameter (Maximum)0.16 in
StandardsUL Listed (Motor Only)
SubCategoryPumps
UPC190735242377
Voltage208-230/460VAC
Voltage - Pumps208 to 240/480V AC
Wetted MaterialsBronze, Brass, Viton, C.
Width8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2134474651.131In StockDayton43.95651.13 @ 1
thumbzoomsimsupply.comZO-G2134474770.4517Dayton770.45 @ 1
thumbzoomsustainablesupply.comC1740537900.561In StockDayton43.95900.56 @ 1
thumbzoomRaptor SuppliesAC4HPT1069.91849251In StockDAYTON1069.9184925 @ 1
