- mpn36VF04
- brandname: DAYTON
- manufacturername: DAYTON

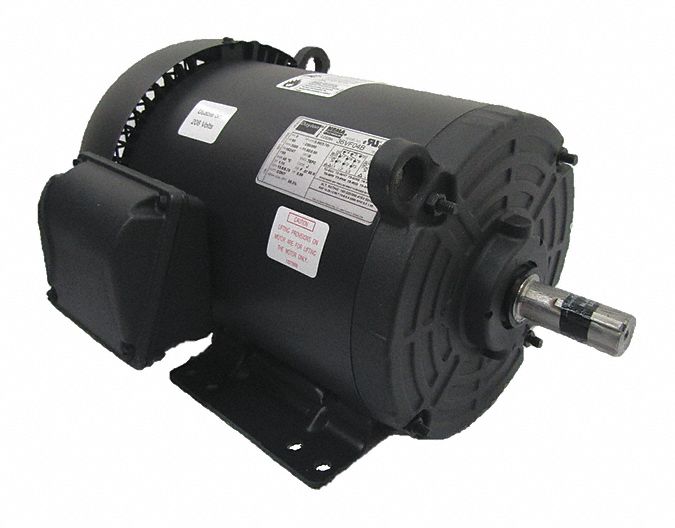

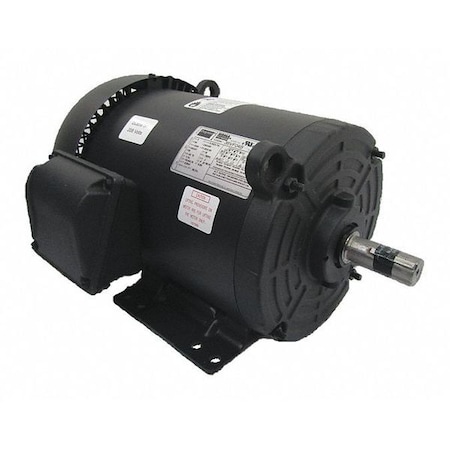

Dayton 36VF04 Motor
- Brand: Dayton
- PartNumber: 36VF04
- Model: 36VF04
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Amps | 13.0-11.8/5.9 |
| Bearings | Ball |
| Brand | Dayton |
| CC Number | CC029A |
| Current Stock | 42 |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Environmental Claim | None |
| Frame | 182/4T |
| Full Load Amps | 11.8/5.9 |
| Green Certification or . | NEMA Premium(R) Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 5 |
| Hz | 60 |
| Includes | Conduit Box |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Length Less Shaft | 15 3/16 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 15-5/32" |
| Motor Thermal Protection | None, Not Applicable |
| Mounting | Rigid |
| Mpn | 36VF04 |
| Nameplate RPM | 3500, 3,500 |
| No. of Speeds | 1 |
| Nominal Efficiency | 89.5 % |
| Number of Speeds | 1 |
| Overall Length | 17-15/16", 17 15/16 in |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 3500 |
| RPM Range | 3,001-3,600 |
| Service Factor (SF) | 1.15 |
| Shaft Dia. | 1 1/8 in |
| Shaft Diameter | 1-1/8" Keyed |
| Shaft Length | 2-3/4", 2 3/4 in |
| Ship Weight | 87 lbs. |
| SKU | ZO-G1578748 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735275375 |
| Voltage | 208-230/460V AC, 208-23. |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | sustainablesupply.com | C2776305 | 577.42 | 1 | In Stock | | Dayton | 86.7 | 577.42 @ 1 |
| Grainger | 36VF04 | 592.0 | 1 | 6 | | DAYTON | 86.7 | 592.0 @ 1 |
| AmazonTP | B01MUN9YGA | 620.34 | 1 | In Stock | 5 | DAYTON | | 620.34 @ 1 |
| AmazonUNK | B01MUN9YGA | 620.34 | 1 | In Stock | | DAYTON | | 620.34 @ 1 |
 | Zoro | G1578748 | 655.71 | 1 | In Stock | 26 | Dayton | 86.7 | 655.71 @ 1 |
| grainger.ca | WWG36VF04 | 740.48905538 | 1 | In Stock | | DAYTON | 86.7 | 740.48905538 @ 1 |
 | simsupply.com | ZO-G1578748 | 827.96 | 1 | 42 | | Dayton | | 827.96 @ 1 |
| emotorpro.com | 36VF04 | 893.56 | 1 | In Stock | | Dayton | 87.0 | 893.56 @ 1 |
 | Raptor Supplies | AH7KLT | 986.664744 | 1 | In Stock | | DAYTON | | 986.664744 @ 1 |
