- mpn36VF13
- brandname: Dayton
- manufacturername: Dayton

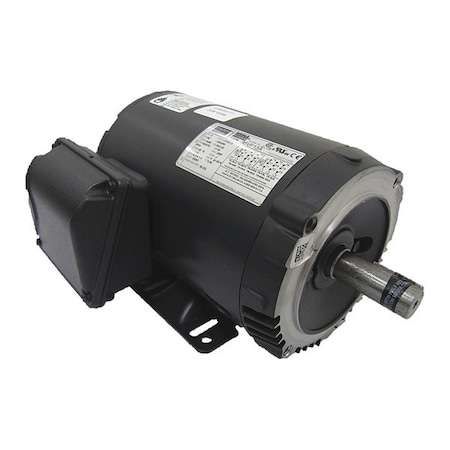

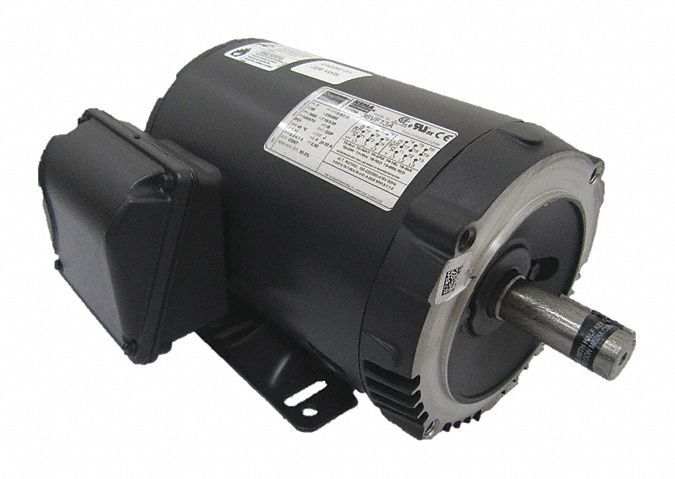

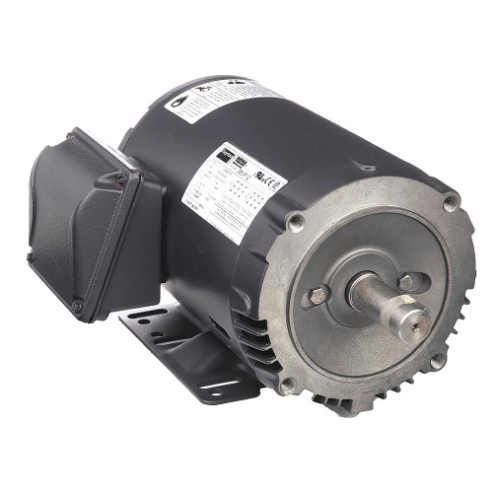

Dayton 3 HP General Purpose Motor,3-Phase,3450 Nameplate RPM,Voltage 208-230/460,Frame 143/5TC
- Brand: CAI - DAYTON
- PartNumber: 36VF13
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 7.9-7.1/3.5 |
| Bearings | Ball |
| Brand | Dayton |
| CC Number | CC029A |
| Color | Black |
| Current Stock | 3 |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Environmental Claim | None |
| Frame | 143/5TC |
| Full Load Amps | 7.1/3.5 |
| Green Certification or . | NEMA Premium(R) Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 3 |
| Hz | 60 |
| Includes | Conduit Box |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 10 1/8 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 10-1/8" |
| Motor Thermal Protection | None, Not Applicable |
| Mounting | C-Face/Rigid |
| Mpn | 36VF13 |
| Nameplate RPM | 3,450 |
| No. of Speeds | 1 |
| Nominal Efficiency | 85.5 % |
| Number of Speeds | 1 |
| Overall Length | 12 3/8 in, 12-3/8" |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 3450 |
| RPM Range | 3,001-3,600 |
| Service Factor (SF) | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 7/8" Keyed |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 42 lbs. |
| SKU | ZO-G1811050 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735275450 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1811050 | 402.99 | 1 | 11 | | Dayton | 41.75 | 402.99 @ 1 |
| AmazonTP | B072MYCV9G | 440.78 | 1 | In Stock | 4 | Dayton | | 440.78 @ 1 |
| AmazonUNK | B072MYCV9G | 440.78 | 1 | In Stock | | Dayton | | 440.78 @ 1 |
 | simsupply.com | ZO-G1811050 | 476.99 | 1 | 3 | | Dayton | | 476.99 @ 1 |
 | sustainablesupply.com | C2777189 | 536.87 | 1 | In Stock | | Dayton | 41.75 | 536.87 @ 1 |
| grainger.ca | WWG36VF13 | 605.13349444 | 1 | In Stock | | DAYTON | 41.75 | 605.13349444 @ 1 |
 | Raptor Supplies | AH7KMB | 614.408418 | 1 | In Stock | | DAYTON | | 614.408418 @ 1 |
| emotorpro.com | 36VF13 | 615.95 | 1 | In Stock | | Dayton | 42.0 | 615.95 @ 1 |
