CAI - DAYTON 36VF18

B07J2B3838

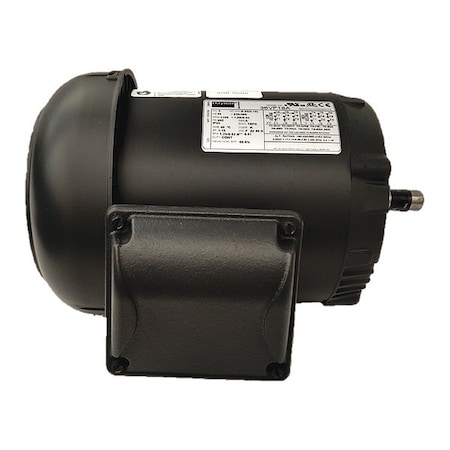

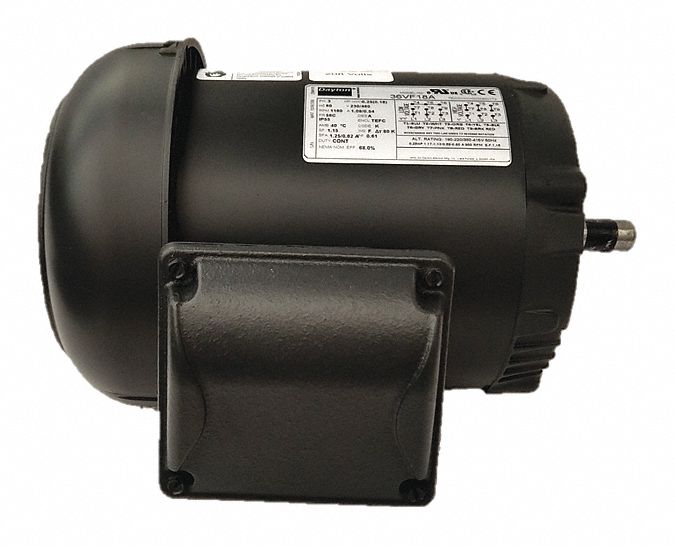

Dayton 1/4 HP General Purpose Motor,3-Phase,1160 Nameplate RPM,Voltage 208-230/460,Frame 56C

Dayton 1/4 HP General Purpose Motor,3-Phase,1160 Nameplate RPM,Voltage 208-230/460,Frame 56Czoom

Attributes

Key Value
Amps1.2-1.0/0.55
BearingsBall
BrandDayton
Current Stock3
Duty CycleContinuous
Efficiency68%
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Frame56C
Green Certification or .NEMA Premium Rated
HP1/4
Hz60
Insulation ClassF
International ShippingNo
ItemGeneral Purpose Motor
Length Less Shaft9 5/16 in
Manufacturers Warranty .1 yr
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Diameter6-1/2"
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length9-9/32"
Motor Thermal ProtectionNone
MountingC-Face/Rigid
Mpn36VF18
Nameplate RPM1,160
Number of Speeds1
Overall Length11-1/8", 11 1/8 in
Phase3
Product Type3 Phase
RotationReversible
RPM1160
RPM Range1,101-1,200
Service Factor (SF)1.15
Shaft Dia.5/8 in
Shaft Diameter5/8" Keyed
Shaft Length1-7/8", 1 7/8 in
Ship Weight25 lbs.
SKUZO-G1811041
StandardsCE, CSA, UL
SubCategoryMotors/Ac Motors
Thermal ProtectionNone
UPC190735275504
Voltage230/460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1811041229.9911Dayton24.1229.99 @ 1
thumbzoomsimsupply.comZO-G1811041266.5713Dayton266.57 @ 1
thumbzoomsustainablesupply.comC2776967306.091In StockDayton24.1306.09 @ 1
emotorpro.com36VF18332.891In StockDayton25.0332.89 @ 1
thumbzoomRaptor SuppliesAH7KMG339.7190941In StockDAYTON339.719094 @ 1
