CAI - DAYTON 36VF42

B07J24415J

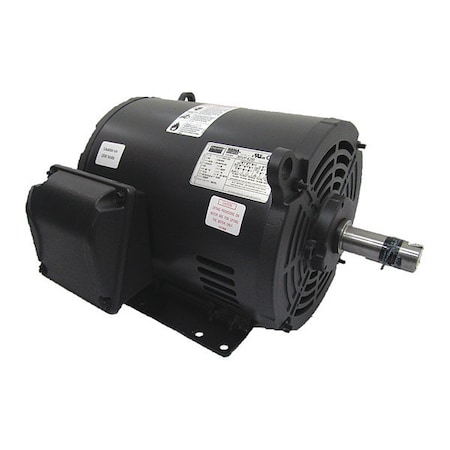

Dayton 10 HP General Purpose Motor,3-Phase,3535 Nameplate RPM,Voltage 230/460,Frame 213/5T

Dayton 10 HP General Purpose Motor,3-Phase,3535 Nameplate RPM,Voltage 230/460,Frame 213/5Tzoom

Attributes

Key Value
Amps25.7-23.3/11.6
BearingsBall
BrandDayton
CC NumberCC029A
Current Stock9
Duty CycleContinuous
Efficiency89.5%
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof)
Environmental ClaimNone
Frame213/5T
Full Load Amps23.3/11.6
Green Certification or .NEMA Premium(R) Rated
Green Environmental Att.Product Contributes To .
HP10
Hz60
IncludesConduit Box
Ins. ClassF
Insulation ClassF
International ShippingNo
Inverter RatedYes
ItemGeneral Purpose Motor
Lead TimeExpected to ship in 1-2.
Length Less Shaft13 5/8 in
Manufacturers Warranty .1 yr
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length13-19/32"
Motor Thermal ProtectionNot Applicable
MountingRigid
Mpn36VF42
Nameplate RPM3,535
No. of Speeds1
Nominal Efficiency89.5 %
Number of Speeds1
Overall Length16", 16 in
Phase3, Three
Product Type3 Phase
RotationReversible
RPM3535
Service Factor (SF)1.15
Shaft Dia.1 3/8 in
Shaft Diameter1-3/8" Keyed
Shaft Length3 3/8 in, 3-3/8"
Ship Weight121 lbs.
SKUZO-G1578617
StandardsCE, CSA, UL
SubCategoryMotors/Ac Motors
Thermal ProtectionNone
UPC190735275740
Voltage230/460V AC
Volts208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1578617891.751In StockDayton121.0891.75 @ 1
simsupply.comZO-G15786171089.9519Dayton1089.95 @ 1
grainger.caWWG36VF421121.196076561In StockDAYTON121.01121.19607656 @ 1
thumbzoomsustainablesupply.comC29795801121.581In StockDayton121.01121.58 @ 1
emotorpro.com36VF421124.71In StockDayton121.01124.7 @ 1
thumbzoomRaptor SuppliesAH7KNG1383.1228711In StockDAYTON1383.122871 @ 1
