CAI - DAYTON 36VF46

B07J28SXDG

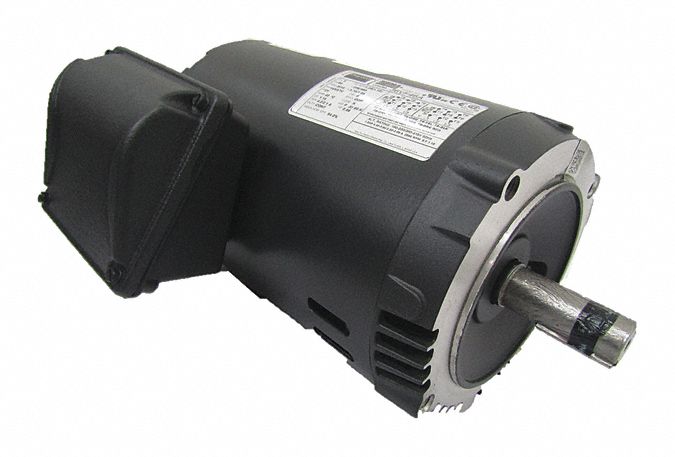

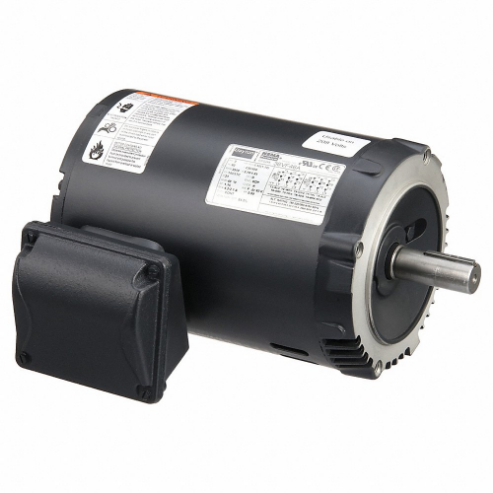

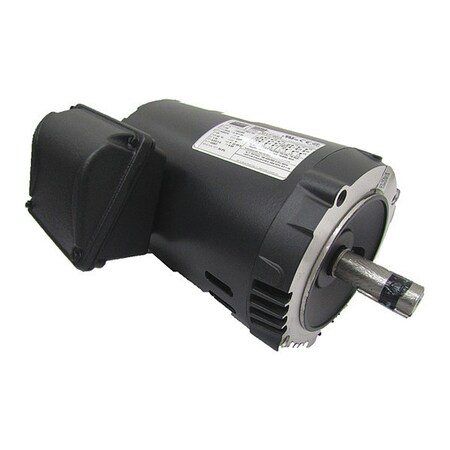

Dayton 1-1/2 HP General Purpose Motor,3-Phase,3465 Nameplate RPM,Voltage 230/460,Frame 143/5TC

Dayton 1-1/2 HP General Purpose Motor,3-Phase,3465 Nameplate RPM,Voltage 230/460,Frame 143/5TCzoom

Attributes

Key Value
Amps4.1-3.7/1.8
BearingsBall
Duty CycleContinuous
Efficiency84%
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof)
Frame143/5TC
HP1 1/2, 1-1/2
Hz60
IncludesConduit Box
Insulation ClassF
ItemGeneral Purpose Motor
Length Less Shaft9 3/8 in
Manufacturers Warranty .1 yr
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length9-11/32"
Motor Thermal ProtectionNone
MountingC-Face
Nameplate RPM3,465
Number of Speeds1
Overall Length11-9/16", 11 9/16 in
Phase3
Product Type3 Phase
RotationReversible
RPM3465
RPM Range3,001-3,600
Service Factor (SF)1.15
Shaft Dia.7/8 in
Shaft Diameter7/8" Keyed
Shaft Length2 1/4 in, 2-1/4"
Ship Weight31 lbs.
StandardsCE, CSA, UL
Thermal ProtectionNone
Voltage230/460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1860461315.9911Dayton31.0315.99 @ 1
thumbzoomsustainablesupply.comC2777118420.71In StockDayton31.0420.7 @ 1
emotorpro.com36VF46445.061In StockDayton31.0445.06 @ 1
thumbzoomRaptor SuppliesAH7KNL477.1978381In StockDAYTON477.197838 @ 1
