- mpn36VF50
- brandname: Dayton
- manufacturername: Dayton

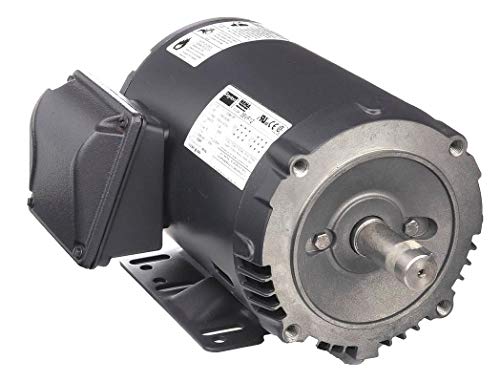

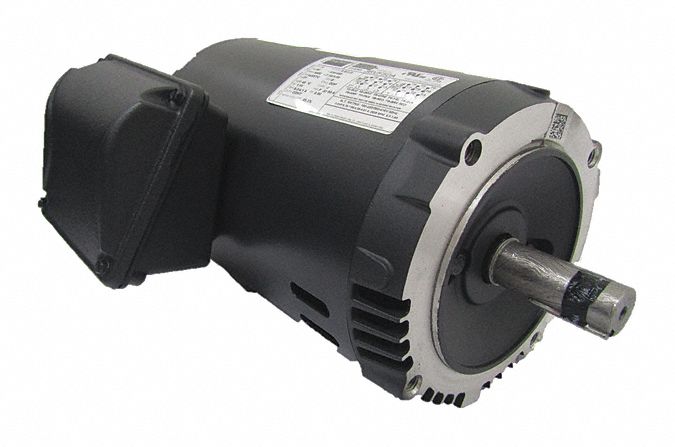

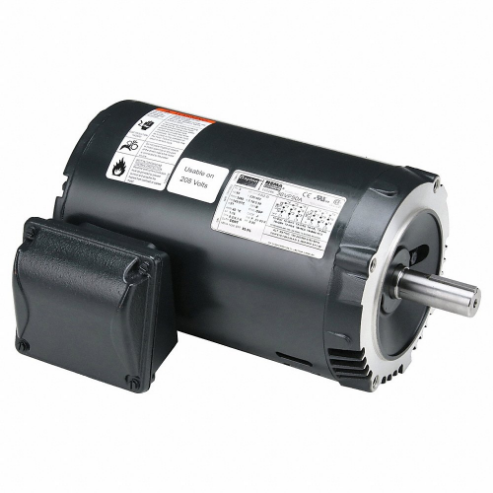

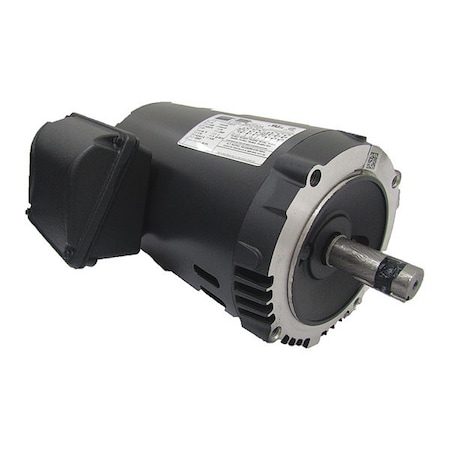

Dayton 3 HP General Purpose Motor,3-Phase,3475 Nameplate RPM,Voltage 230/460,Frame 143/5TC
- Brand: CAI - DAYTON
- PartNumber: 36VF50
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 8.1-7.3/3.6 |
| Bearings | Ball |
| Brand | Dayton |
| Capacitor Required | No |
| CC Number | CC029A |
| Country of Origin (subj. | Mexico |
| Current Stock | 3 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Environmental Claim | None |
| Footnotes | 2, 15, 53 |
| Frame | 143/5TC |
| Frame Material | Rolled Steel |
| Full Load Amps | 7.3/3.6 |
| Green Certification or . | NEMA Premium Rated, NEM. |
| Green Environmental Att. | Product Contributes To . |
| HP | 3 |
| Hz | 60 |
| Includes | Conduit Box |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Length Less Shaft | 9 3/4 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 9-23/32" |
| Motor Thermal Protection | None, Not Applicable |
| Mounting | C-Face |
| Mpn | 36VF50 |
| Nameplate RPM | 3,475 |
| No. of Speeds | 1 |
| Nominal Efficiency | 85.5 % |
| Number of Speeds | 1 |
| Overall Length | 12", 12 in |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 3475 |
| RPM Group | 3001-3600 |
| RPM Range | 3,001-3,600 |
| Service Factor (SF) | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 7/8" Keyed |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 38 lbs. |
| SKU | ZO-G1860446 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735275825 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1860446 | 391.4 | 1 | In Stock | | Dayton | 37.8 | 391.4 @ 1 |
 | simsupply.com | ZO-G1860446 | 456.87 | 1 | 3 | | Dayton | | 456.87 @ 1 |
 | sustainablesupply.com | C2777331 | 514.34 | 1 | In Stock | | Dayton | 37.8 | 514.34 @ 1 |
| grainger.ca | WWG36VF50 | 577.10286672 | 1 | In Stock | | DAYTON | 37.8 | 577.10286672 @ 1 |
| emotorpro.com | 36VF50 | 580.34 | 1 | In Stock | | Dayton | 38.0 | 580.34 @ 1 |
 | Raptor Supplies | AH7KNQ | 587.2009455 | 1 | In Stock | | DAYTON | | 587.2009455 @ 1 |
