- mpn36VF54
- brandname: DAYTON
- manufacturername: DAYTON

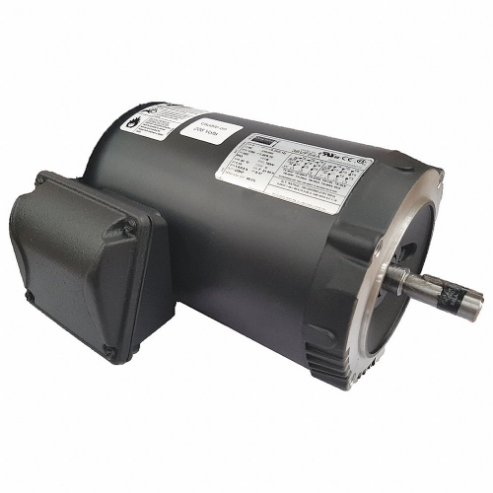

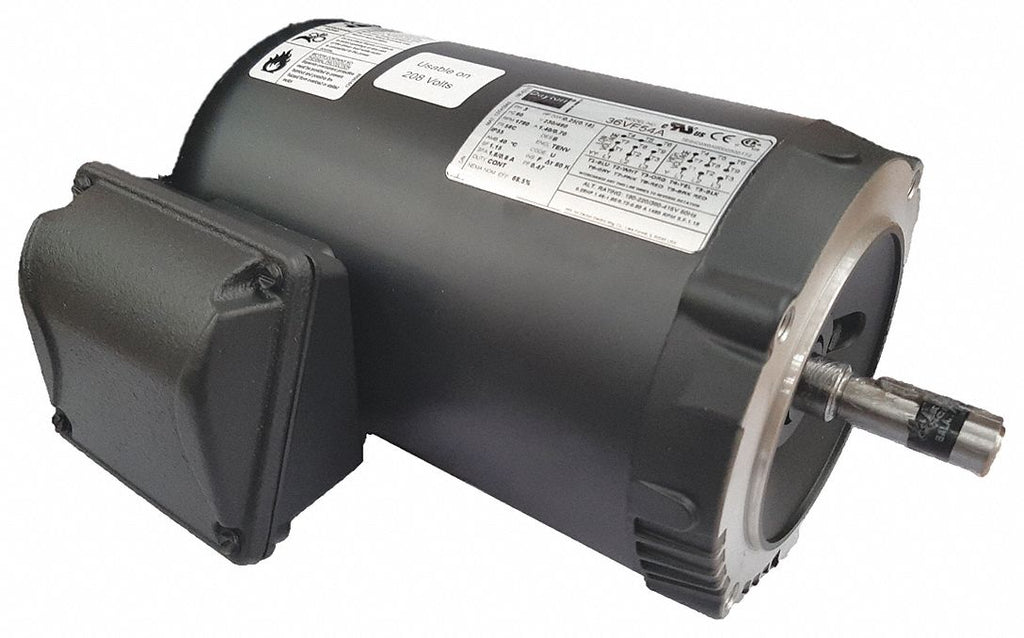

DAYTON 36VF54 GP Motor,TENV,1/4 HP,1780 rpm,5/8in dia. G0692155
- Brand: Dayton
- PartNumber: 36VF54
- PackageQuantity: 1
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Amps | 1.60-1.40/0.70 |
| Bearings | Ball |
| Brand | Dayton |
| Duty Cycle | Continuous |
| Efficiency | 68.5% |
| Enclosure Material | Steel |
| Enclosure Type | TENV (Totally Enclosed . |
| Environmental Claim | None |
| Frame | 56C |
| Full Load Amps | 1.40/0.70 |
| Green Environmental Att. | Product Contributes To . |
| HP | 1/4 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Length Less Shaft | 8 7/8 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Diameter | 6-1/2" |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Nonven. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 8-27/32" |
| Motor Thermal Protection | None, Not Applicable |
| Mounting | C-Face/Rigid |
| Mpn | 36VF54 |
| Nameplate RPM | 1,780 |
| No. of Speeds | 1 |
| Nominal Efficiency | 68.5 % |
| Number of Speeds | 1 |
| Overall Length | 10 11/16 in, 10-11/16" |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1780 |
| RPM Range | 1,701-1,800 |
| Service Factor (SF) | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Diameter | 5/8" Keyed |
| Shaft Length | 1-7/8", 1 7/8 in |
| Ship Weight | 25 lbs. |
| SKU | ZO-G0692155 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735275863 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0692155 | 217.99 | 1 | In Stock | | Dayton | 24.9 | 217.99 @ 1 |
 | simsupply.com | ZO-G0692155 | 249.81 | 1 | In Stock | | Dayton | | 249.81 @ 1 |
 | sustainablesupply.com | C2878343 | 289.65 | 1 | In Stock | | Dayton | 24.9 | 289.65 @ 1 |
| grainger.ca | WWG36VF54 | 317.99012472 | 1 | In Stock | | DAYTON | 24.9 | 317.99012472 @ 1 |
| emotorpro.com | 36VF54 | 329.34 | 1 | In Stock | | Dayton | 25.0 | 329.34 @ 1 |
 | Raptor Supplies | AH7KNV | 332.07642 | 1 | In Stock | | DAYTON | | 332.07642 @ 1 |
