- mpn36VF57
- brandname: DAYTON
- manufacturername: DAYTON

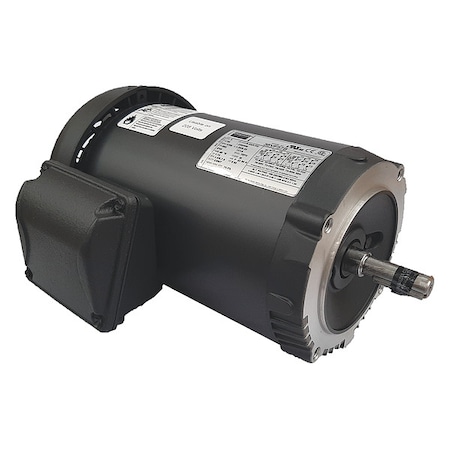

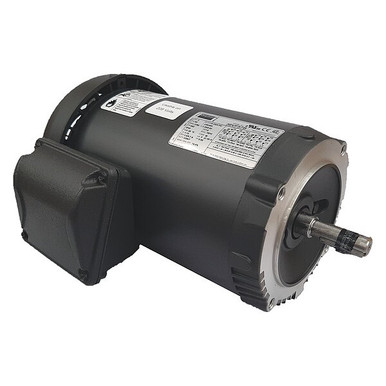

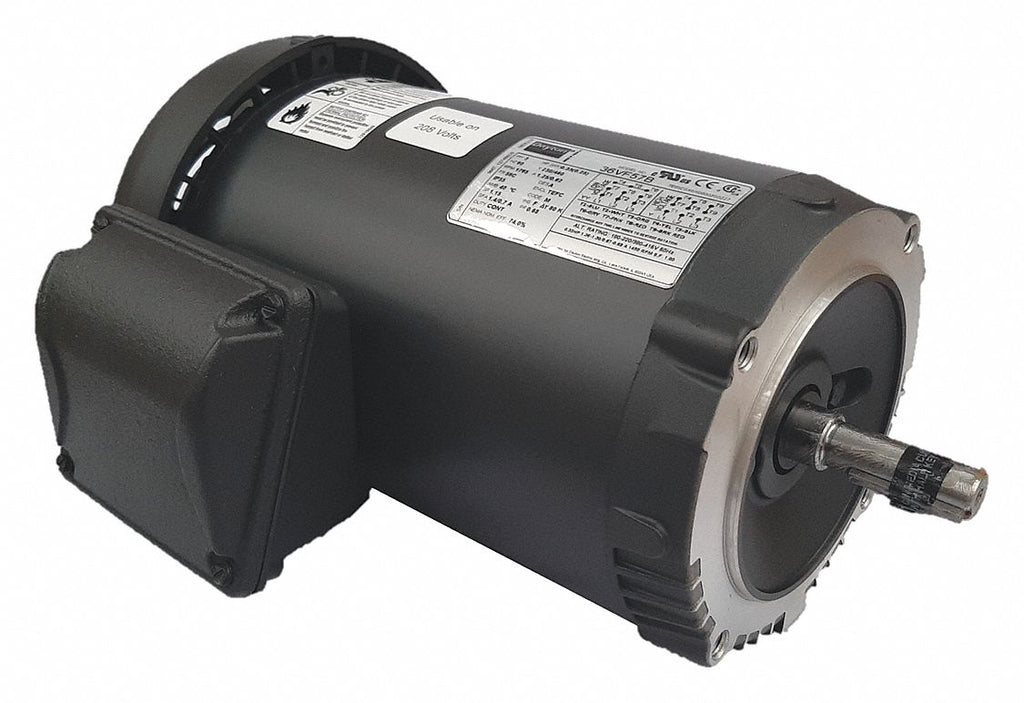

GP Motor, TEFC, 1/3 HP, 1765 RPM, Belt Drive
- Brand: Dayton
- PartNumber: 36VF57
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Amps | 1.3-1.2/0.62 |
| Bearings | Ball |
| Brand | Dayton |
| Capacitor Required | No |
| Country of Origin (subj. | Mexico |
| Current Stock | 2 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Environmental Claim | None |
| Footnotes | 2, 15, 57 |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Full Load Amps | 1.20/0.62 |
| Green Certification or . | NEMA Premium Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 1/3 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Length Less Shaft | 9 11/16 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Diameter | 6-1/2" |
| Motor Efficiency Group | Standard Efficient, Ene. |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 9-21/32" |
| Motor Thermal Protection | None, Not Applicable |
| Mounting | C-Face |
| Mpn | 36VF57 |
| Nameplate RPM | 1,765 |
| No. of Speeds | 1 |
| Nominal Efficiency | 74 % |
| Number of Speeds | 1 |
| Overall Length | 11-9/16", 11 9/16 in |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1765 |
| RPM Group | 1701-1800 |
| RPM Range | 1,701-1,800 |
| Service Factor (SF) | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Diameter | 5/8" Keyed |
| Shaft Length | 1-7/8", 1 7/8 in |
| Ship Weight | 24 lbs. |
| SKU | ZO-G0692146 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735275894 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0692146 | 235.57 | 1 | In Stock | | Dayton | 23.8 | 235.57 @ 1 |
 | simsupply.com | ZO-G0692146 | 279.37 | 1 | 2 | | Dayton | | 279.37 @ 1 |
| grainger.ca | WWG36VF57 | 287.37562764 | 1 | In Stock | | DAYTON | 23.8 | 287.37562764 @ 1 |
| emotorpro.com | 36VF57 | 307.98 | 1 | In Stock | | Dayton | 24.0 | 307.98 @ 1 |
 | sustainablesupply.com | C2878320 | 313.89 | 1 | In Stock | | Dayton | 23.8 | 313.89 @ 1 |
 | Raptor Supplies | AH7KNY | 348.3785565 | 1 | In Stock | | DAYTON | | 348.3785565 @ 1 |
