- mpn36VF64
- brandname: DAYTON
- manufacturername: DAYTON

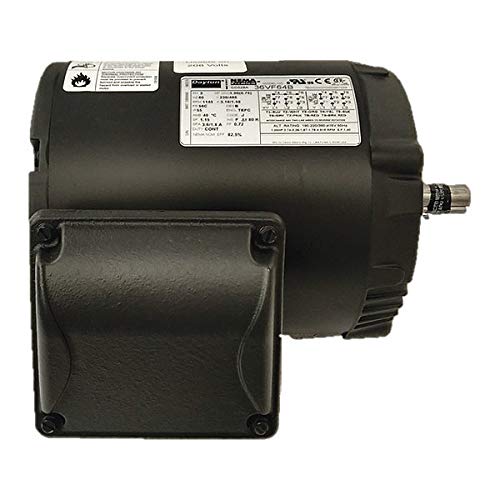

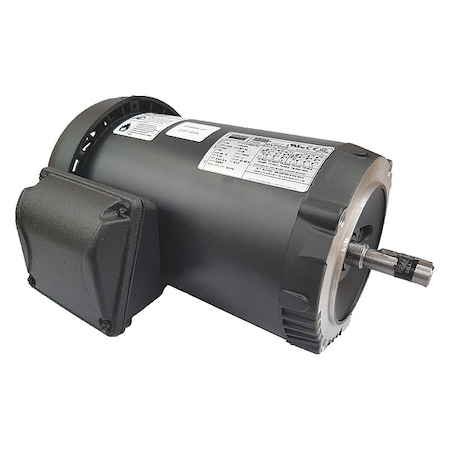

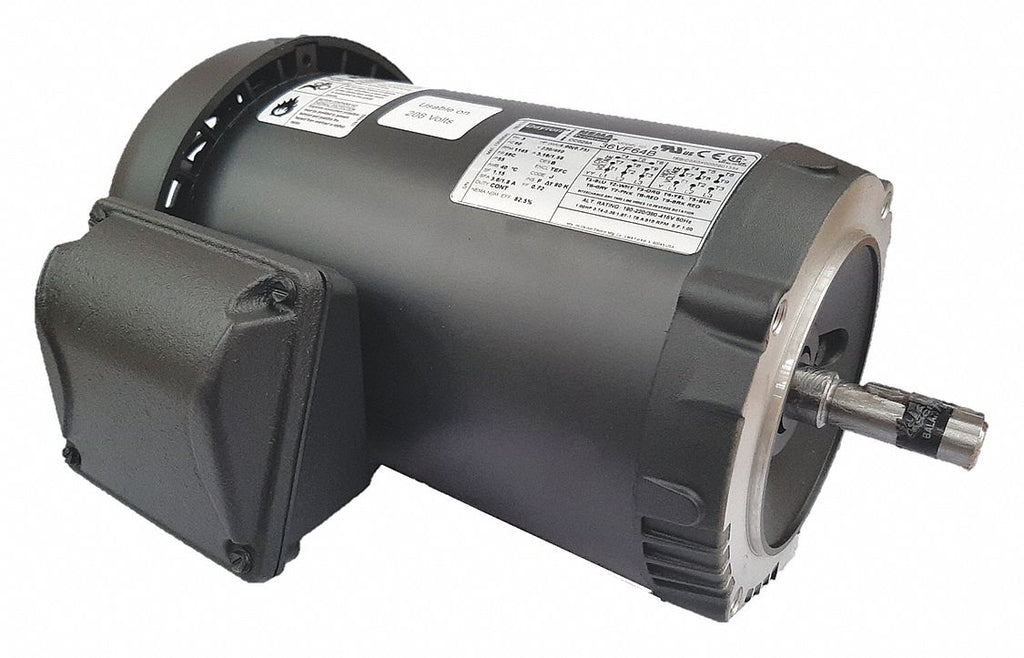

GP Motor, TEFC, 1 HP, 1145 rpm, Belt Drive
- Brand: Dayton
- PartNumber: 36VF64
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: DAYTON
- Label: DAYTON
Attributes
| Key | Value |
|---|
| Amps | 3.6-3.3/1.6 |
| Bearings | Ball |
| Brand | Dayton |
| Capacitor Required | No |
| CC Number | CC029A |
| Country of Origin (subj. | Mexico |
| Current Stock | 9 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Footnotes | 2, 15, 56 |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Full Load Amps | 3.3/1.60 |
| Green Certification or . | NEMA Premium Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 1 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 11 5/8 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Diameter | 6-1/2" |
| Motor Efficiency Group | Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 11-5/8" |
| Motor Thermal Protection | None |
| Mounting | C-Face |
| Mpn | 36VF64 |
| Nameplate RPM | 1,145 |
| No. of Speeds | 1 |
| Nominal Efficiency | 82.5 % |
| Number of Speeds | 1 |
| Overall Length | 13 1/2 in, 13-1/2" |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1145 |
| RPM Group | 1101-1200 |
| RPM Range | 1,101-1,200 |
| Service Factor (SF) | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Diameter | 5/8" Keyed |
| Shaft Length | 1-7/8", 1 7/8 in |
| Ship Weight | 38 lbs. |
| SKU | ZO-G0692076 |
| Standards | CE, CSA, UL |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735275962 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0692076 | 357.94 | 1 | In Stock | | Dayton | 38.0 | 357.94 @ 1 |
| simsupply.com | ZO-G0692076 | 415.45 | 1 | 9 | | Dayton | | 415.45 @ 1 |
 | sustainablesupply.com | C2776739 | 467.04 | 1 | In Stock | | Dayton | 38.0 | 467.04 @ 1 |
| emotorpro.com | 36VF64 | 530.5 | 1 | In Stock | | Dayton | 38.0 | 530.5 @ 1 |
 | Raptor Supplies | AH7KPE | 537.601779 | 1 | In Stock | | DAYTON | | 537.601779 @ 1 |
